Egg processing line

Name:303B Duck egg processing line

Product Code:303B

Capacity:20,000 eggs/hour

Function:Water bath double line loading, washing, drying, candling, grading & counting and manual collection conveyor



Details

Features:

  • Made of strong stainless steel for great durability and hygiene.

  • ZENYER 303B duck egg processing line is comprised of ZENYER 203B egg washer, 107A main machine,and includes double lines water bath loading, washing,drying,candling, automatic head turning,grading & counting, auto-packer, manual collection conveyor and optional egg printer , it can reach maximum capacity of 20,000eggs/hour.

  • This loading method of the egg washer not only saves time but also minimizes egg cracks by using buoyancy.

  • Equipped with colour touchscreen PLC and self-diagnose grading system and can sort eggs into 4 grades with accuracy ±1g.

  • The 303B duck egg processing line is specially designed for fresh duck eggs, salted eggs or preserved egg processing.


Commodity Duck egg processing line
Product code 303B
Model ZYL-YS2-DAS6-3ZP
Capacity 20,000 eggs/hour
Material Stainless steel
Power 18KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 15.4*5.6 *2 M
Net weight 3700KG
Gross weight 4750KG
Function Water bath double line loading, washing,drying,
candling, grading & counting,auto-packing,
manual collection conveyor and optional printer

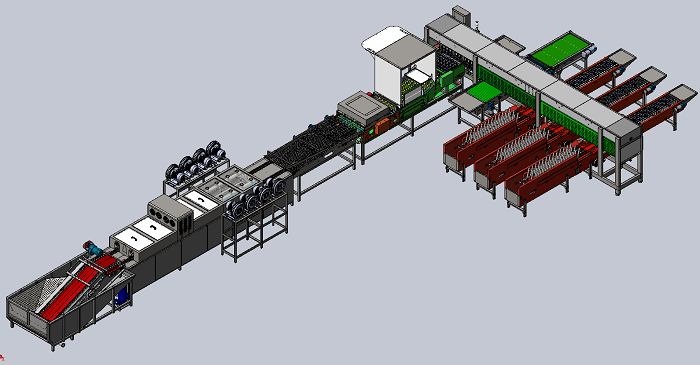

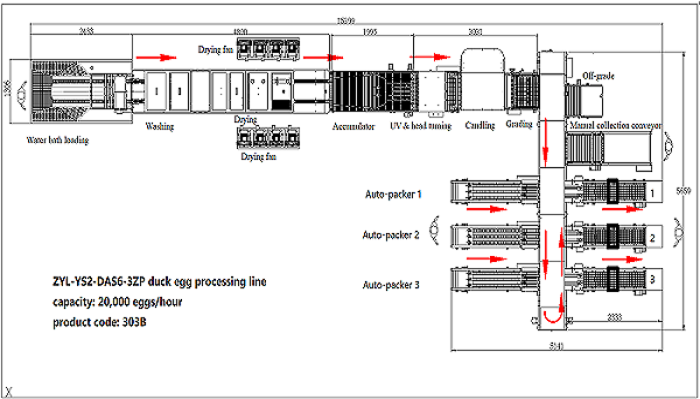

ZENYER 303B Duck egg processing line




Water bath with double line loading


Egg washing with brushes


Automatic head turning




Egg grading (electronic sensor weighing) & counting


Automatic packing

Manual collection conveyor


The 406H Egg printer for option

For ZENYER 303B Duck egg processing line : Only USD136,264.00

consist of :

  • Water bath with double line loading

  • Egg washing & drying

  • Accumulator & candling & grading & counting

  • Auto-packer (3 units )
  • Manual packing lane ( 1 unit)


(Pre-order)



303B Duck egg processing line Brochure
