Farm packer

Name:710C Farm packer

Product Code:710C

Capacity:10,000eggs/hour

Function:accumulator, head turning, ramp loading, automatic packing



Details



Features:

  • Designed to connect the rod conveyor from chicken shed and pack eggs into 5*6 egg tray automatically.
  • Includes accumulator, head turning, ramp tray loading, automatic packing all in one machine.

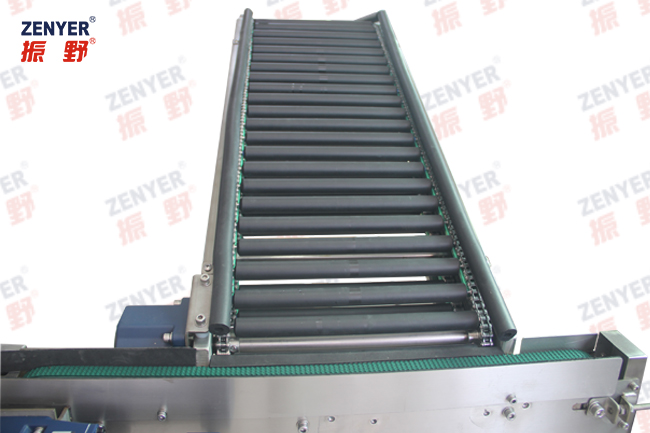

  • The eggs from the rod conveyor flow into the accumulator directly, the slope of accumulator can be adjusted according the height of rod conveyor.
  • Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for longer storage before getting packed.
  • Can operate by one person only, who can load empty trays and collect the loaded egg trays.
  • Pack eggs into 5*6 tray automatically with capacity of 10000 eggs/hour.
  • It has a counting function as well, you can check how many eggs have been packed.
  •  It has NOT a grading function.
Commodity Farm packer
Product code 710C
Model ZYZ-DA1
Capacity 10,000 eggs/hour
Material Stainless steel
Power 2.2KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 4.07*3.55*2M
Net weight 450KG
Gross weight 650KG
Function Accumulator,automatic head turning,ramp tray loading, auto-packing (for 5*6 tray only) & counting

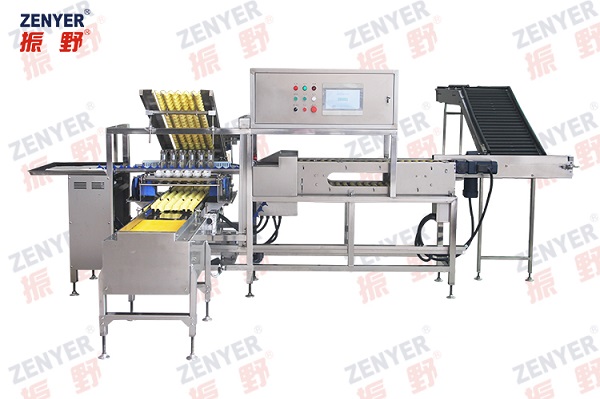

ZENYER 710C egg farm packer

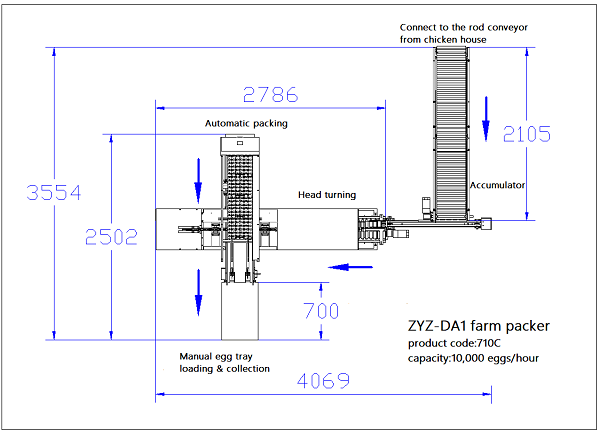

ZENYER 710C egg farm packer floor plan

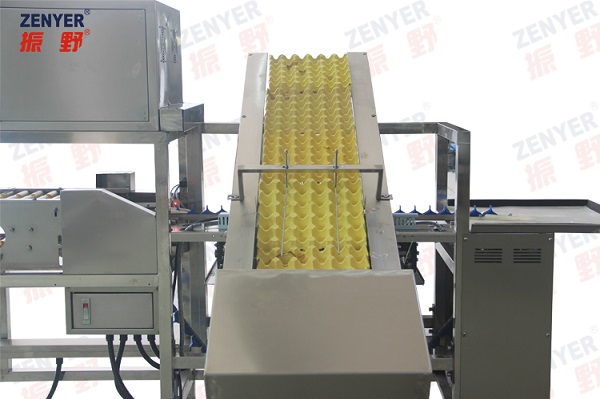

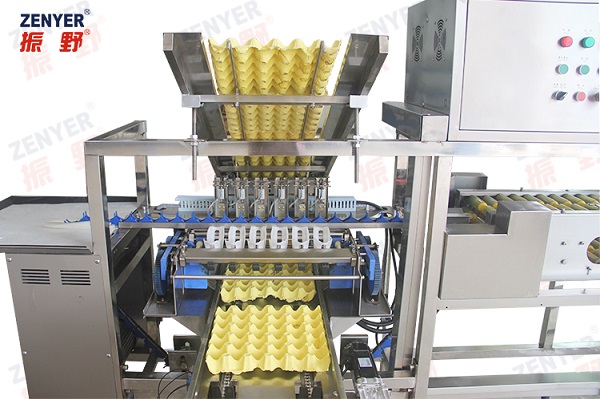

Ramp loading

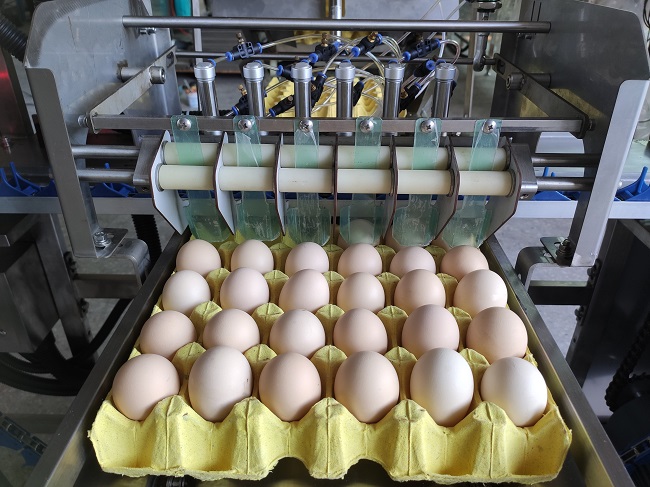

Automatic packing eggs into 5*6 tray



For ZENYER 710C Farm packer  : Only USD19,780.00


(Pre-order)



710C Farm packer Brochure
