Function：Robotic stacking 6 egg trays into a uniform stack
Details
Features:

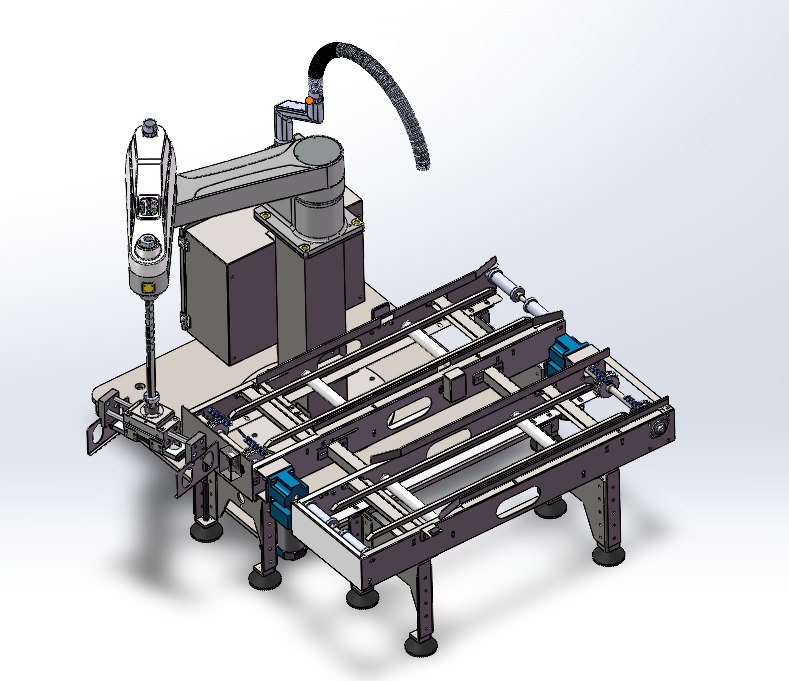

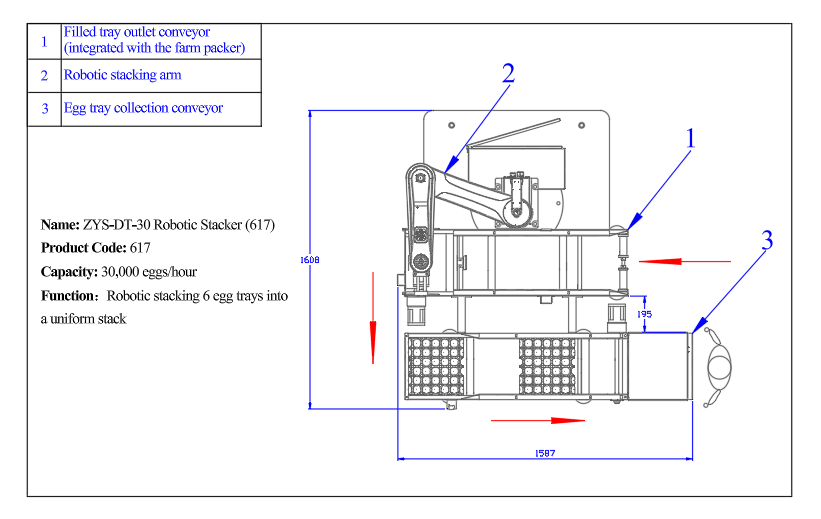

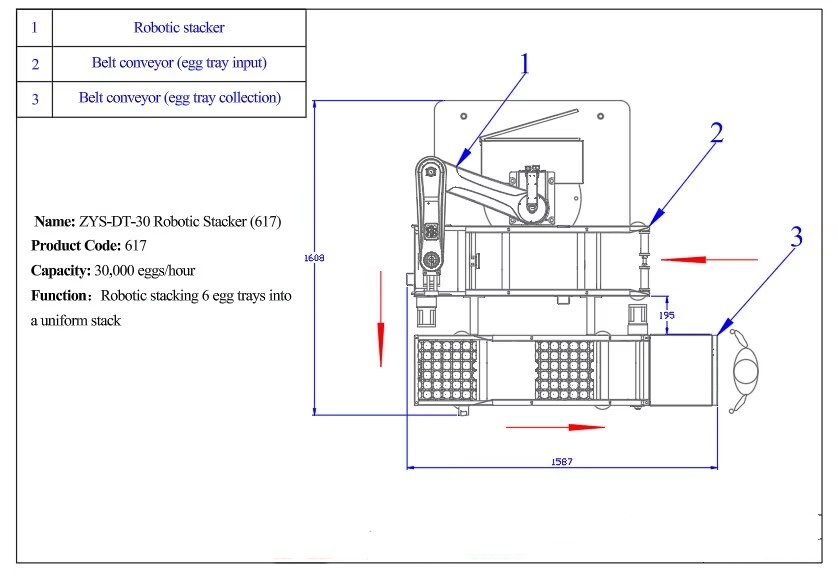

The ZENYER 617 robotic egg tray stacking system is an automated solution designed to integrate seamlessly with egg farm packers, consist of a robotic arm, two belt conveyors, an HMI touchscreen control panel and a safety net guard.
Operators can easily manage the system using an intuitive HMI touchscreen. It boasts a capacity of 30,000 eggs per hour and offers several benefits:
Increased egg collection efficiency
Reduced labor costs
Precision positioning and gentle handling
Reduced egg breakage rate
Automatic overflow alarm and stop
The ZENYER 617 robotic stacker is an ideal solution for egg tray stacking at the tail of a farm packer, particularly when collecting eggs from medium to large-sized egg farms.
Commodity
Robotic stacker
Product code
617
Model
ZYS-DT-30
Capacity
1,000 trays/hour
30,000 eggs/hour
Power
2.17KW (Exclude air compressor)
Voltage
220V,50HZ,Single phase /
380V, 50HZ, 3-phase
Air compressor
3KW (recommended)
Control panel
HIM touchscreen
Design purpose
Designed to integrate seamlessly with egg farm packer
Function
Robotic stacking 6 egg trays into a uniform stack
For ZENYER 617 Robotic stacker : Only CNY153,000.00
