Egg lifter & loader

Name：ZYS-SD-30 Robotic Loader (618)

Product Code：618

Capacity：24,000 eggs/hour

Function：Robotic loading 30 eggs per time onto the belt conveyor,Empty tray nesting



Details

  • High-Capacity Automatic Egg Loading

The ZENYER 618 robotic egg loader efficiently transfers eggs from trays to belt conveyors, with a capacity of 24,000 eggs/hour.

  • Complete System Configuration

The ZENYER 618 Robotic Egg Loader includes:

• Robotic 30-egg lifter arm
• Stack-tray conveyor for feeding tray stacks
• Empty tray collection conveyor with de-nester
• HMI touchscreen control panel for intuitive operation and settings adjustment
• Safety net guard for secure, safe operation

  • Space-Saving Compact Design

This is ideal for further egg handling such as washing, grading or packing eggs that are sourced from outside farms. This compact designed loader is significantly save your space of your grading room.

  • Improved Efficiency & Lower Labor Costs

As an essential part of modern egg production, it significantly boosts productivity and reduces labor expenses. By automating the egg loading process, the need for manual labor is reduced, leading to notable cost savings. Additionally, robotic egg loaders can handle large volumes of eggs at high speeds, significantly increasing throughput compared to manual loading methods.

  • Simple & Intelligent Operation
​Operators only need to place stacked egg trays on the Stack-tray conveyor , the robot automatically completes tray removal and egg transfer.The robotic arm then picks up both the egg tray and the eggs, places the empty tray into the  Empty tray collection conveyor ,and finally deposits the eggs onto the belt conveyor. This completes one full working cycle.
  • Smart Identification

If a tray contains any remaining eggs, it will not be nested automatically and must be collected manually at the end of the conveyor.

Commodity Robotic loader
Product code 618
Model ZYS-SD-30
Capacity 24,000  eggs/hour
Power 2.126KW (Exclude air compressor)
Voltage 220V,50HZ,Single phase /
380V, 50HZ, 3-phase
Function Robotic loading 30 eggs per time onto the belt conveyor,
automatic egg loading and empty tray nesting.

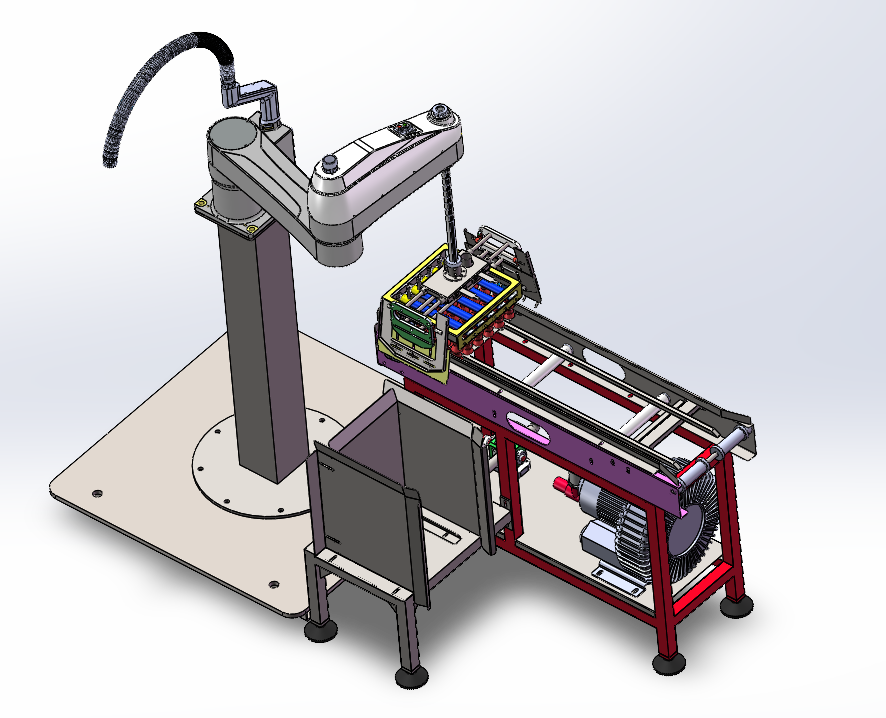

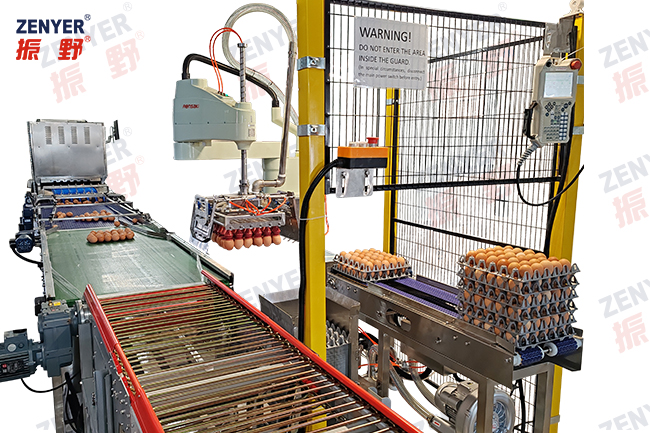

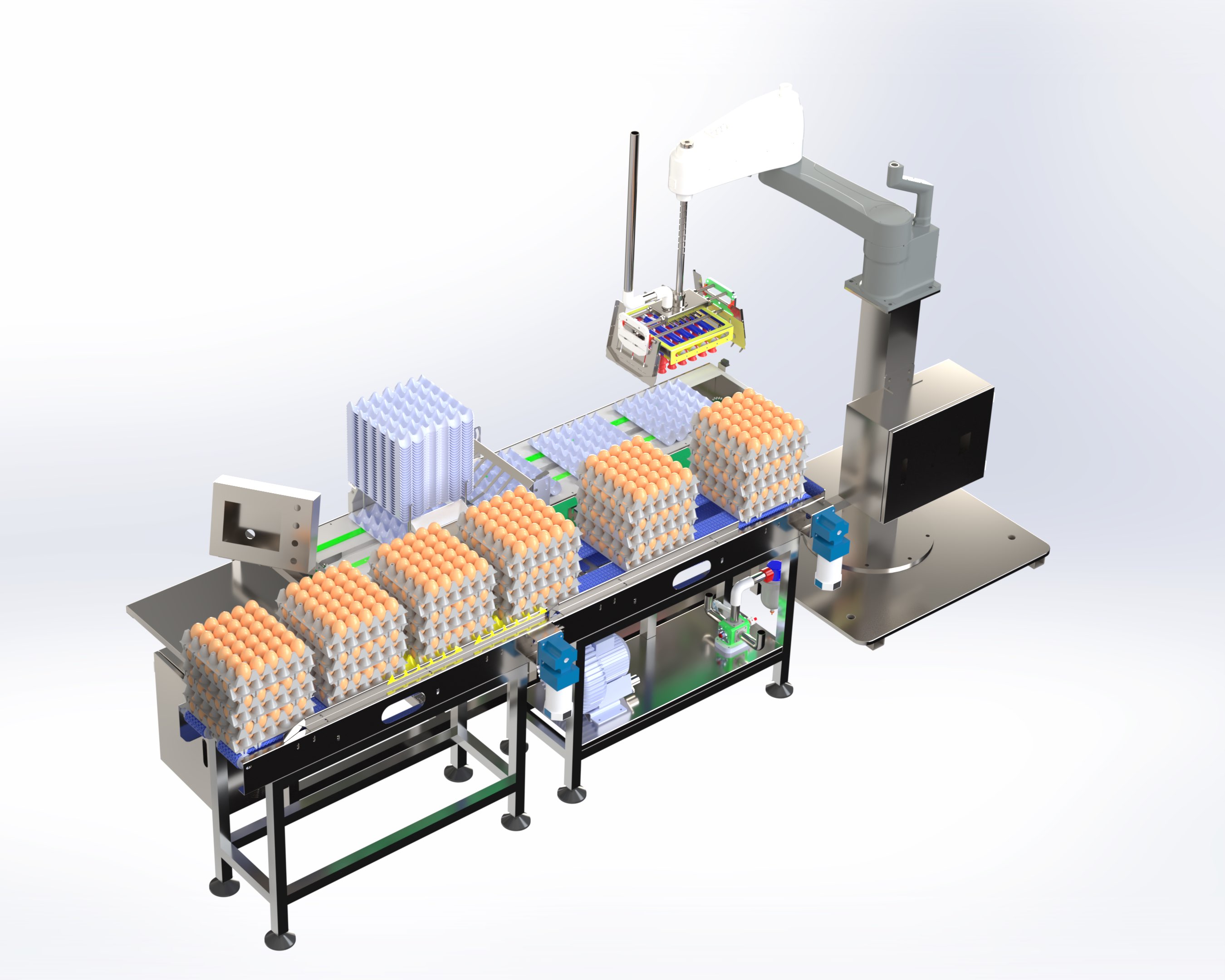

ZENYER 618 Robotic loader

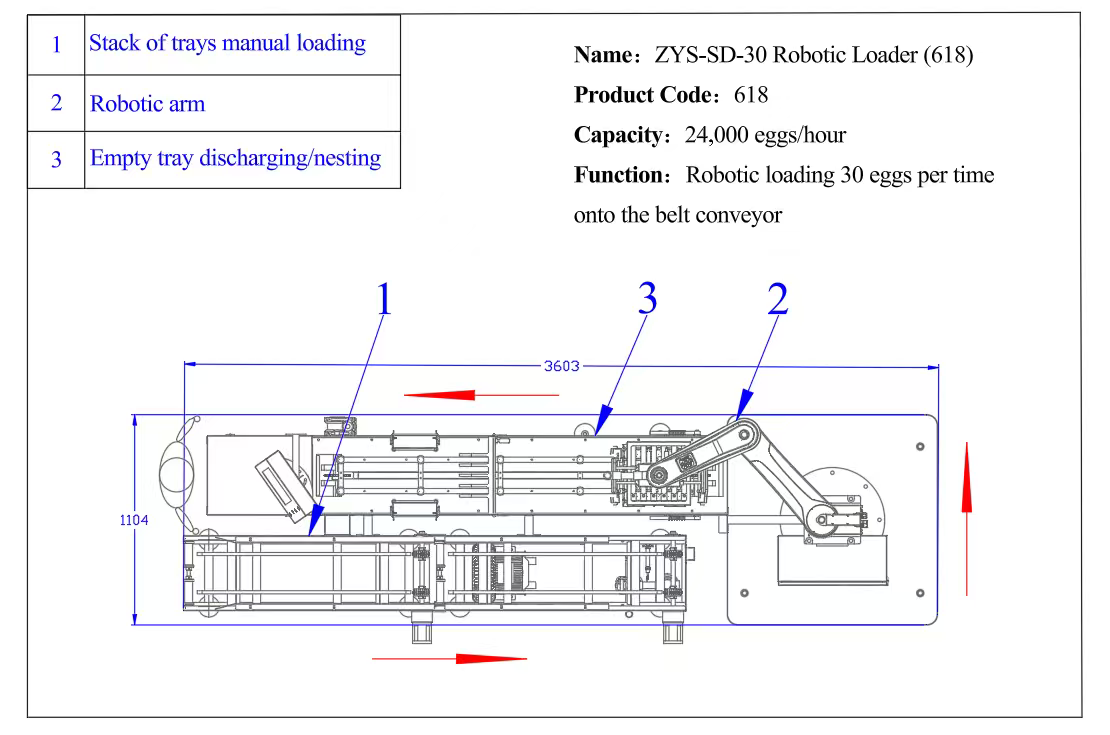

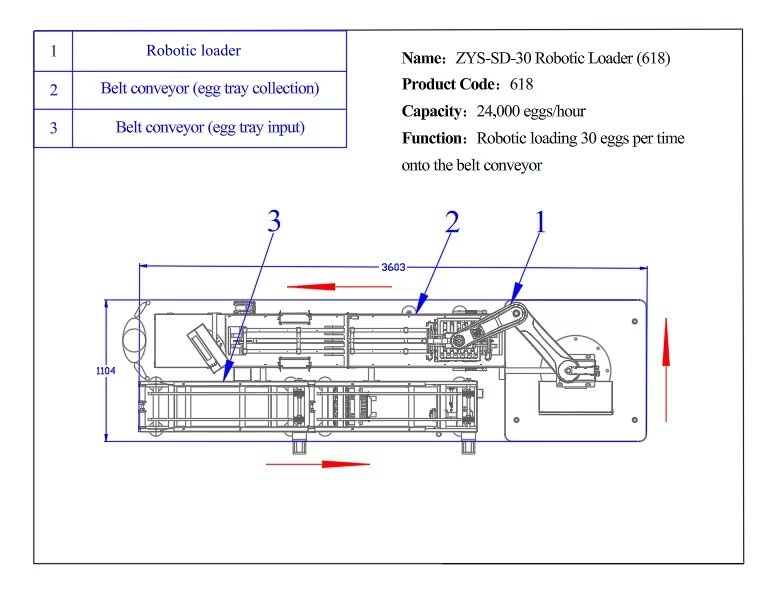

ZENYER 618 Robotic loader floor plan

For ZENYER 618 Robotic loader : Only CNY175,000.00

Optional :
  • Air compressor (3kw) : CNY8,000.00

(Pre-oder)



ZYS-SD-30 Robotic Loader (618) Brochure
