Farm packer

Name:713AS Egg farm packer

Product Code:713AS

Capacity:30,000eggs/hour

Function:Accumulator,automatic packing & counting



Details

Features:

  • Designed to connect to the rod conveyor leading from a chicken shed, the eggs from the chicken shed flow to the accumulator of the farm packer directly.
  •  Includes egg accumulating, head turning, counting, de-nesting and automatic packing functions all in one.
  • Head turning makes sure the eggs are perfectly orientated with the bigger head (air chamber) on top for
    longer storage before getting packed.
  • Packs eggs into 5*6 trays automatically with a capacity of 30,000 eggs/hour.
  • This model of farm packer equips a de-stacking device which can de-nest empty trays and send them to where the eggs will drop from.
  • It features a counting function but does NOT have a grading function.
  • This system can include an optional robotic tray stacker. This feature automates the process of stacking egg trays into uniform piles. Once stacked, the operator can easily collect these loaded stacks from the belt conveyor of the robotic stacket.
  • The compact size of this machine makes it a great fit for small packing rooms.
Commodity Egg farm packer
Product code 713AS
Model FBE85
Capacity 30,000 eggs/hour
Material Stainless steel
Power 1.23KW
Voltage 220-240V,50HZ,Single phase
Dimension(L*W*H)   3.41*1.96*0.92M
Net weight 500KG
Gross weight 830KG
Function Accumulator, automatic head turning ,tray de-nesting,automatic packing
(for 5*6 tray only)


ZENYER 713AS Egg farm packer

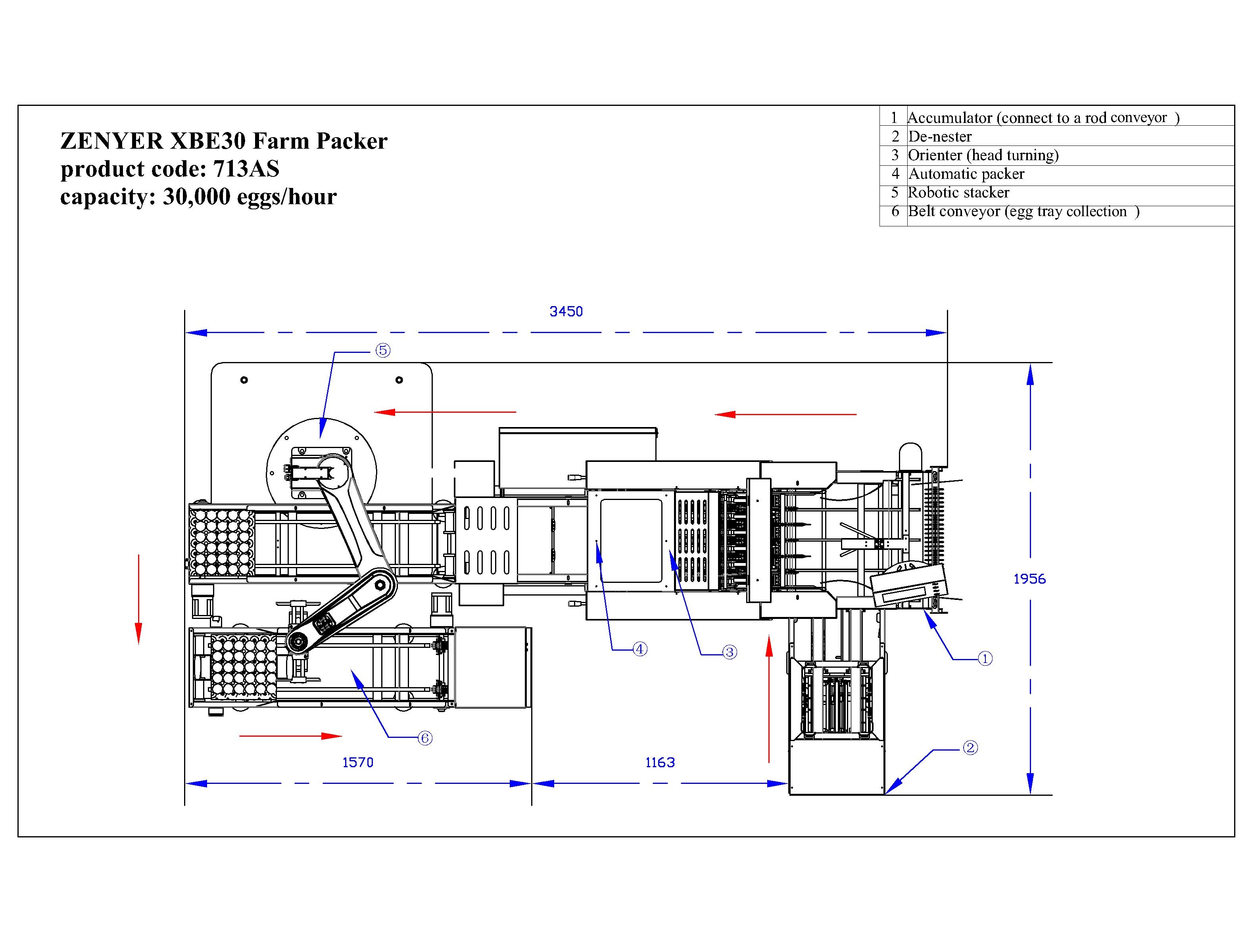

ZENYER 713AS Egg farm packer floor plan

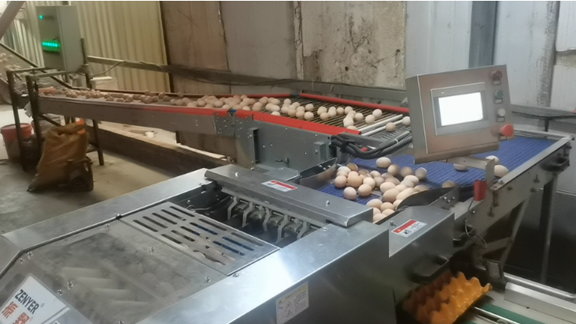

The accumulator connects to the rod conveyor from the chicken house

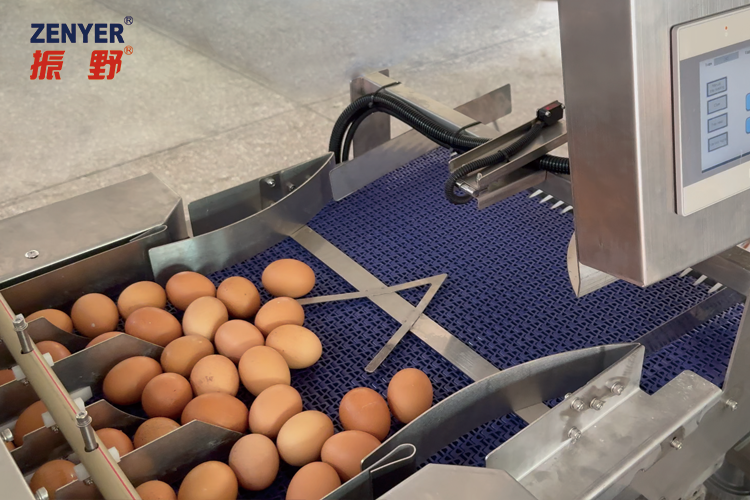

Accumulator

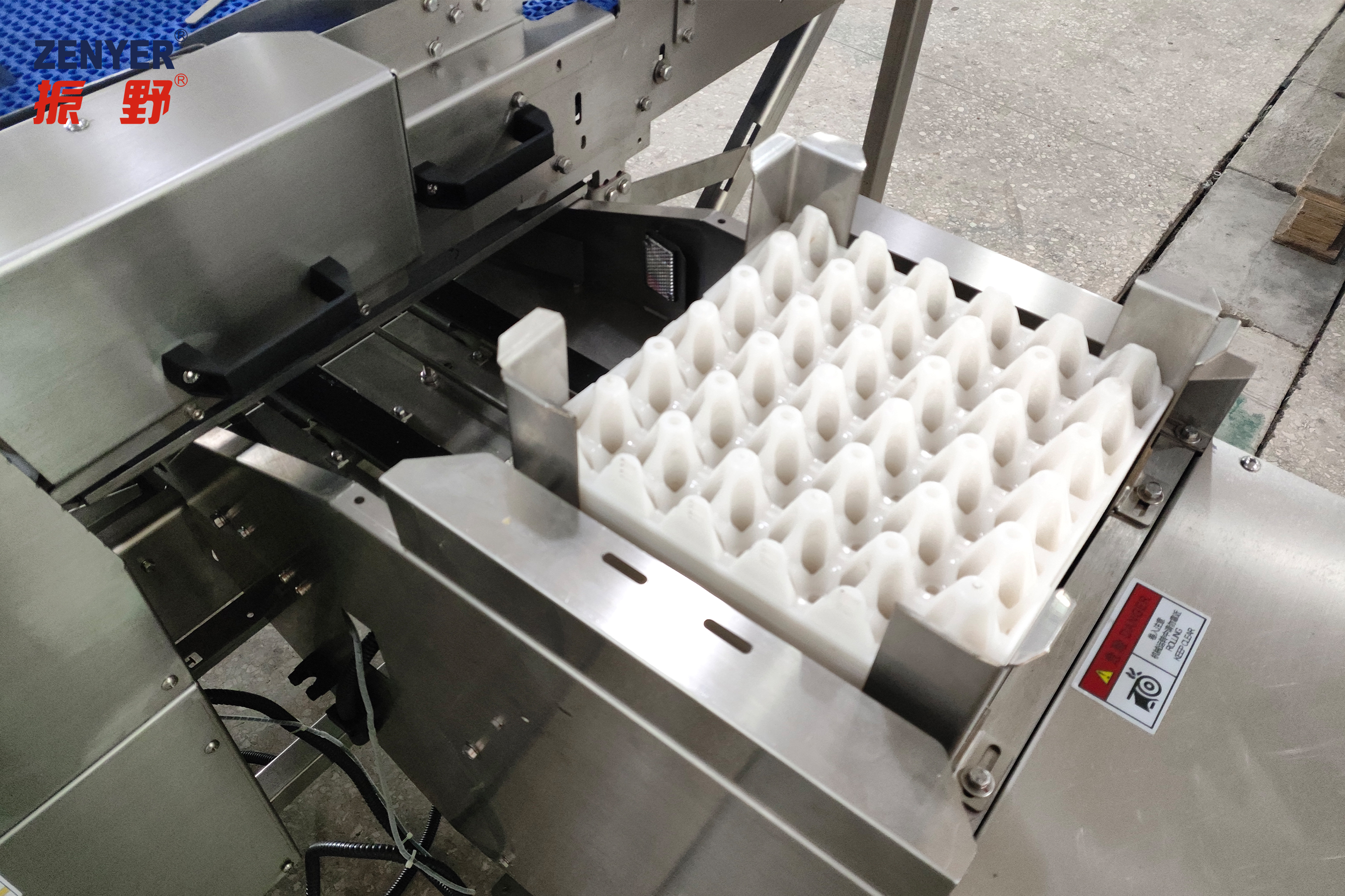

Automatic de-nesting

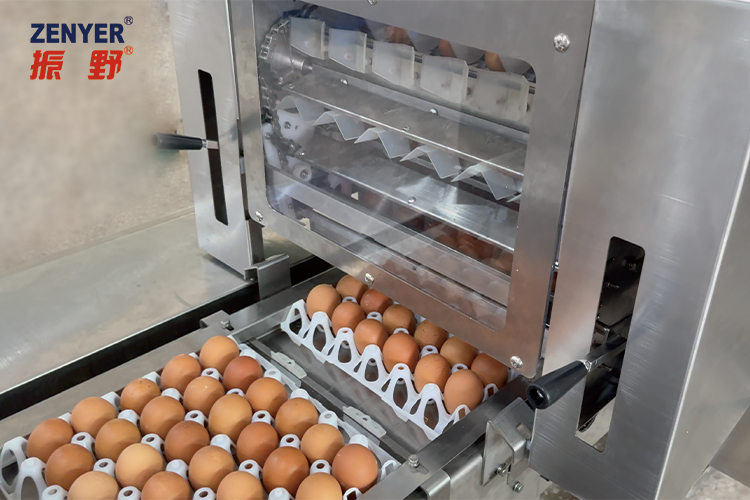

Automatic packing

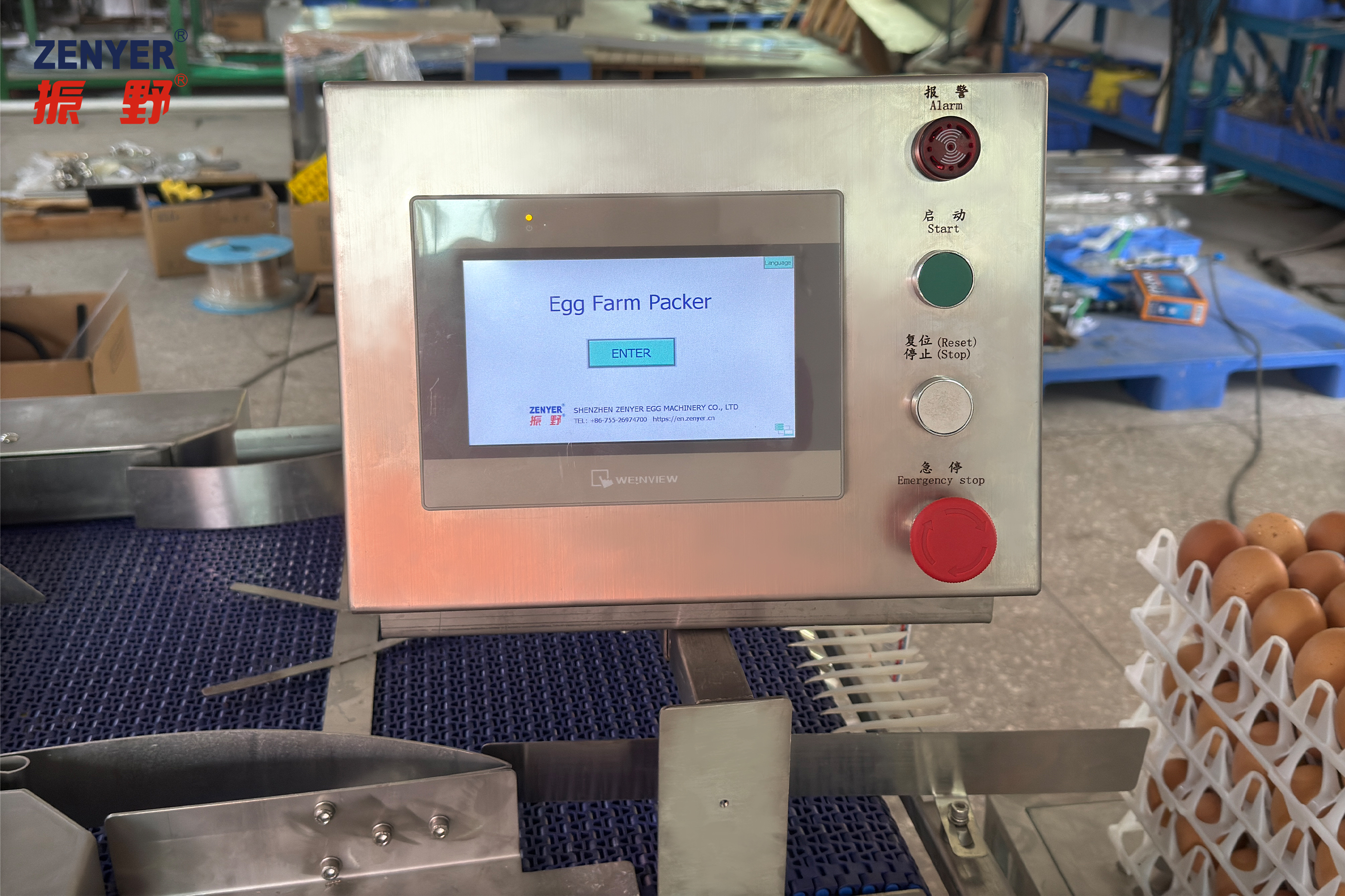

Control panel

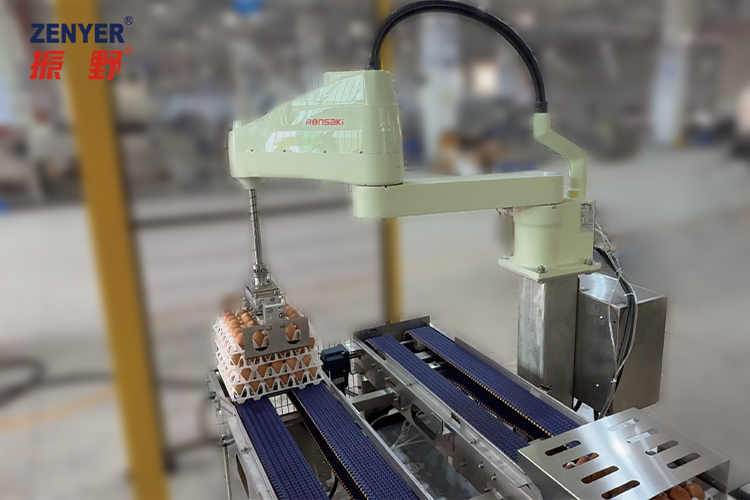

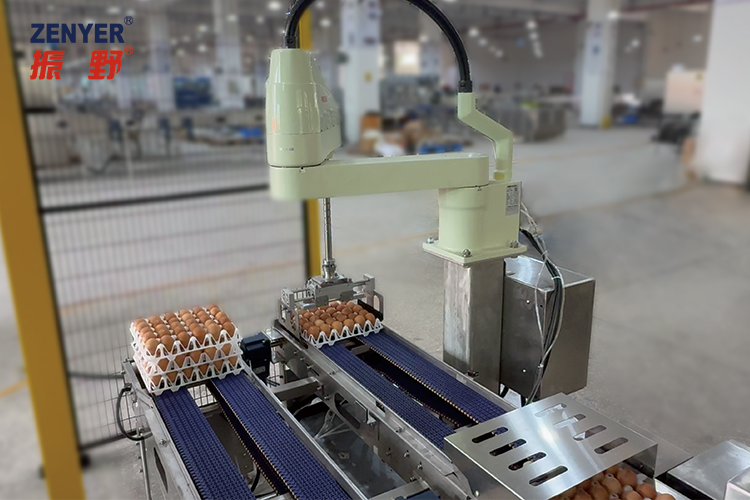

Robotic stacker- lifting

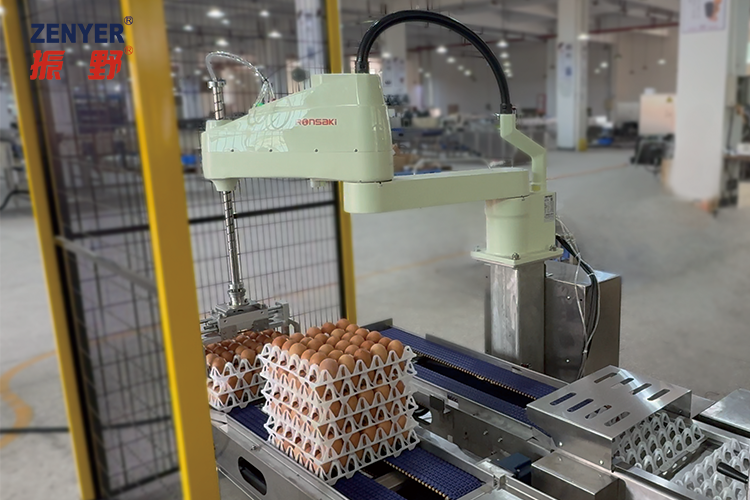

Robotic stacker- stacking

Robotic stacker- belt conveying

For ZENYER 713AS Egg farm packer without candling : Only CNY189,000.00


Optional:
Robotic stacker : Only CNY145,800.00


(Pre-order)



713AS Egg farm packer Brochure
