Name：713B Egg farm packer
Product Code：713B
Capacity：36,000 eggs/hour
Function：Accumulator, orientation, tray de-nesting,automatic packing
Details
The ZENYER 713B Egg Farm Packer is the heart of a new generation of automated tray packing solutions. It revolutionizes traditional egg loading by ensuring a supremely gentle process from collection to stacking, significantly reducing breakage through patented technology. Designed for modern farms prioritizing efficiency and product quality.
Packing Function Highlights:

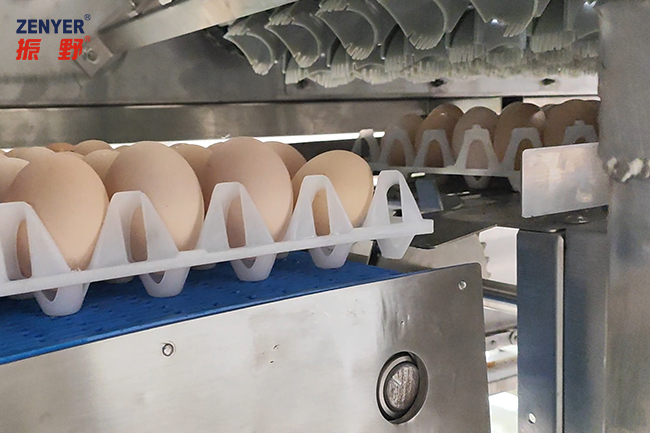

Gentle Tray Loading, Damage-Free Transfer
Features a new 2025 patented design that allows eggs to glide smoothly into tray cells, eliminating the impact and collision common in traditional packers for exceptionally low breakage rates.
Fully Automated, Integrated Packing Line
Integrates the entire packing process from start to finish:

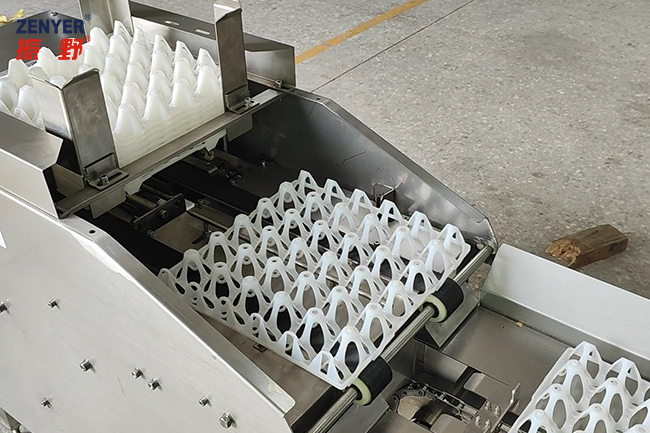

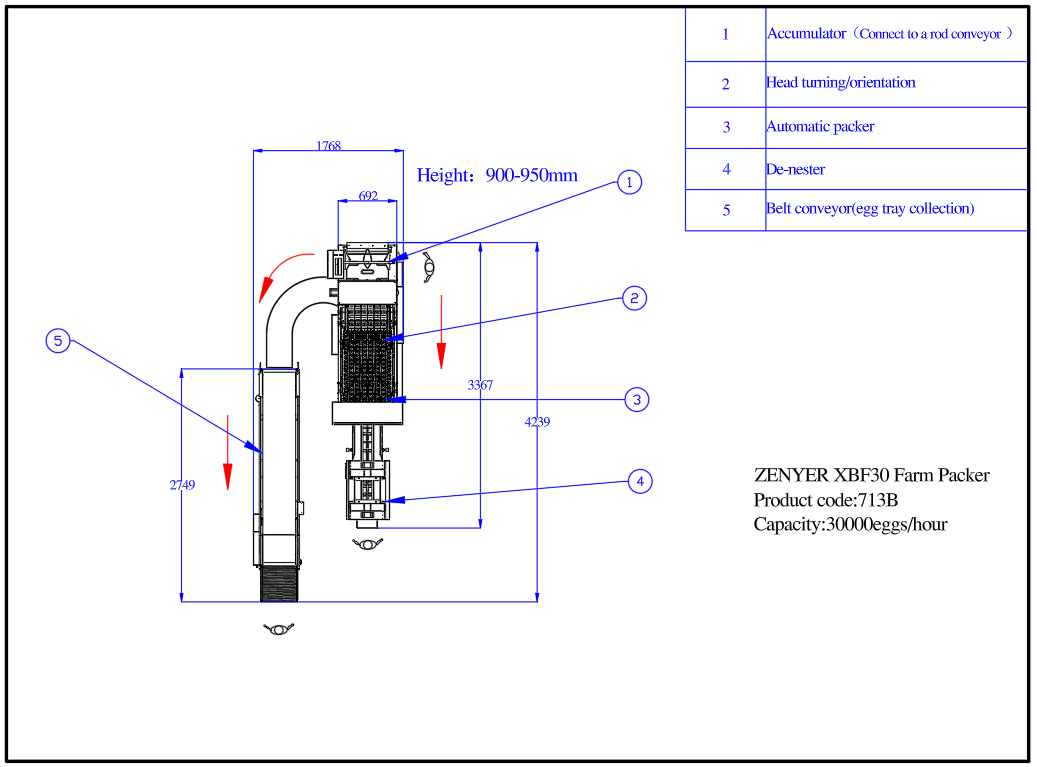

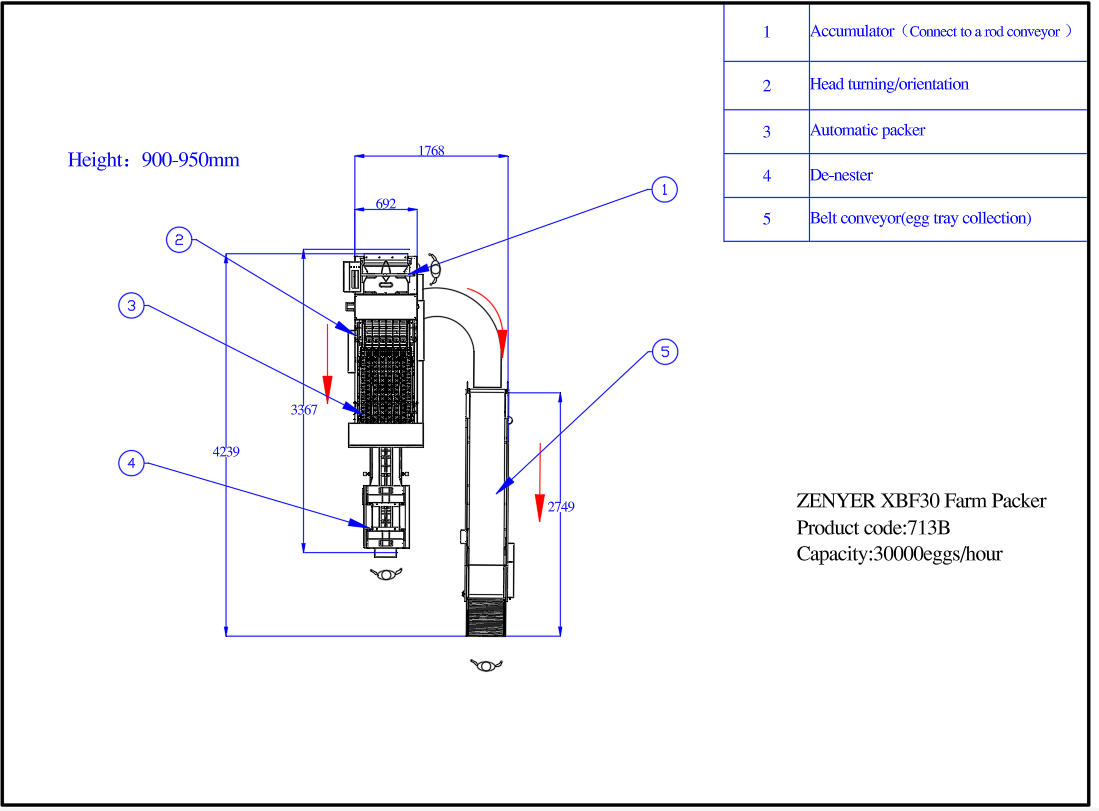

Automatic Tray Feeding: The automatic de-nester separates and feeds empty trays to the packing station.
Optimized Orientation: The unique head-turning function places the larger end (air cell) of each egg on top, ensuring optimal freshness.
High-Speed Packing: Precision-packs eggs into standard 5x6 trays at speeds of up to 36,000 eggs per hour.
Automated Stacking & Discharge (optional)

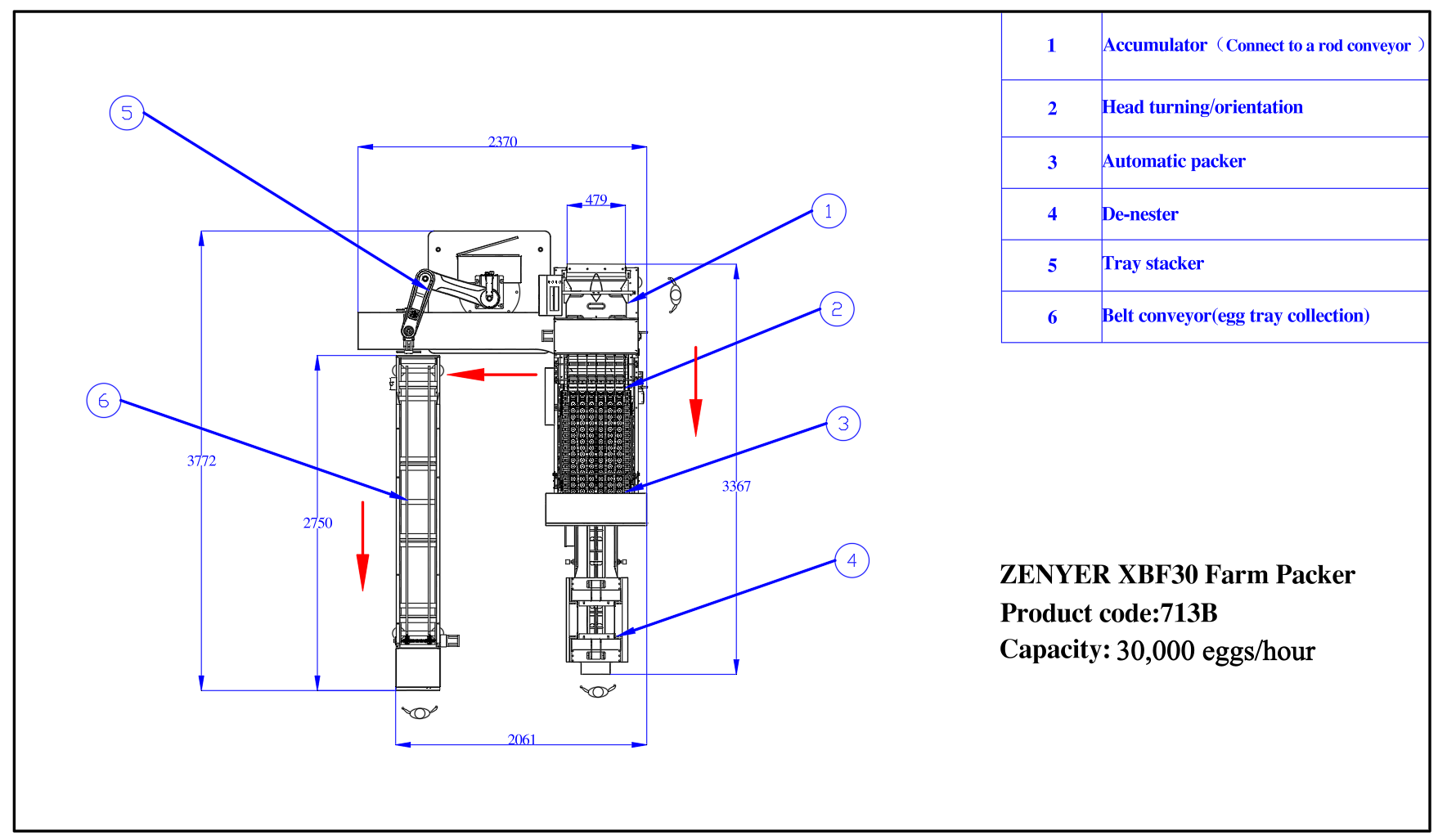

Equipped with the ZENYER 617 Robotic Tray Stacker, which automatically stacks filled trays into uniform piles. Stacks are delivered via a belt conveyor for easy operator collection, enabling a completely hands-free packing operation.
Compact Design, Seamless Integration

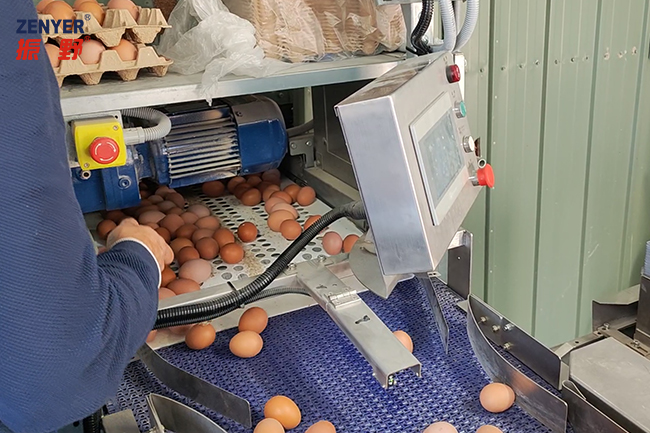

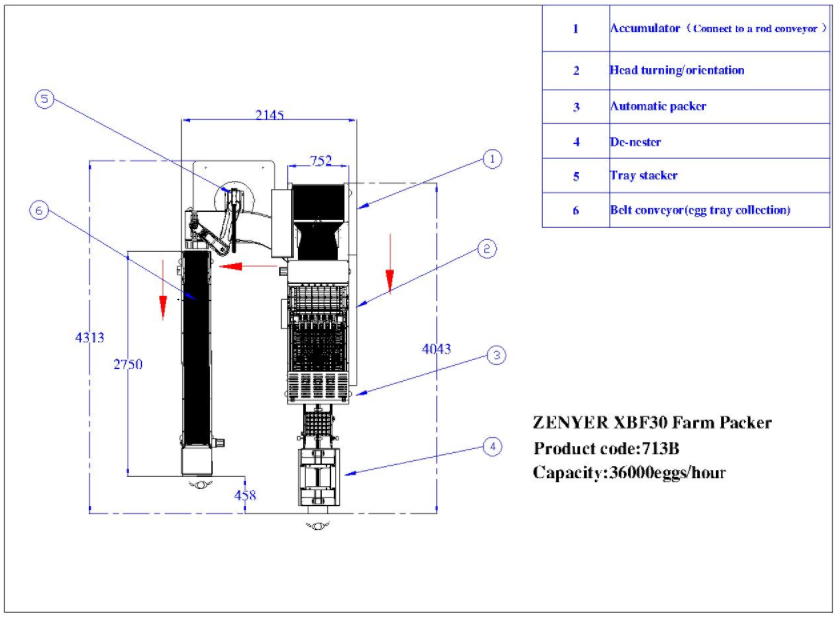

Its space-saving build is ideal for smaller packing rooms. Connects directly to a rod conveyor from the chicken shed, receiving eggs into its accumulator for a continuous, uninterrupted packing flow.
| Commodity | Egg farm packer |
| Product code | 713B |
| Model | FBE85 |
| Capacity | 36,000 eggs/hour |
| Material | Stainless steel |
| Power | 4.5KW |
| Voltage | 220-240V,50HZ,Single phase |

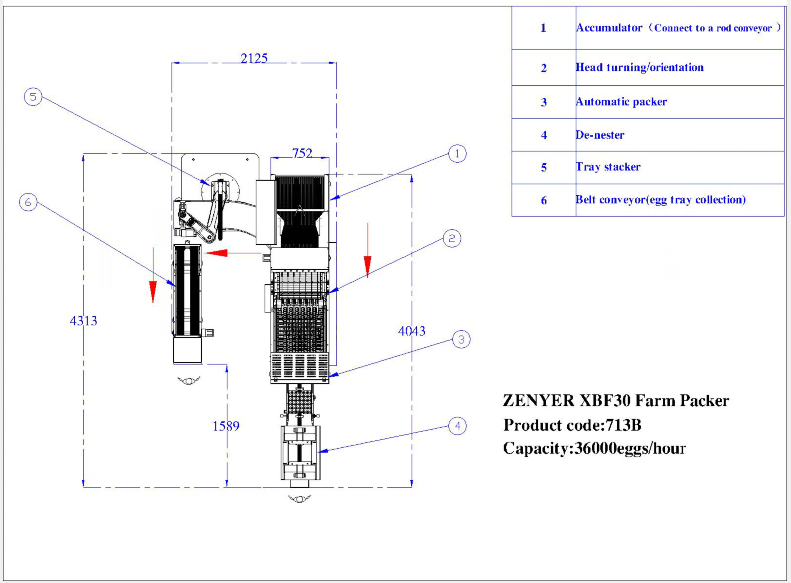

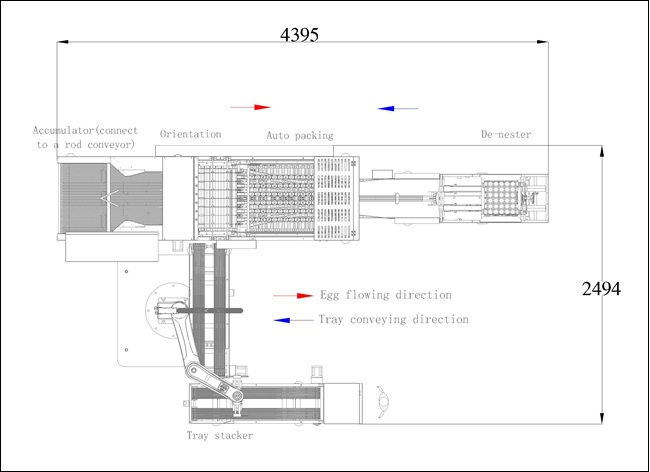

| Dimension(L*W*H) | 3.94*2.13*0.8M |
| Function |
Accumulator, automatic head turning(orientation), tray de-nesting,automatic packing (for 5*6 tray only). optional robotic tray stacking |
