Farm packer

Name:714B Egg farm packer

Product Code:714B

Capacity:72,000 eggs/hour

Function:Accumulator,orientation,auto packing



Details

ZENYER 714B Egg Farm Packer – Brand New 2025 Version

The ZENYER 714B Egg Farm Packer is formed by  combining two sets of 713B egg farm packer. It revolutionizes traditional egg loading by ensuring a supremely gentle process from collection to stacking, significantly reducing breakage through patented technology. Designed for modern farms prioritizing efficiency and product quality.

Features:
Packing Function Highlights:

  • Gentle Tray Loading, Damage-Free Transfer
    Features a new 2025 patented design that allows eggs to glide smoothly into tray cells, eliminating the impact and collision common in traditional packers for exceptionally low breakage rates.

  • Fully Automated, Integrated Packing Line
    Integrates the entire packing process from start to finish:

    • Automatic Tray Feeding: The automatic de-nester separates and feeds empty trays to the packing station.

    • Optimized Orientation: The unique head-turning function places the larger end (air cell) of each egg on top, ensuring optimal freshness.

    • High-Speed Packing: Precision-packs eggs into standard 5x6 trays at speeds of up to 60,000 eggs per hour.

  • Automated Stacking & Discharge (optional)
    Equipped with the ZENYER 617 Robotic Tray Stacker, which automatically stacks filled trays into uniform piles. Stacks are delivered via a belt conveyor for easy operator collection, enabling a completely hands-free packing operation.

  • Compact Design, Seamless Integration
    Its space-saving build is ideal for smaller packing rooms. Connects directly to a rod conveyor from the chicken shed, receiving eggs into its accumulator for a continuous, uninterrupted packing flow.

Commodity Egg farm packer
Product code 714B
Model XBF60
Capacity 72,000 eggs/hour
Material Stainless steel
Voltage 380V,50HZ,3-phase
Dimension(L*W*H)   6.25*5.54*0.8M
Function Accumulator, orientation,
automatic packing
(for 5*6 tray only) and counting.  optional robotic tray stacker


ZENYER 714B Egg farm packer

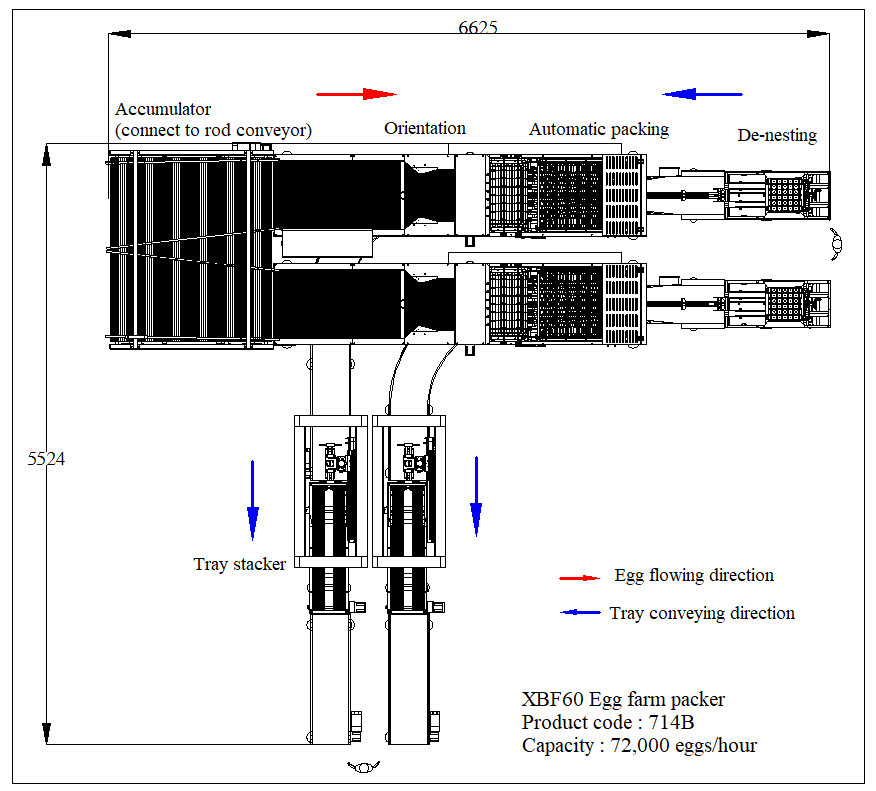

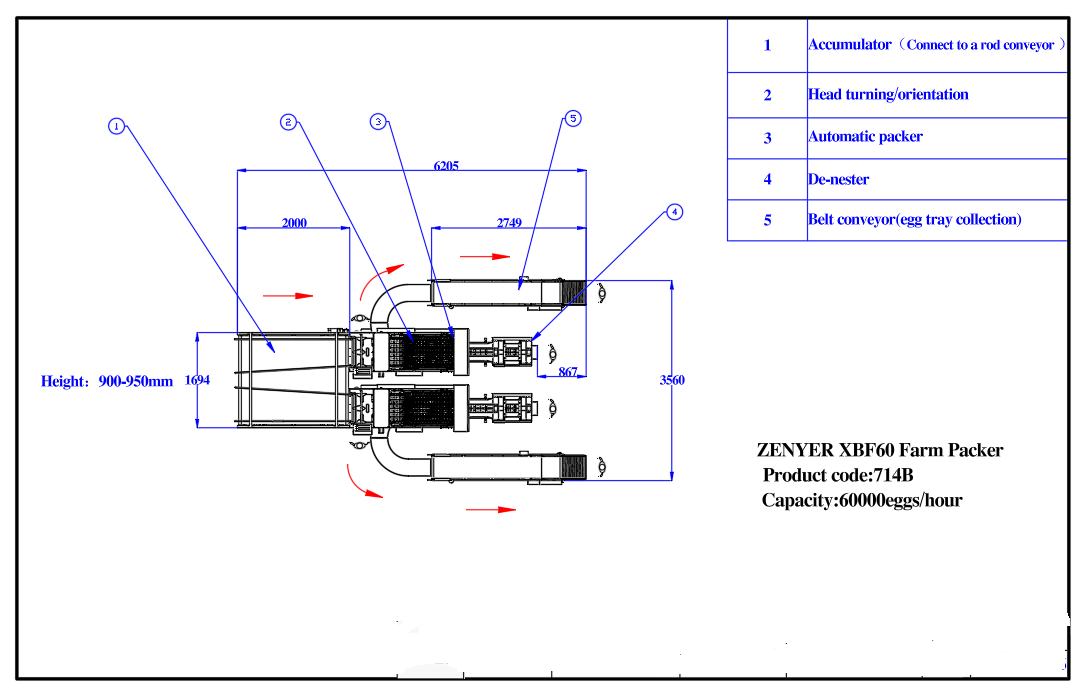

714B Egg farm packer floor plan

Accumulator

Lane divider

Automatic de-nesting

Automatic packing

Control panel

Robotic stacker- lifting

Robotic stacker- stacking

Robotic stacker- belt conveying


For ZENYER 714B Farm packer without candling : Only CNY319,160.00

Option:
  • Robotic stacker : Only CNY153,000.00


(Pre-order)



714B Egg farm packer Brochure
