Egg grader

Name:109 Egg grader

Product Code:109

Capacity:27,000-30,000eggs/hour

Function:Accumulator,Candling, head turning,grading & counting,auto-packer and off grade table



Details


Features:

  • Constructed from high quality stainless steel for great durability and hygiene.
  • can perform auto-packer and also be attached with the rod conveyor from chicken shed directly for egg loading.
  • Equipped with colour touchscreen PLC control and self-diagnose system and can sort eggs into 4 grades with accuracy ±1g.
  • Can count the output of each grade per shift and also can accumulate the total quantity of each grade.
  • Including accumulator, head turning, candling booth, grading & counting, auto-packer and optional printing.
  • Each automatic packer includes a dropset, tray stacker and egg tray collection conveyor. Empty trays must be manually placed in the egg tray stacker, allowing the stacker to send the empry trays to where the eggs will drop from . The drop unit drops the eggs into 5*6 egg tray automatically. the conveyor will transport the egg trays to the end of it.
  •
  • Made of strong stainless steel for great durability and hygiene.
  • Includes accumulator & candling & head turning & UV sterilizing, grading & counting, auto packing and manual packing functions all in one machine with a capacity of 27000 eggs/hour.
  • This model of egg grader is featured with a color touchscreen and PLC control system with self-diagnose function.
  • Ideally, connecting to a auto vacuum loader which makes egg loading more easier and efficient, eggs will be loaded onto the accumulator of egg grader automatically.
  • Eggs are transported to the candling section. You can check leaking, dirty, cracked eggs through LED lights by eyes, and romoved manually.
  • Is equipped a candler with a stainless steel candling cover and a mirror for better candling results.
  • This model of grader is also equipped with UV disinfection function which will sanitize the egg shell for maximum food security.
  • Head turning makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
  • Eggs are weighed electronically and graded into 5~6 grades with accuracy within ±1g.
  • It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.
  •  Each auto-packer includes a dropset unit, empty tray transfer conveyor and collection conveyor.
  • Empty cartons/trays need to put onto the transfer conveyor manually, the transfer conveyor will transport the cartons/trays towards the egg dropset to fill the eggs.
  • The egg dropset unit supports the 10, 12, 15, 18, ​30 egg cartons/trays for each fill.
  • Each size can be attached with an auto packer. It can be also connected to a manual packing table.
  • The manual packing table can be split into two~three sections to accommodate two~three egg sizes if needed.
  • Graded eggs will drop onto the sponge roller of the manual packing table, the roller will deliver the eggs to its collection section. You can collect the eggs from there and pack them into egg cartons/trays manually.

Commodity Egg grader
Product code 109
Model ZYF-DAS6-3ZP
Capacity 27,000-30,000 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 5-6
Power 7.5KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 7.7*8.3*2M
Net weight 1500KG
Gross weight 2100KG
Function Accumulator,Candling, head turning &UV,grading & counting,auto-packer,manual packing and optional printing

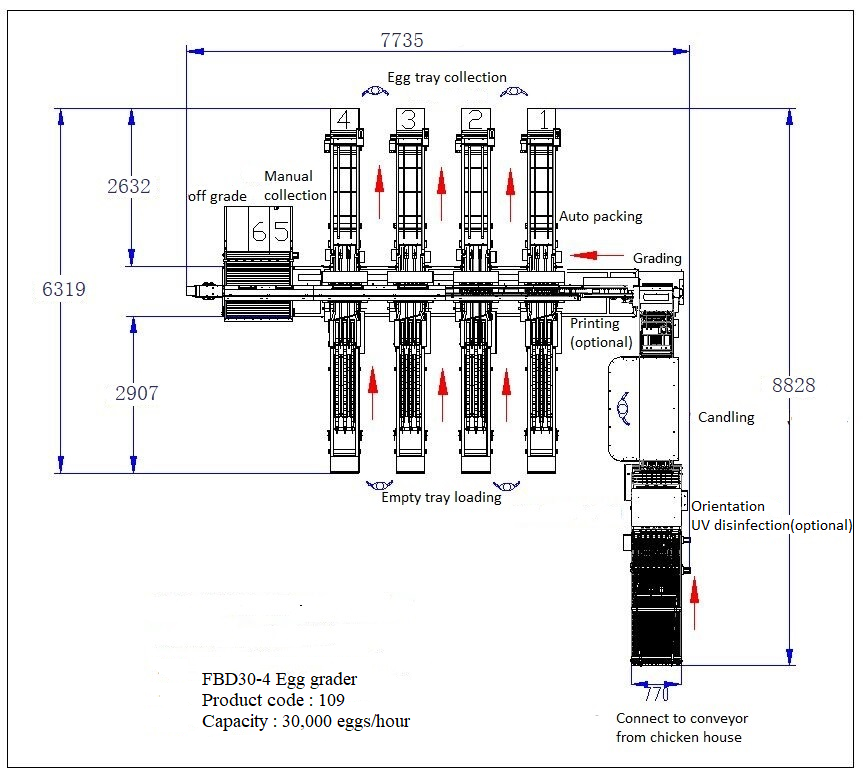

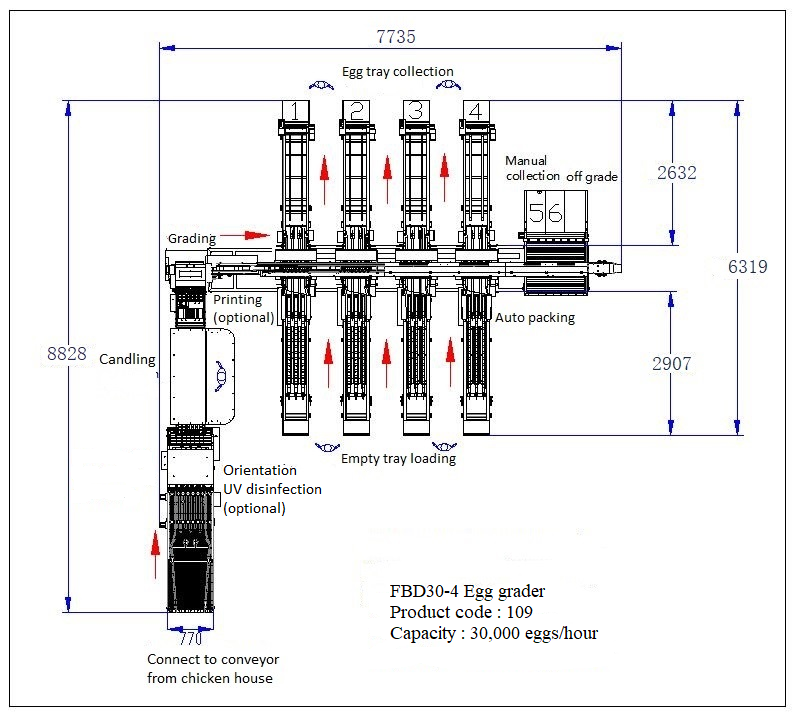

ZENYER 109 egg grader with 3 auto-packers




Color touch screen & physical button control panel

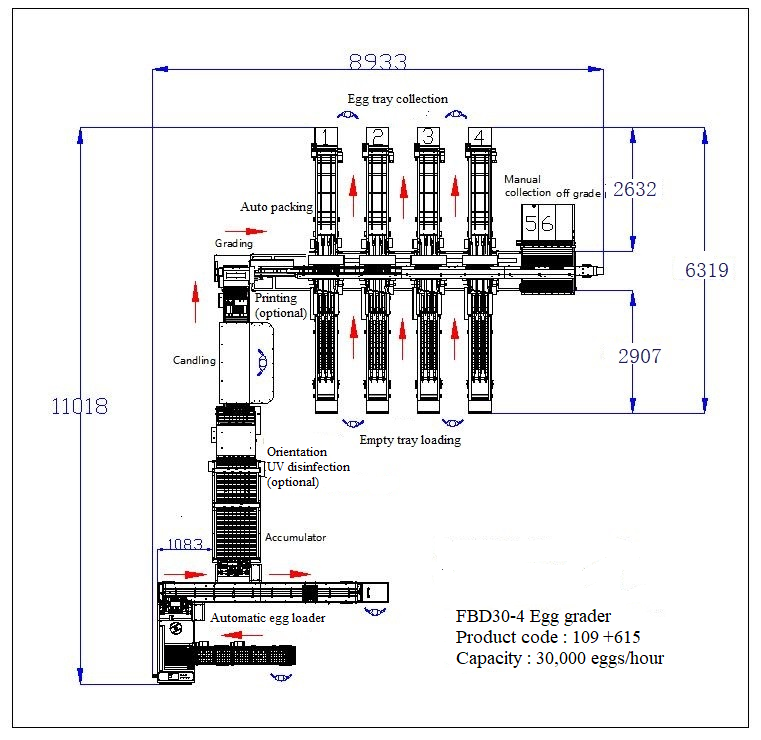

Auto vacuum loader (optional)





Accumulator


Automatic head turning


UV sterilizing


The 6-row candler with a candling cover and mirror


Elextronic egg weighing system


Touch screen user interface



 Manual egg tray sender


Drop- set unit


Egg tray collection conveyor


Off grade


For ZENYER 109 egg grader standard configuration: Only USD117,582.00
consist of :

  • Accumulator ( candler & head turning & UV included)

  • The 109 main machine (Grading & counting included)

  • Auto-packer (3 Units)
  • Manual collection table (1 unit)

Option:

(Pre-order)
