Egg washing grading line

Name：304A Egg washing grading line

Product Code：304A

Capacity：30,000 eggs/hour

Function：washing,drying,grading & counting,auto-packer



Details

ZENYER 304A Egg Washing & Grading Line – Features & Benefits

  • High-Grade Stainless Steel Structure

Made of strong stainless steel for great durability and hygiene, making it ideal for large-scale, continuous egg processing operations.

  • All-in-One Integrated Functions

Integrates egg accumulating, candling, sanitizer spraying, brush washing & drying, orientation, grading & counting, autopacking and manual packing.

Optional features include:
Automatic Egg Loader for maximum loading efficiency
UV Sterilization for enhanced food safety
Egg Printer for date coding and traceability

  • Intelligent & Safe Operation

The 204A egg washer is equipped with a free-standing control panel, and the 109 egg grader features a color touchscreen control panel. Both units are interlockcontrolled for safe and reliable operation.

  • Efficient & Flexible Egg Loading

Can be connected to a rod conveyor from the chicken shed or the Zenyer 615 automatic egg loader, greatly improving loading efficiency.
  • Excellent Cleaning & Drying Performance
This egg washer fully satisfies all egg cleaning and drying requirements with outstanding results.

  • Versatile Auto-Packing System

Auto-packers support 10, 12, 15, 18, and 30-egg cartons/trays.
Comes with 4 auto-packers (with the option to add more as required).
Each auto-packer handles one egg size, while the manual collection table can pack two to three sizes simultaneously for maximum flexibility.

Commodity Egg washing grading line
Product code 304A
Model ZYL-JS3-HDS6-4Z
Capacity 30,000 eggs/hour
Material Stainless steel
Power * 37.19KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 17.63*8.44*2 M
Net weight * 3070KG
Gross weight * 4490KG
Function Accumulator & candling ,sanitizer sprayer & washing & drying, accumulator & orientation ,  grading & counting, auto-packer, optional printing,auto egg loader
* Power, net weight and gross weight are calculated according to the floor plan below.


ZENYER 304A egg processing line with 615 vacuum egg loader

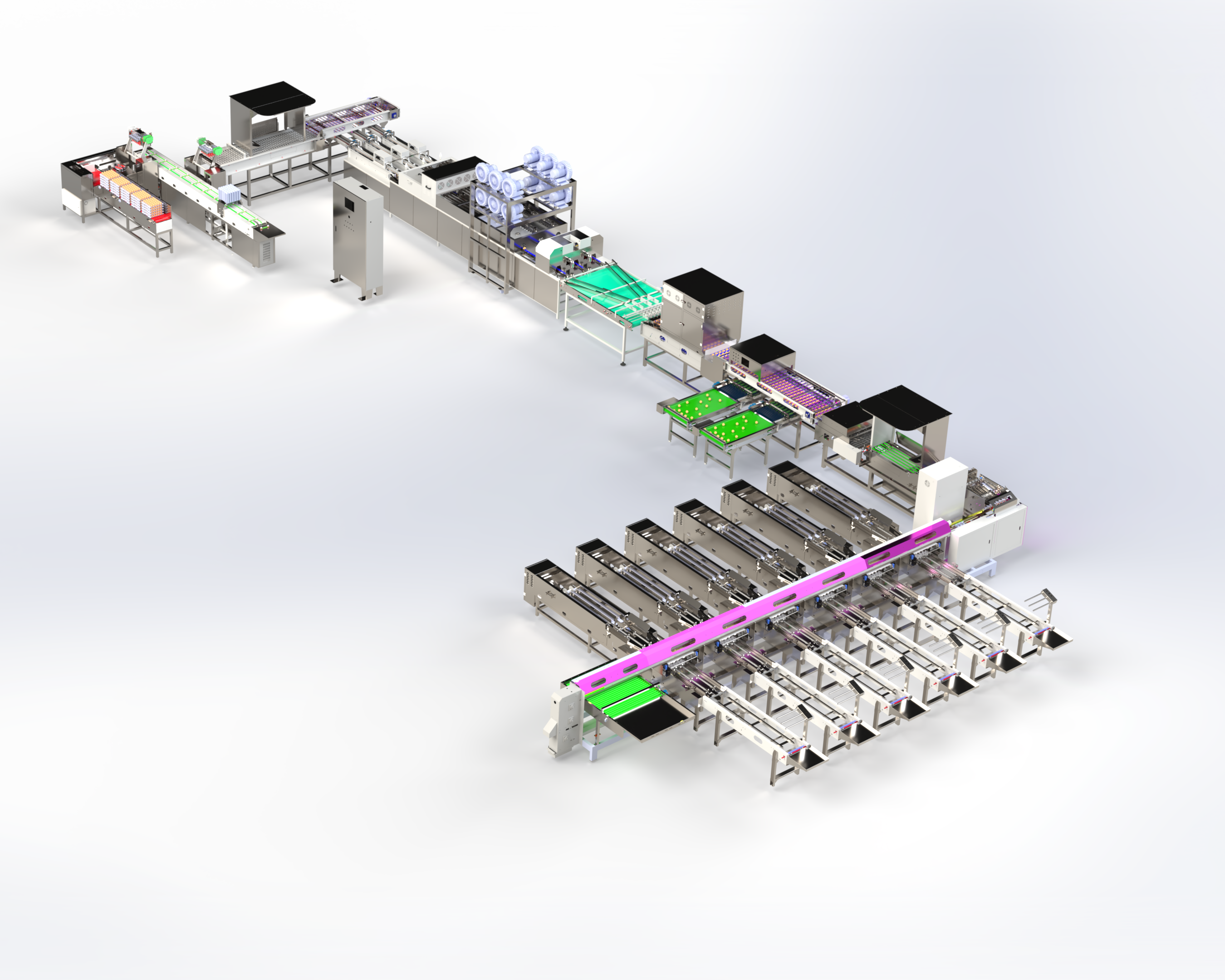

ZENYER 304A egg washing grading line with 615 automatic egg loader floor plan-right side

The 615 Automatic egg loader (optional)

Auto empty tray de-nesting (optional)

ZENYER six-row Visual AI detector (optional)

Price for ZENYER 304A egg washing grading line : Only CNY1,163,000.00
consist of :

  • The 204A Egg washer (Accumulator,washing & drying included)

  • The 109 egg grader (Grading & counting, auto-packer (4 units)


Option:
  • The 430X Visual AI Detector ：CNY400,000.00
(Pre-order)



304A Egg washing grading line Brochure
