Egg grader

Name：FBB05-3 Egg grader (102BP)

Product Code：102BP

Capacity：5,000 eggs/hour

Function：Accumulator & candling,orientation auto-packer, manual collection lane



Details


Zenyer Small-Capacity Automatic Egg Grader & Packing System

Engineered for efficiency and precision, our advanced egg processing system seamlessly integrates electronic grading with fully automated packing operations. Designed to handle up to 5,000 eggs per hour, it combines robust stainless-steel construction with intelligent controls to deliver a complete, hygienic, and reliable solution for modern egg production facilities.

Features:

  • Precision Electronic Grading & Auto-Packing
    Accurately weighs and sorts eggs into 4–5 distinct weight grades with a precision of ±1g. The integrated auto-packer efficiently handles both 12 and 30-egg cartons, completing the process from grading to packing without manual intervention.

  • Complete Automated Workflow
    From accumulation and orientation to candling, grading, and packing, every step is optimized for speed and quality. The system ensures eggs are oriented air-cell up for longevity and uses bright LED candling to remove defective eggs—all with minimal operator input.

  • Smart Control & Operational Efficiency
    Features a user-friendly color touchscreen and PLC-based control system with self-diagnosis. Real-time counting and shift reporting provide full visibility over production output and grade distribution.

  • Flexible & Scalable Design
    Includes a splittable manual collection lane for handling multiple egg sizes and is compatible with the Zenyer 201A egg washer to form a integrated washing-grading line—offering a scalable path to higher automation.

Commodity Egg grader
Product code 102BP
Model FBB05-3
Capacity 5,000 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 4-5
Power * 3.6KW
Voltage 220V, 50HZ, Single phase / 380V,50HZ,3-phase
Dimension (L*W*H) 7.3*4.4*2.0 M
Net weight 960KG
Gross weight 1380KG
Function Accumulator & candling, orientation, grading & counting, auto-packer, manual collection lane and off-grade table, optional vacuum egg lifter and printer
* Power, net weight and gross weight are calculated according to the floor plan below.

ZENYER 102BP egg grader (with 3 auto-packers)

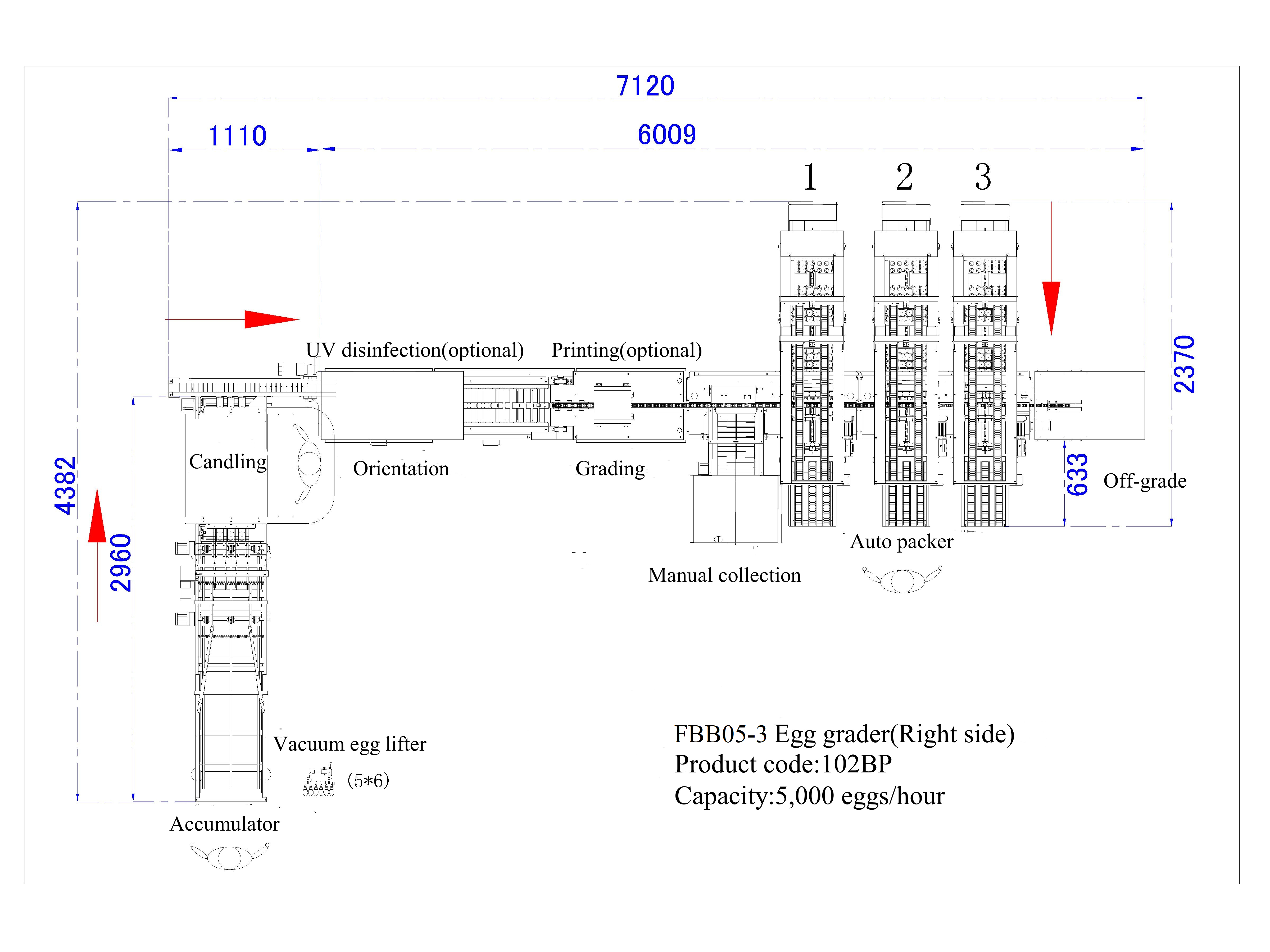

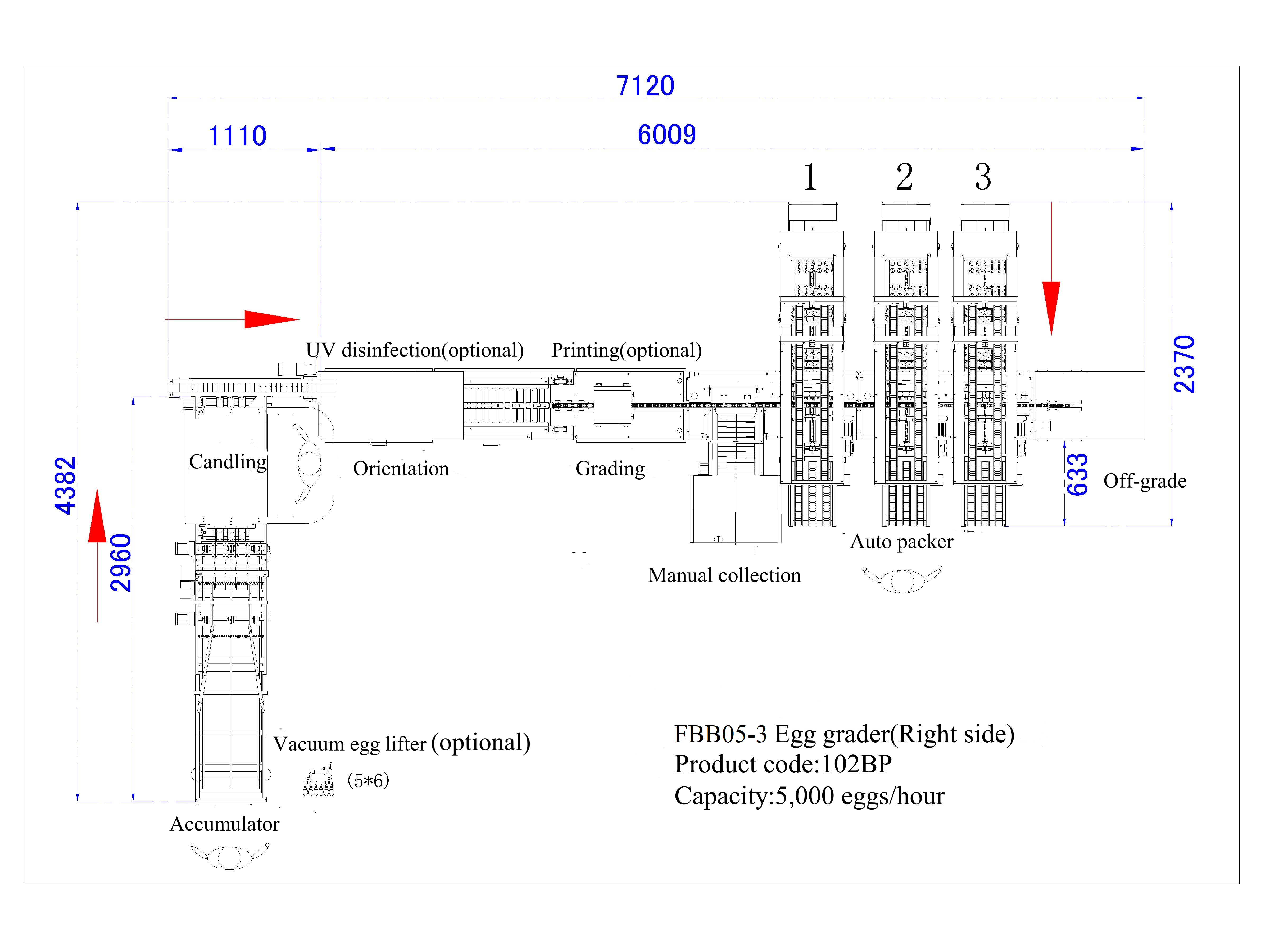

ZENYER 102BP Egg grader floor plan-right hand side

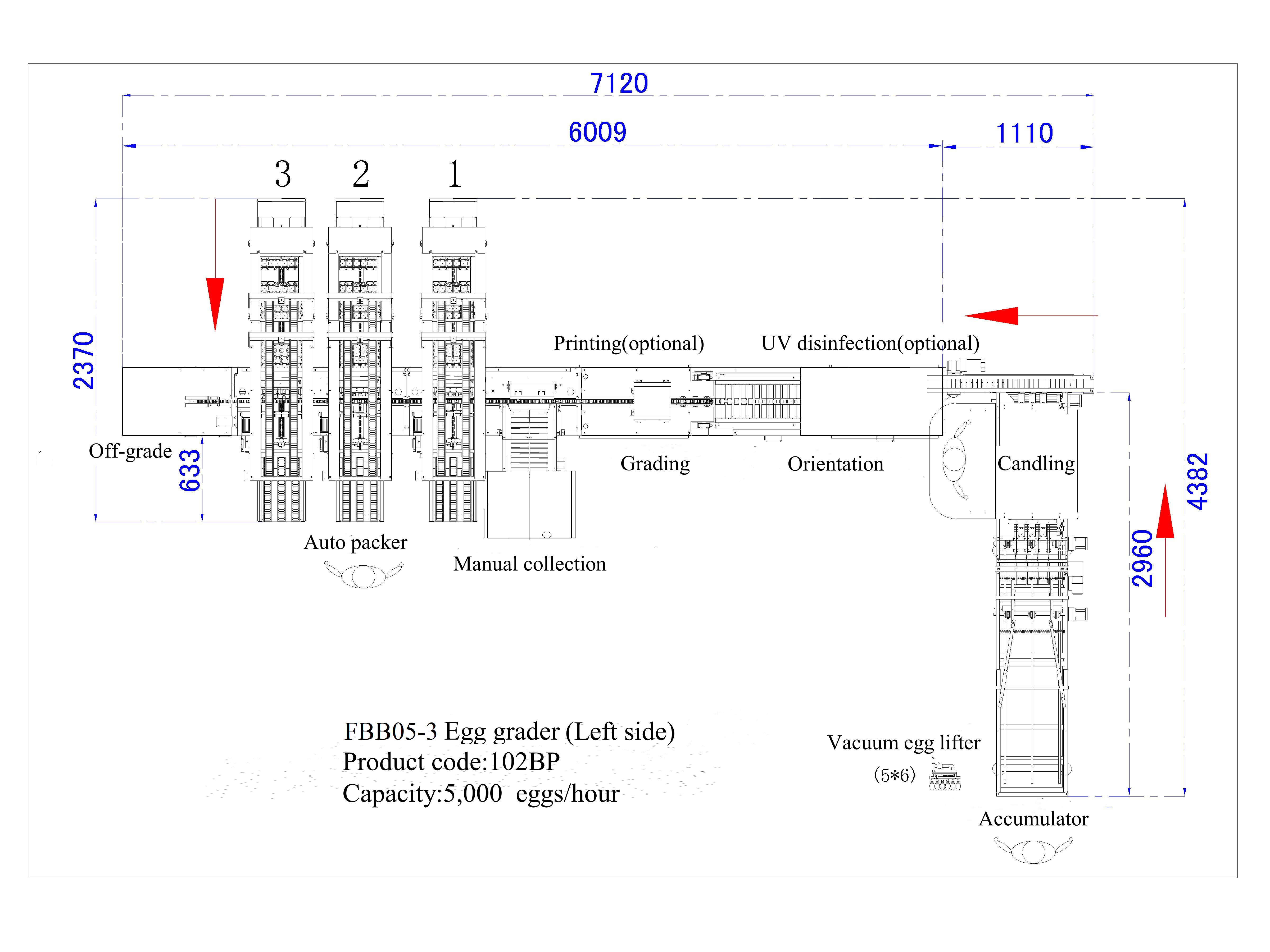

ZENYER 102BP Egg grader floor plan - Left hand side

Orientator (direct 3 lines to 1 line)

UV disinfection for optional

Empty tray loading

Automatic packing

3 automatic packing lane and 1 manual collection lane

Color touch screen & physical button control panel


ZENYER 605AS accumulator includes the Orientator which can direct 3 lines of eggs into 1 line

The 3-row candler with a candling cover and mirror

ZENYER 602 Vacuum egg lifter for optional

Vacuum lifting 30 eggs per time

ZENYER 401H Egg printer matches on the 102BP egg grader (for optional)

ZENYER Visual AI detector (optional)

Price for ZENYER 102BP egg grader : Only CNY239,900.00
Consist of :
  • The 605AS accumulator (candling included)
  • The 102BP Main machine

  • Auto-packing lane (3 Units)

  • Manual collection lane (1 unit)


Option:
  • The 410X Visual AI Detector : CNY162,500.00
  • Air compressor (3kw) : CNY7,800.00
(Pre-order)



FBB05-3 Egg grader (102BP) Brochure
