ZENYER Medium Capacity Automatic Egg Grading & Packing System

Features

• High-Precision Electronic Weight Sorting
  Accurately weighs eggs with ±1g precision and classifies eggs into 4–5 different weight grades for consistent quality control.

• Reliable Two-Stage Automatic Packing
  Adopts two-step drop-set packing for precise egg positioning. Compatible with common packaging formats: 30-egg trays, 10-egg (2×5) cartons and 12-egg (2×6 / 2×2×3) cartons to satisfy varied market requirements.

• Labour-Saving Layout Design
  Empty packaging loading and finished package collection are operated on the same side of the machine. Only one operator is needed, lowering labour costs and maintaining stable packing quality.

• Intelligent PLC & Colour Touchscreen Control
  Conveniently adjust grading parameters, calibrate weighing accuracy, switch packing modes and monitor operating status. Built-in data logger automatically records total output and quantity of each weight grade for efficient production management.

• Optional UV Sanitisation Module
  An optional ultraviolet disinfection system sanitises eggshell surfaces, enhancing food safety and farm biosecurity.

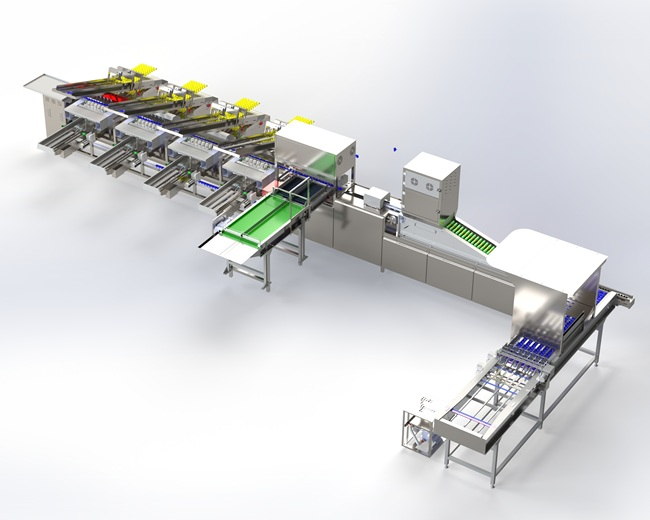

• Expandable Full Processing Line
  Can be connected with the ZENYER 202A Egg Washer to form the 302AP integrated washing, grading and packing line, keeping the processing capacity of 10,000 eggs per hour.

• Wi-Fi Remote Monitoring & Diagnostics
  Supports remote system access. With customer authorisation, ZENYER technicians can remotely troubleshoot software issues to minimise unplanned downtime.

• Egg farms and packing facilities with limited floor space
• Medium-scale producers requiring 10,000 eggs hourly throughput
• Businesses demanding automatic grading and multi-format egg packaging
• Operators looking to reduce manual work and improve overall packing efficiency
