Egg grader

Name:FBD170-8 Egg grader

Product Code:111

Capacity:60,000 eggs/hour

Function:Accumulator,candling, head turning, grading & counting and auto packing



Details

The ZENYER FBD170 egg grader (product code:111) has a capacity of 60,000 eggs/hour, it includes the egg accumulating, head turning, candling, grading & counting and automatic packing functions, you can also add the optional automatic egg loader, UV sterilization, egg printer or visual AI detector function.
The Zenyer 111 egg grader has a control panel with color touchscreen and physical buttons to allow for easy control of the machine and access to the system.

Features:
  • Made of strong stainless steel for great durability and hygiene.
  • Includes accumulator & candling & head turning , grading & counting and auto packing functions all in one machine with a capacity of 60,000 eggs/hour.
  • This model of egg grader is featured with a color touchscreen and PLC control system with self-diagnose function.
  • Ideally, connecting to the zenyer automatic vacuum loader which makes egg loading more easier and efficient, eggs will be loaded onto the accumulator of egg grader automatically.
  • Eggs are transported to the candling section. You can check for any leaking, dirty, cracked eggs through LED lights by eyes, and remove them manually.there is also a candling cover and a mirror for better candling results.
  • The optional UV sterilization can sanitize the egg shell for maximum food security.
  • Head turning makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
  • Eggs are weighed electronically and graded into 4-7 grades with an accuracy of within ±1g.
  • It has a counting function as well, you can check how many eggs of each grade and total output per shift have been processed.
  • Empty cartons/trays need to be loaded onto the empty tray conveyor manually, the conveyor will transport the cartons/trays to where the eggs will drop from.
  • There are 8 auto-packers shown on the floor plan,you can add more auto packers according to your situation.
  • The automatic packer supports 10, 12, 15, 18 and ​30 egg cartons/trays.
  • Aside from the sizes of eggs which are managed by the auto packer, other grades of eggs will drop off onto the off-grade table, the table can be split into 2~3 sections to accommodate 2~3 egg sizes if needed.
Commodity Egg grader
Product code 111
Model FBD170-8
Capacity 60,000 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 4-7
Power * 13.36KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 11.57*10.54*2M
Net weight 4280KG
Gross weight 6150kg
Peple 7-8
Function Accumulator,candling, head turning, grading & counting and auto packing. optional automatic vacuum loader,UV sterilizing, printing and visual AI egg detector

ZENYER 111 egg grader with 8 auto-packers

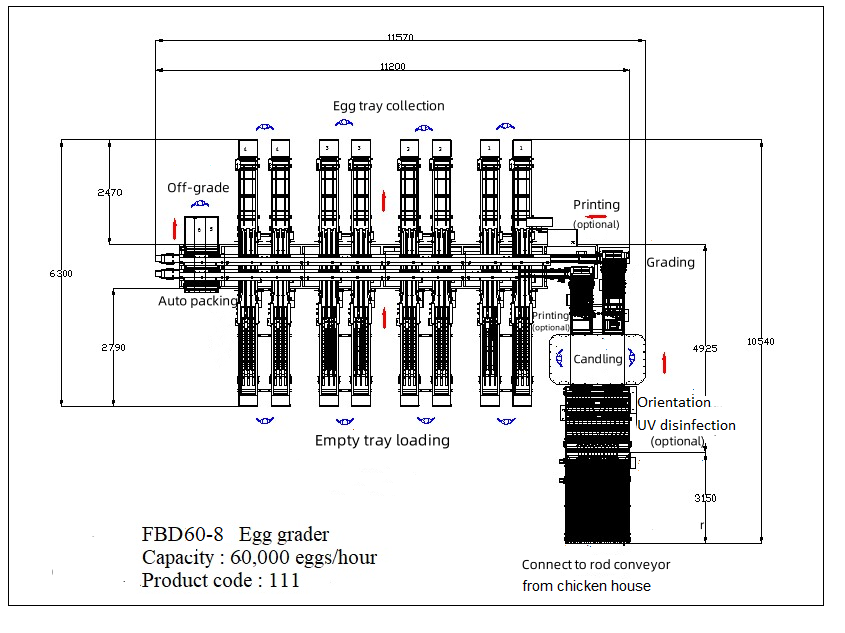

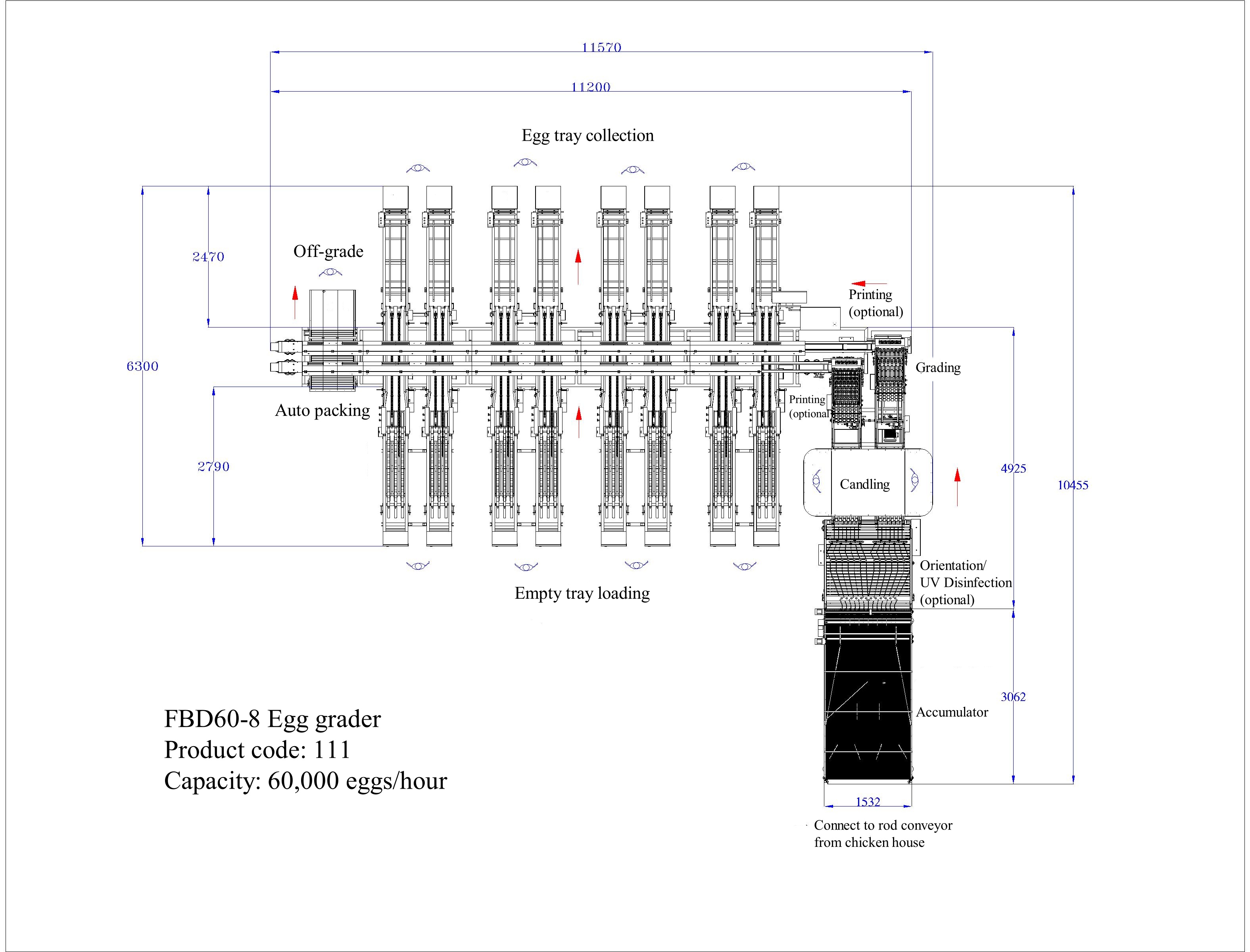

ZENYER 111 egg grader with 8 auto packers floor plan

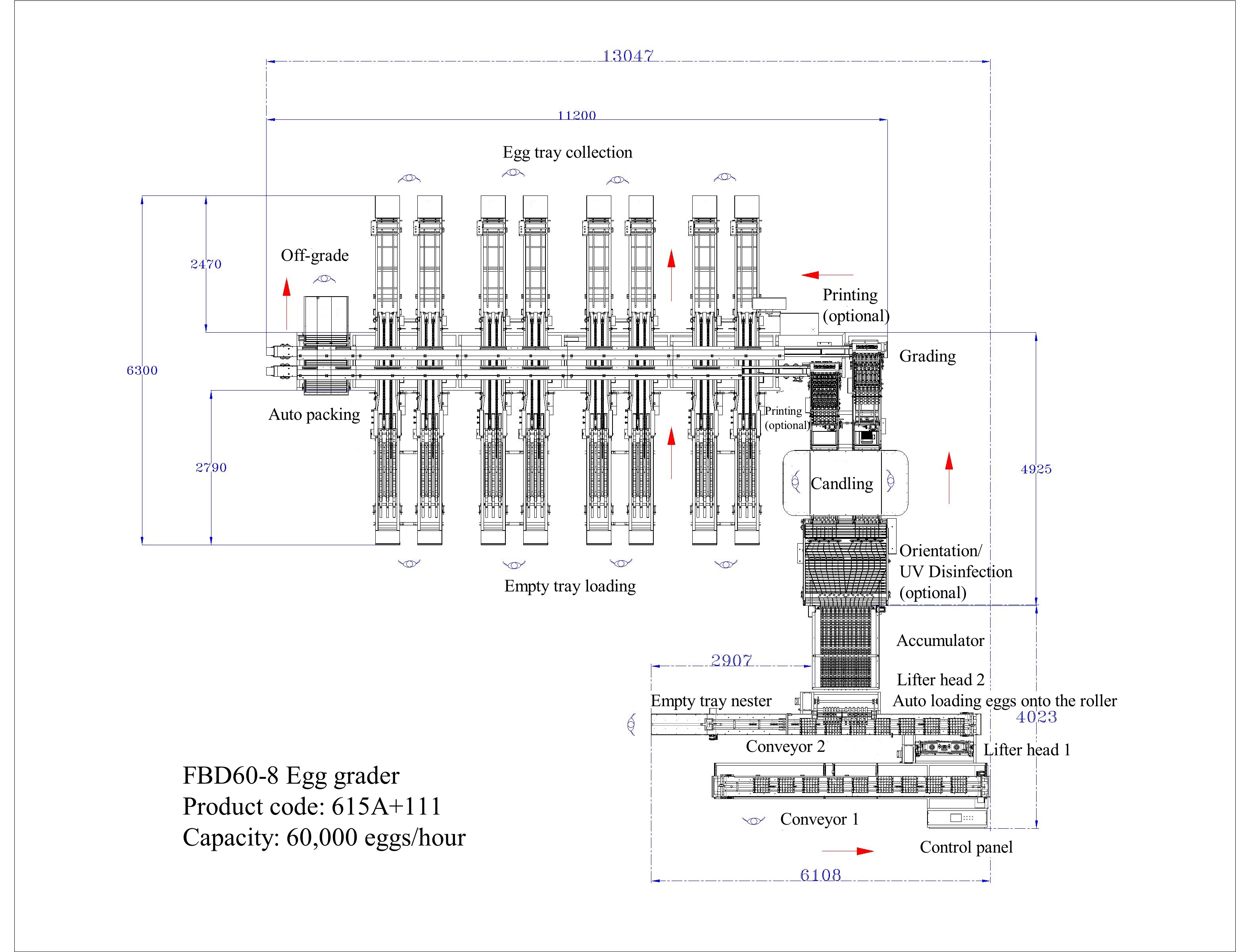

Ideally, connecting to the rod conveyor from chicken shed

Automatic head turning


UV sterilizing (optional)


6-row candling booth with candling cover and mirror

Elextronic egg weighing system

Manual empty tray loading

Auto empty tray de-nesting (optional)


Automatic packing

Loaded egg tray collection

Off grade


Color touch screen & physical button control panel

Touch screen user interface

Egg printer (optional)

Visual AI egg detector (optional),
Two types of imaging processing: White light imaging and Near-infrared imaging

ZENYER Visual AI detector (optional)

Price for ZENYER 111 egg grader : Only CNY1,340,000.00
consist of :

  • Accumulator ( candler & head turning included)

  • The 111 main machine (Grading & counting included)

  • Auto-packer (8 Units)
  • Off-grade table (1 unit)

Option: (Pre-order)



FBD170-8 Egg grader Brochure
