Egg washer

Name:203A Egg washer

Product Code:203A

Capacity:20,000 eggs/hour

Function:Accumulator, candling, sanitizer sprayer, washing, drying



Details


Overview
The ZENYER 203A egg washer is a high-efficiency industrial-grade solution engineered for large-scale egg processing operations. this model integrates two single-row systems to deliver a remarkable capacity of 20,000 eggs per hour. It combines egg accumulation, candling, orienting, sanitizing, washing, and drying into one seamless workflow, with optional accessories available for full automation and traceability. Ideal for demanding production environments, it ensures thorough cleaning, effective drying, and compatibility with grading systems for end-to-line efficiency.

Features:

  • Robust Stainless Steel Construction
    Manufactured from high-quality stainless steel to ensure long-term durability, corrosion resistance, and compliance with hygiene standards.

  • High-Capacity Dual-Row Design
    Combines two single-row egg washers for a total throughput of 20,000 eggs per hour, meeting high-volume cleaning and drying demands.

  • All-in-One Automated Process
    Integrates accumulation, candling, orienting, sanitizing, washing, and drying in one continuous system. Optional upgrades include an auto egg loader, egg printer, and manual collection conveyor.

  • Efficient Loading & Candling
    Eggs are manually loaded in batches of 30 using the 602 vacuum egg lifter. A 6-row candling section with LED lighting, candling cover, and mirror allows visual inspection and removal of defective eggs.

  • Orientation
    An orientator smoothly directs six rows of eggs into two single rows, feeding them into the dual washing units.

  • Automatic Sanitizing
    A proportional doser automatically sprays customer-supplied sanitizer or detergent onto eggs to ensure food safety compliance.

  • Thorough Brush Washing
    Eggs are cleaned with rotating brushes and warm water for effective dirt removal (water heater available as an optional accessory).

  • Advanced Drying Performance
    Brushes remove excess water, and a dedicated drying system achieves 95%–99% dryness depending on ambient humidity.

  • Seamless Grading Line Integration
    Designed to connect with the ZENYER 107 egg grader to form the ZENYER 303A egg washing and grading line, maintaining a capacity of 20,000 eggs per hour.



Commodity Egg washer
Product code 203A
Model ZYX-JS2-3-(P)
Capacity 20,000 eggs/hour
Material Stainless steel
Power 21.46KW
Voltage 380V, 50HZ, 3-phase
Dimension (L*W*H) 12.16*5.56*2.0 M
Net weight 1830KG
Gross weight 2610KG
Function Accumulator & candling,sanitizer sprayer,
brush washing & drying, optional printer ,
vacuum egg lifter and manual collection
conveyor

ZENYER 203A Egg washer

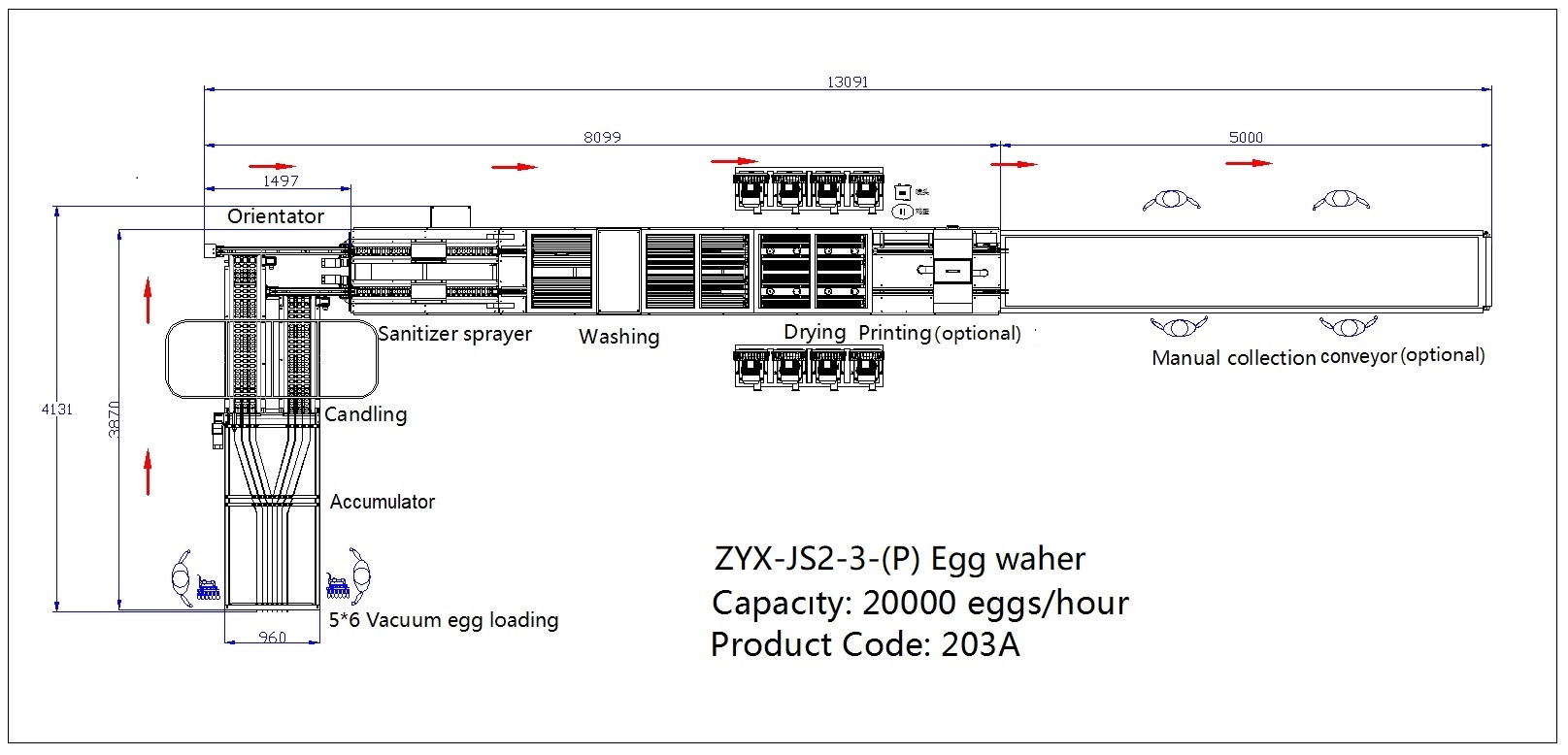

ZENYER 203A Egg washer floor plan

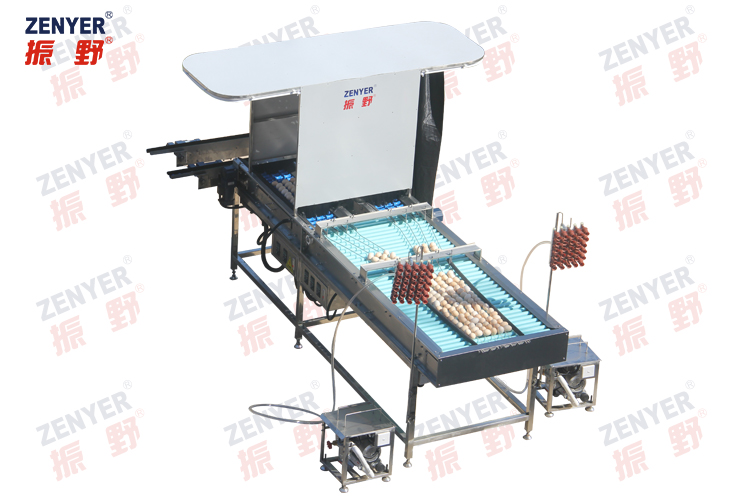

The accumulator

LED Candler
with a candling cover and mirror

Orientator

Sanitizer sprayer


Egg washing with brushes and warm water


Remarkable Drying system

Manual collection conveyor  (optional)

For ZENYER 203A egg washer without manual collection conveyor: Only CNY346,500.00

Option:

  • The 608D manual collection conveyor (7.5 meters): CNY33,700.00

(Pre-order)



203A Egg washer Brochure
