Name：ZYF-DS1-Z Egg grader (104BZ)
Product Code：104BZ
Capacity：10,000 eggs/hour
Function：accumulator, candling, grading & counting,auto packing
Details
Features:
-
Constructed from high quality stainless steel for great durability and hygiene.
-
Equipped a colour touchscreen control panel with self-diagnose system and can sort eggs into 4 grades with accuracy ±1g.
-
Head turning makes sure the eggs are orientated with the bigger head (air chamber) on top for longer storage before getting packed.
-
-
auto-packer includes an empty tray transfer conveyor,a drop-set unit and egg tray collection conveyor. Empty trays need to be manually placed in the empty tray conveyor, allowing the conveyor to send the empty trays to where the eggs will drop from. The drop-set unit supports the 10, 12, 15, 18, 30 egg cartons/trays for each fill, and then the egg tray collection conveyor takes the loaded trays/cartons to the end, you can pack the egg trays/cartons in the box from there.
-
Can be connected with the rod conveyor from chicken shed.
-
Connecting with the ZENYER 202A egg washer to build the ZENYER 302AZ egg processing line with a capacity of 10,000 eggs/hour.
|
Commodity |
Egg grader |
|
Product code |
104BZ |
|
Model |
ZYF-DS1-Z |
|
Capacity |
10,000 eggs/hour |
|
Material |
Stainless steel |
|
Accuracy |
±1g |
|
Grade |
4 |
|
Power |
2.38KW |
|
Voltage |
380V,50HZ,3-phase |
|
Dimension(L*W*H) |
6.4 * 5.9 * 2 M |
|
Net weight |
1030KG |
|
Gross weight |
1490KG |
|
Function |
accumulator & candling,grading & counting,
auto packing,manual collection table,
optional vacuum egg lifter and egg printer |

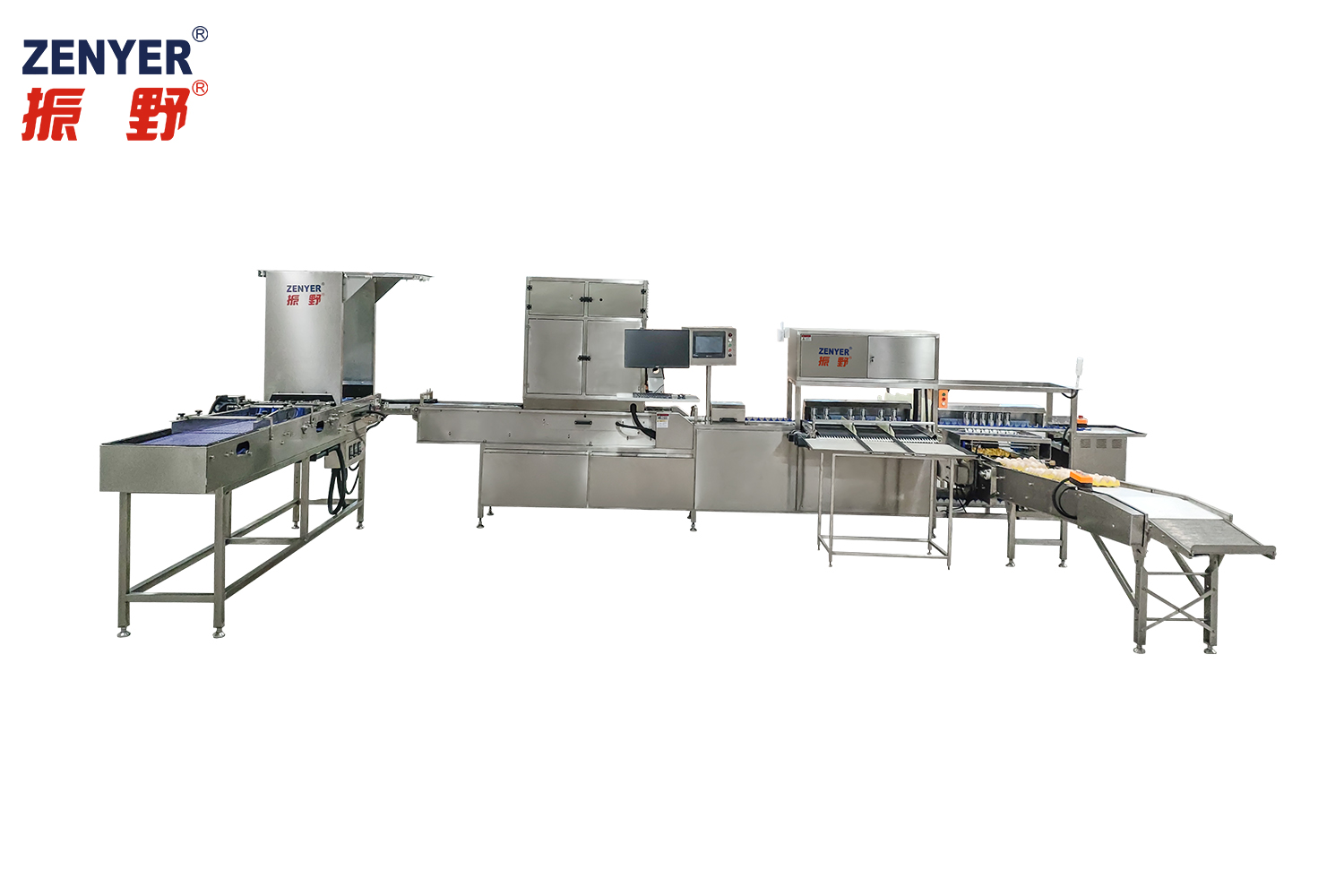

ZENYER 104BZ Egg grader

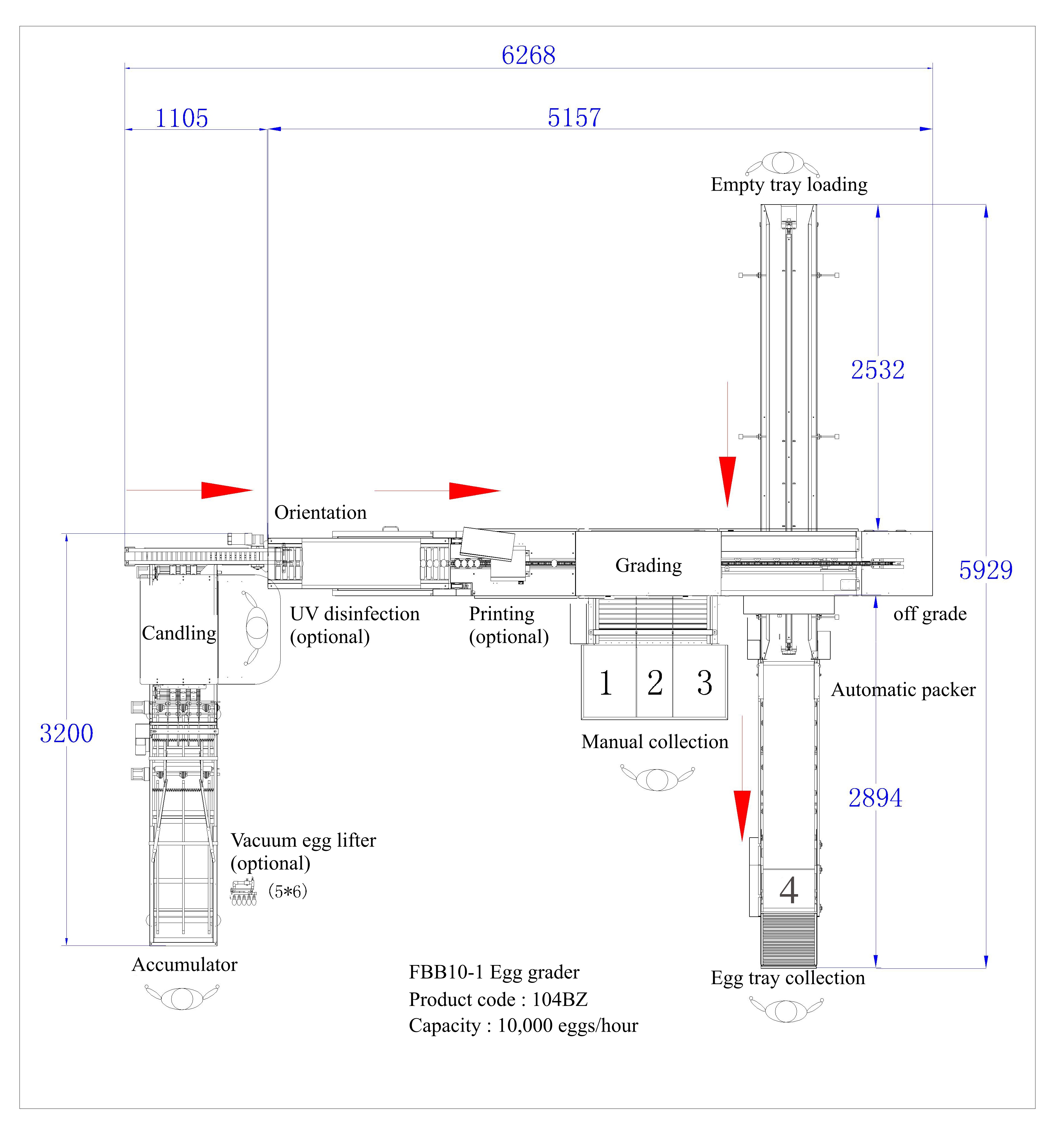

104BZ egg grader floor plan
ZENYER 605A accumulator includes the Orientator which can direct 6 lines of eggs into 1 line
The 6-row candler with a candling cover and mirror
Automatic head turning
Electronic egg weighing system
Auto packing and manual collection table
Colour touch screen & phsical button control panel
ZENYER 602 Vacuum egg lifter for optional
ZENYER 401H Egg printer matches on the 104BZ egg grader (for optional)
Price for ZENYER 104BZ egg grader : Only CNY217,000.00
Consist of :
-
The 605A Accumulator (candling included)
-
Manual collection table (1 unit)
Option:
(Pre-order)
ZYF-DS1-Z Egg grader (104BZ) Brochure
