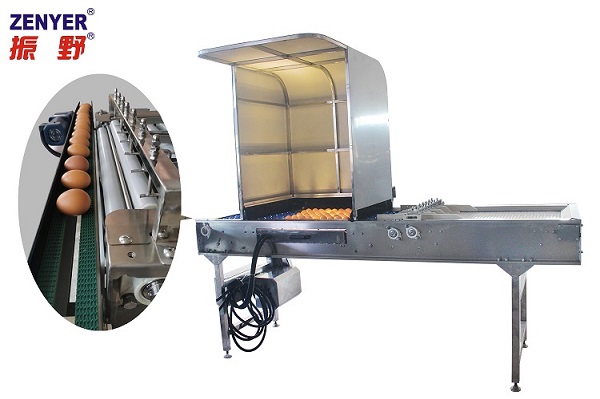

Name：605A Accumulator

Product Code：605A

Capacity：10,000eggs/hour

Function：Accumulator & candling & orientator

Details

Features:

• Made of strong stainless steel for great durability and hygiene.

• ZENYER 605A accumulator Includes a roller conveyor, 6-row candler and orientator.

• Can vacuum load 30 eggs onto the 605A accumulator at a time by using the 602 vacuum egg lifter.

• When eggs pass through the candling section, the cracking, dirty or otherwise unqualified eggs can be inspected through LED light and be picked out manually. The candler includes a candling cover as well as a mirror to enforce the candling result.

• The orientator would direct 6 lines of eggs into 1 line and transfer the eggs onto single conveyor egg washer or egg grader smoothly.

• Equipped with a control panel, you can adjust their speeds through the up and down arrows to match the capacity of other equipment which it would be used with.

• Ideally, connect with the ZENYER 104A egg grader, the 104B egg grader, or the 202A egg washer.

Commodity	Accumulator
Product code	605A
Model	ZYS-DS60/300
Power	398W
Voltage	220V, 50HZ, Single phase
Dimension (L*W*H)	3.03*1.28*2.0 M
Net weight	250KG
Gross weight	350KG
Function	Roller conveyor & candling & orientator and optional vacuum egg lifter

The 605A Accumulator includes the orientator which can direct 6 lines of eggs into 1 line

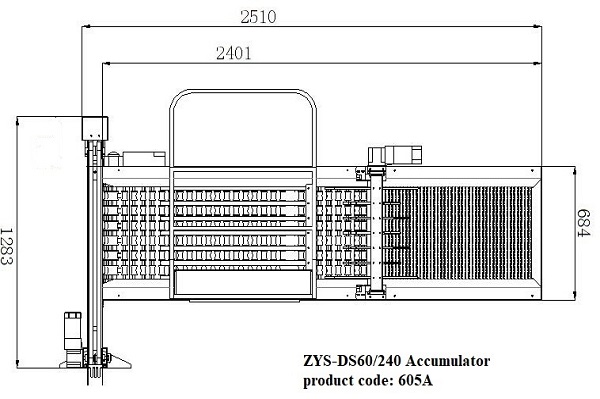

Floor plan

Orientator ( direct 6 lines into 1 line)

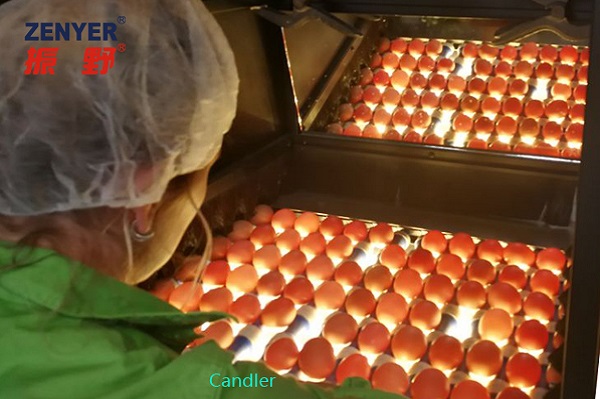

The 6-row candler with a candling cover and mirror

Control panel

ZENYER 602 Vacuum egg lifter for optional

Vacuum lifting 30 eggs per time

For ZENYER 605A Accumulator (Candling booth and orientator included) : Only CNY41,400.00

(Pre-order)

605A Accumulator Brochure
