Name：300A Egg processing line

Product Code：300A

Capacity：3,000 eggs/hour

Function：Candling,sanitizer sprayer, washing, drying,grading

Details

• Made of stainless steel for better durability, corrosion resistance and hygiene.

• ZENYER 300A egg processing line is comprised of ZENYER 200A egg washer, 604A accumulator  and 101B egg grader.

• Including single roller conveying, candling, sanitizer sprayer, washing, drying, accumulator, grading & candling and optional egg printer with a capacity of 3,000 eggs/hour.

• Eggs are vacuum lifted and loaded onto the accumulator (with the single roller conveyor) using the 602 vacuum egg lifter and then the accumulator will transport eggs to the single row egg washing machine.

• Only half the regular labour is needed for egg loading if used with the 604AS accumulator and 602 vacuum egg lifter .

• Can be installed either in a straight line, or in a right angle.

Commodity	Egg processing line
Product code	300A
Model	ZYL-J1-J2
Capacity	3,000 eggs/hour
Material	Stainless steel
Power *	6.02KW
Voltage	220V, 50HZ, Single phase 380V, 50HZ, 3-phase
Dimension (L*W*H)	7.13*1.57*1.6 M
Net weight *	580KG
Gross weight *	850KG
Function	Candling,sanitizer sprayer,washing, drying , accumulator, grading

* Power, net weight and gross weight are calculated according to the floor plan below.

The ZENYER 300A Egg processing line

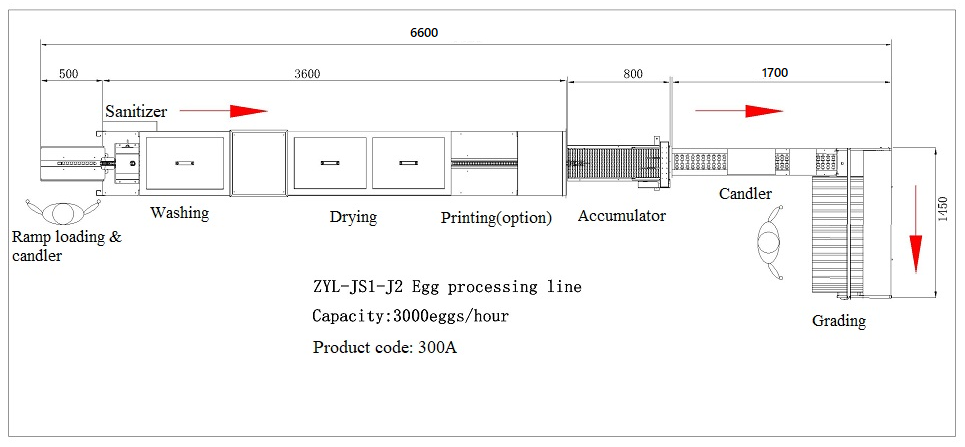

Straght line floor plan

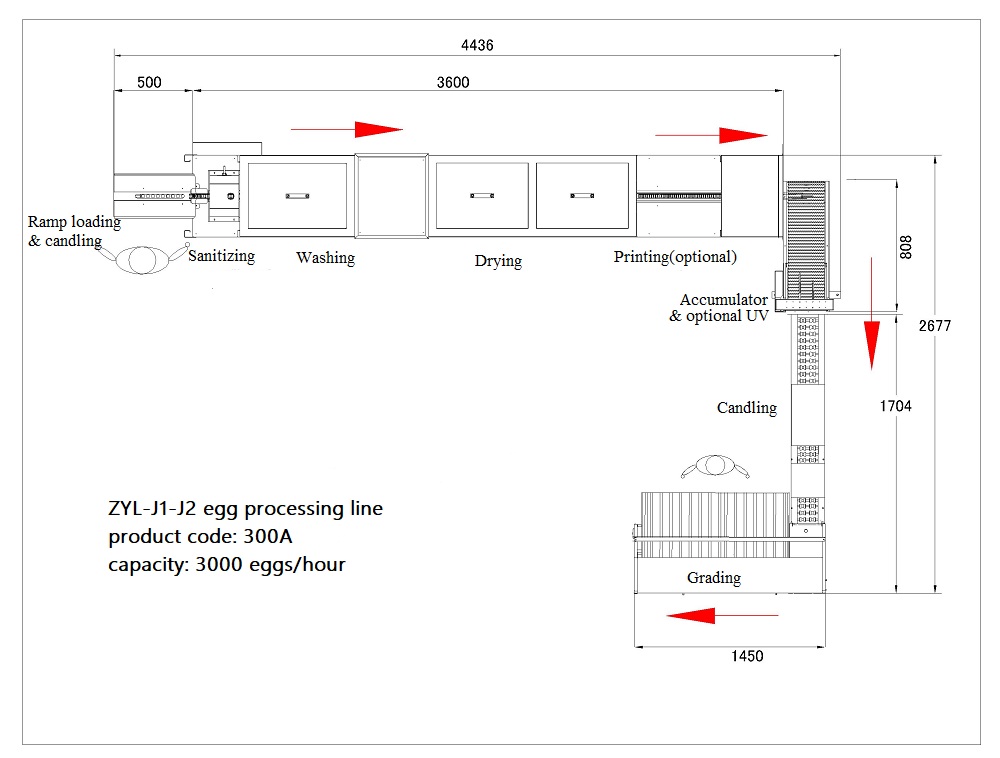

Left turn floor plan

ZENYER 200A egg washer

ZENYER 604A accumulator

ZENYER 101B egg grader

 ZENYER 602 Vacuum egg lifter system

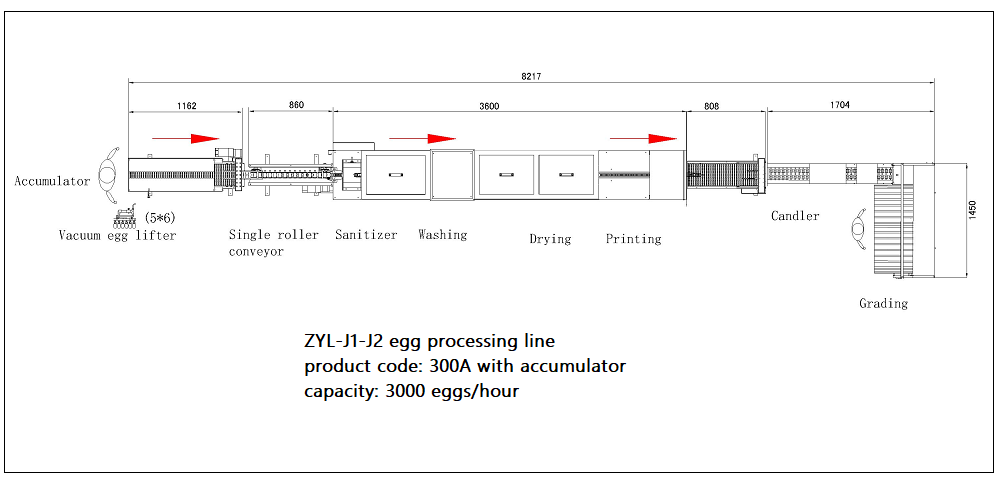

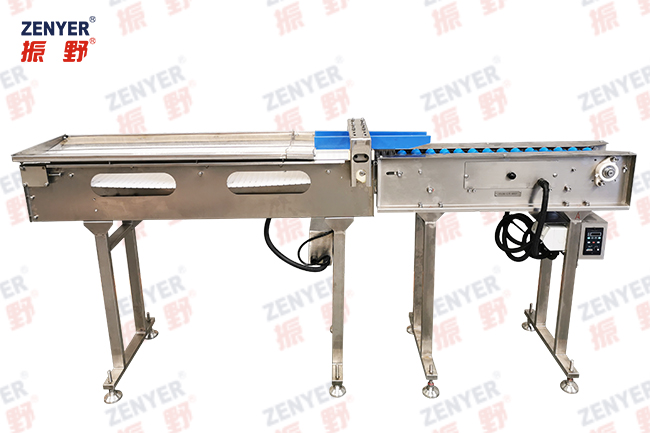

The 604AS accumulator & 602 vacuum egg lifter for egg loading (optional)

Control panel

Price for ZENYER 300A Egg processing line standard configuration: Only CNY137,050.00
Consist of :

• The 200A Egg washer  (Washing & Drying included)

• The 604A  Accumulator

• The 101B egg grader (Grading & candling included)

Option:

• The 602 Vacuum egg lifter : CNY8,750.00

• The 604AS accumulator : CNY12,350.00

• The 401H egg printer : CNY22,000.00

(Pre-order)

300A Egg processing line Brochure
