Egg grader

Name：FBB10-3 Egg grader (104A)

Product Code：104A

Capacity：10,000 eggs/hour

Function：Automatic head turning,grading & counting,auto-packer



Details

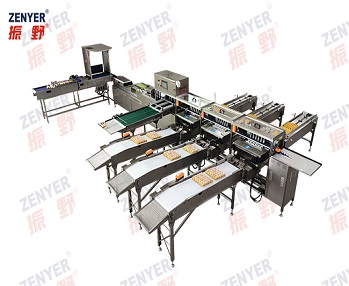

ZENYER 104A Egg grading machine

Engineered with high-quality stainless steel for superior durability and hygienic performance, the ZENYER 104A delivers a complete automation solution for modern egg processing facilities, achieving a throughput of 10,000 eggs per hour.

Features:

• End-to-End Automated Processing
Integrates accumulator & candling, head turning(orientation), precision grading & counting, and auto-packing functions in one continuous system, with optional 602 vacuum egg lifter and 401H egg printer for complete production line configuration.

• Intelligent Orientation System
Automatically positions eggs with the larger head (air cell) facing upward, extending shelf life by ensuring optimal orientation before packaging.

• Precision Electronic Grading
Utilizes advanced electronic weighing technology to sort eggs into 4-7 precise weight grades with ±1g accuracy, while providing real-time counting data for each grade and total output.

• Advanced Control System
Features color touchscreen interface with PLC control for intuitive operation, allowing easy adjustment of grading parameters, accuracy calibration, and system monitoring.

• Flexible Auto-Packing System
Supports multiple carton configurations (10, 12, 15, 18, 30 eggs) with manual loading of empty cartons onto the conveyor system. The modular design allows expansion from 3 to 4 auto-packers based on production requirements.

• Enhanced Food Safety
Optional UV disinfection module sanitizes egg shells effectively, providing an additional layer of protection for maximum food security.

• Self-Diagnosis Capability
Integrated fault detection system automatically identifies operational issues, minimizing downtime and ensuring consistent production flow.

• Seamless Line Integration
Compatible with ZENYER 202A egg washer main unit to form the complete ZENYER 302A egg washing and grading line, maintaining full capacity of 10,000 eggs per hour.

Commodity Egg grading machine
Product code 104A
Model FBB10-3
Capacity 10,000 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 4-7
Power * 5.22KW
Voltage 220-240V, 50HZ, Single phase / 380-415V,50HZ,3-phase
Dimension (L*W*H) 9.11*5.93*2.0 M
Net weight * 1930KG
Gross weight * 2850KG
Function Accumulator & candling,orientation, grading & counting, auto-packer(3) and manual packing lane(1),optional vacuum egg lifter and printing
* Power, net weight and gross weight are calculated according to the floor plan below.



ZENYER 104A egg grader (with 2 auto-packers and 1 packing lane)

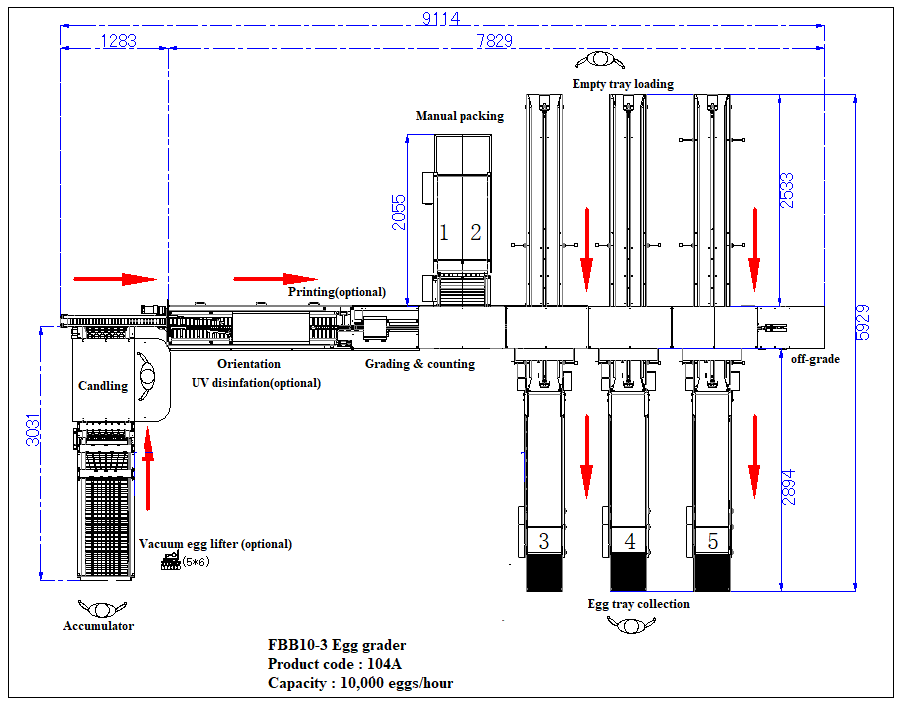

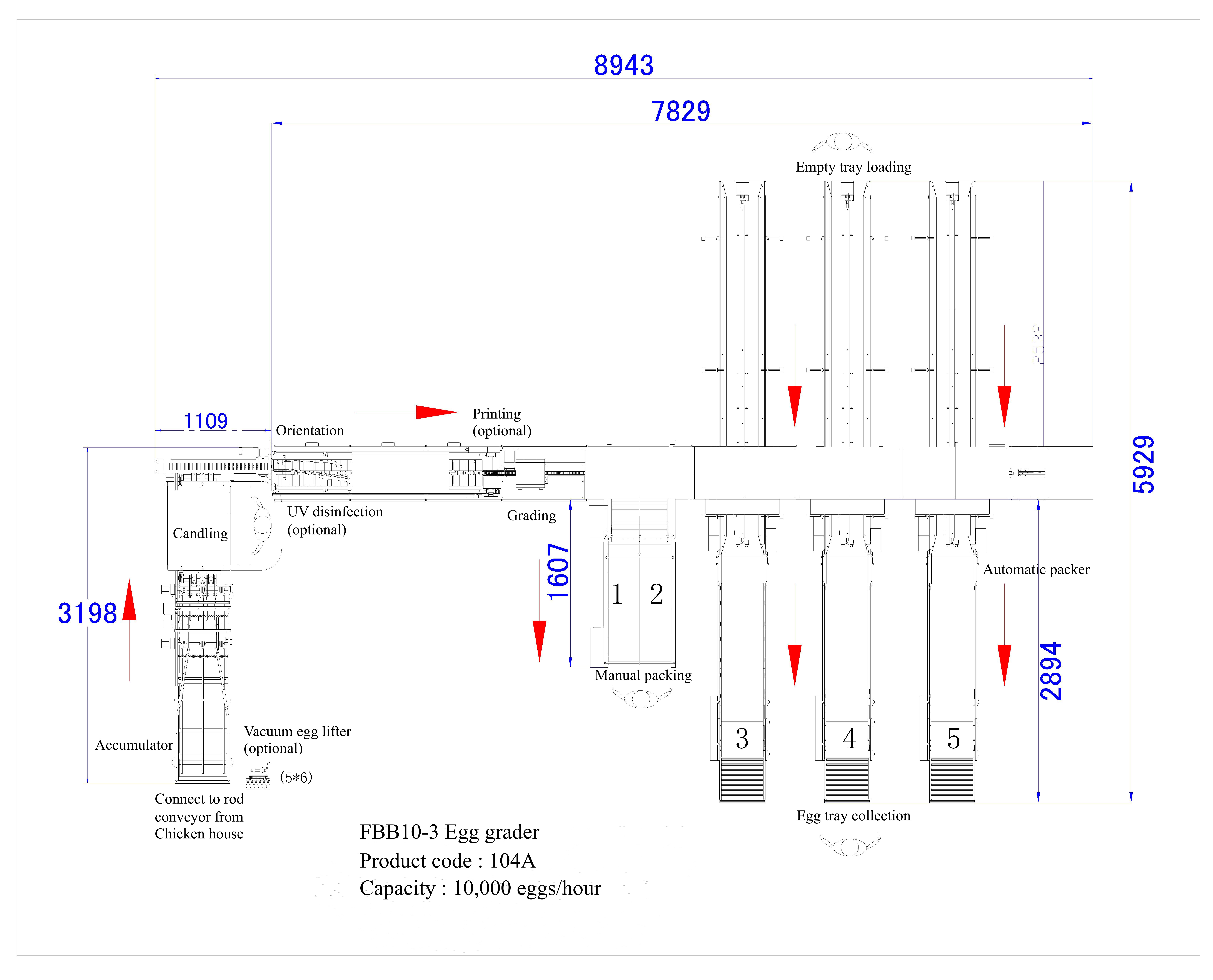

Floor plan with 3 auto-packers and 1 manual packing lane (Right hand side)

ZENYER 605A accumulator includes the Orientator which can direct 3 lines of eggs into 1 line

The 6-row candler with a candling cover and mirror

Automatic head turning

Electronic egg weighing system

Empty tray transfer conveyor

Drop-set unit

Egg tray collection conveyor

Manual packing lane

Color touch screen & physical button control panel

ZENYER 602 Vacuum egg lifter for optional

Vacuum lifting 30 eggs per time

ZENYER 401H Egg printer matches on the 104A egg grader (for optional)

ZENYER Visual AI detector (optional)

Price for ZENYER 104A egg grader : Only CNY418,600.00
Consist of :
  • The 605A Accumulator (candling included)
  • The 104A Main machine

  • Auto-packer (3 Units)

  • Manual packing lane (1 unit)


Option:
  • The 410X Visual AI Detector : CNY162,500.00
(Pre-order)




FBB10-3 Egg grader (104A) Brochure
