Name：302A Egg washing grading line
Product Code：302A
Capacity：10,000eggs/hour
Function：Washing & drying, grading, auto-packer
Details
ZENYER 302A Egg Washing & Grading Line – Features & Benefits
-
Durable Stainless Steel Construction
Made of stainless steel for better durability, corrosion resistance and hygiene, ensuring reliable long-term operation.
-
Fully Integrated Washing & Grading Solution
ZENYER 302A egg washing grading line is comprised of the
605A accumulator, 202A egg washer main machine and the
104A egg grader main machine with a capacity of 10,000 eggs/hour.
-
Comprehensive Processing Functions
Includes egg accumulator & candling, sanitizer sprayer, brush washing and drying, orientation, egg grading & counting, auto-packer and manual packing functions
Optional upgrades include:
602 vacuum egg lifter for improved loading efficiency
401H egg printer for date coding and traceability
UV Disinfection for enhanced food safety
-
Clear & Simple Operation Panel
The 202A egg washer main machine is equipped a free standing control panel, and the 104A egg grader main machine has a color
touchscreen control panel, they are interlock controlled with each other for safety reasons.
-
Enhanced Candling Inspection
The Zenyer 605A accumulator has a candling booth, you can check for cracked, dirty or otherwise unqualified eggs through the
lights by sight, and manually take them out, a candling cover and a mirror for better candling results.
-
Excellent cleaning and drying effect
This model of egg washer satisfied the egg cleaning and drying requirements very well.
Equipped with
3 auto-packers, with the option to add a
4th auto-packer if needed.
Auto-packers support
10, 12, 15, 18, and 30-egg cartons/trays (each auto-packer handles one egg size).
The
manual packing lane can pack up to
2 egg sizes simultaneously, providing additional flexibility.
An available
Ultra-Violet disinfection system sanitizes eggshells for maximum food security.
-
Remote Monitoring & Diagnostics (Wi-Fi Ready PLC Control System)
Supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet. In the event of software-related issues, our service team can access the system remotely (with customer permission) to quickly troubleshoot and resolve problems, helping minimize downtime and maintain continuous, efficient operation.
|
Commodity |
Egg washing grading line |
|
Product code |
302A |
|
Model |
ZYL-JS1-D1-3ZP |
|
Capacity |
10,000 eggs/hour |
|
Accurary |
±1 g |
|
Material |
Stainless steel |
|
Power |
15.29KW |
|
Voltage |
380V, 50HZ, 3-phase |
|
Dimension (L*W*H) |
15.71*5.93 *2.0 M |
|
Net weight |
2920KG |
|
Gross weight |
4300KG |
|
Function |
Accumulator & candling, sanitizer sprayer,washing,
drying , orientation, grading & counting, auto-packing,
manual packing lane . optional vacuum egg
lifter and egg printer. |
* Power, net weight and gross weight are calculated according to the floor plan below.
ZENYER 302A Egg washing grading line

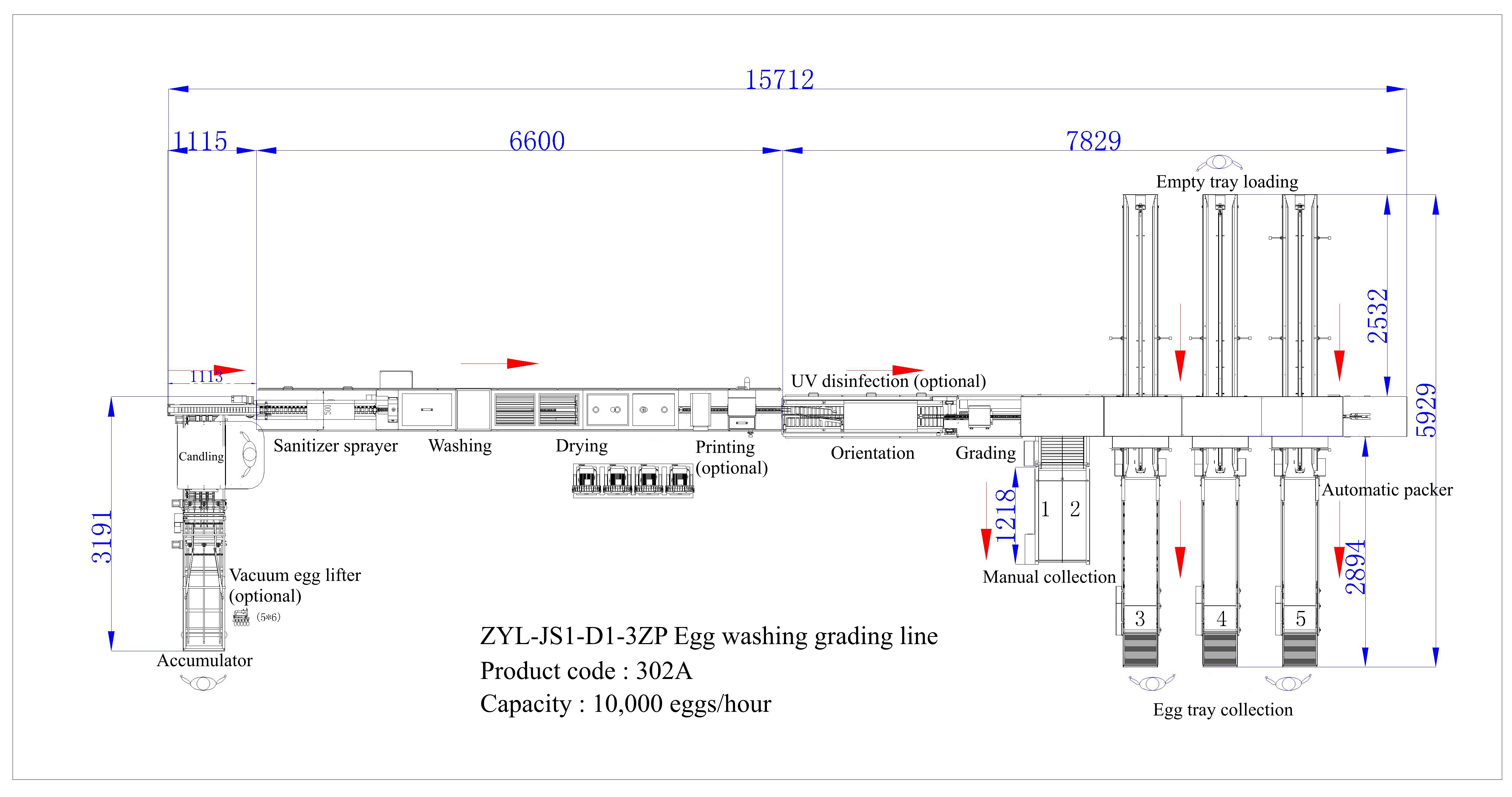

302A Egg washing grading line floor plan-right side
ZENYER 605A accumulator
Zenyer 202A egg washer (with the 605AS accumulator and manual collection conveyor)
Zenyer 104A egg grader(with 2 auto packers and 1 manual packing lane)
ZENYER 602 Vacuum egg lifter
ZENEYR 401H Egg printer
Color touch screen & physical button control panel for egg grader
Free standing control panel for egg washer
ZENYER Single row Visual AI detector (optional)
For ZENYER 302A egg washing grading line standard configuration: Only CNY556,600.00
consist of :
Option:
-
The 410X Visual AI Detector ：CNY163,800.00
(Pre-order)
302A Egg washing grading line Brochure
