Made of stainless steel for better durability, corrosion resistance and hygiene.

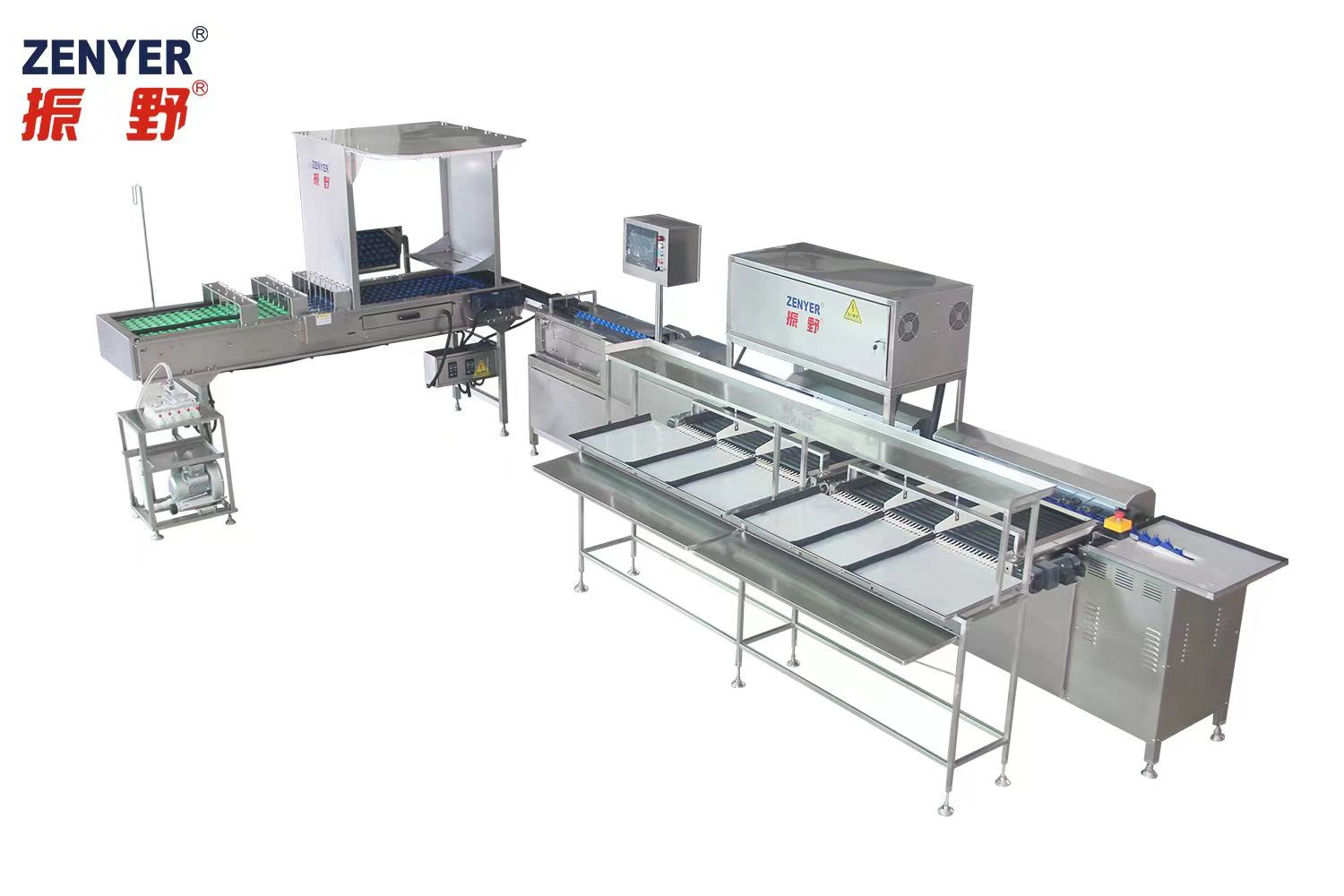

ZENYER 302BS duck egg washing grading line consists of ZENYER 202B egg washer and 104B egg grader with a capacity of 10.000 eggs/hour.
It designed for DUCK egg processing, and satisfied duck egg cleaning and drying requirements well.
Includes a water bath (for egg loading), washing and drying, grading, counting and munaual collection functions, and optional candler and UV disinfection.
The 202B egg washer is equipped a free standing control panel, and the 104B egg grader has a color touchscreen control panel, they are interlock controlled with each other for safety reasons.
Pour the whole box or tray of eggs into the water bath, and the eggs will be transported into washing system through the conveyor. This loading method not only saves time but also minimizes egg cracks by using buoyancy. Plus, eggs are easier to wash after running through a water bath.
Commodity
Duck egg washing grading line
Product code
302BS
Model
ZYL-YS1-D1-C
Capacity
10,000 eggs/hour
Material
Stainless steel
Power
12.32KW
Voltage
380V,50HZ,3-phase
Dimension (L*W*H)
11.97*1.7*2 M
Net weight
1150KG
Gross weight
1640KG
Function
Water bath loading,washing,
drying , grading & counting,
manual collection table.optional
Candler and UV sterilizing
* Power, net weight and gross weight are calculated according to the floor plan below. ZENYER 302BS Duck egg washing grading line ZENYER 302BS Duck egg washing grading line floor plan ZENYER 202B egg washer ( with 608C manual collection conveyor ) Zenyer 104B egg grader (with the 605A accumulator) ZENEYR 401H Egg printermatches on the 104B egg grader (for optional)
For ZENYER 302BS egg washing grading line standard configuration:Only CNY253,600.00 consist of :
The 202B main machine (Water bath loading, Washing & drying included)
The 104B main machine (Grading & counting included)
