Egg grader

Name：FXB10 Egg grader (104B)

Product Code：104B

Capacity：10,000 eggs/hour

Function：grading & counting



Details


ZENYER 104B Egg Grader

Engineered for performance and built to last, the ZENYER 104B Egg Grader combines industrial-grade durability with precision sorting technology to meet the demands of high-volume egg production and packing operations.

Features:

• Robust Stainless Steel Construction
Crafted from high-quality stainless steel to ensure superior durability and ease of cleaning, maintaining hygiene standards in demanding environments.

• Complete and Expandable System
The system includes the 605A accumulator, grading & counting, and manual collection table as standard components. Its functionality can be further expanded with optional accessories such as the 602 vacuum egg lifter and the 401H egg printer.

• Smart Touchscreeen Control System
Features a user-friendly digital touchscreen and an automated PLC control system for precise operation, easy parameter setting, and real-time monitoring.

• High-Precision Weighing & Grading
Accurately sorts eggs into up to 6 distinct weight grades using an advanced electronic scale, achieving a precision of within ±1 gram.

• Seamless line Integration
Can be directly connected with the ZENYER 202A Egg Washer to form a ZENYER 302AS egg washing grading line, enabling integrated washing and grading at a total capacity of 10,000 eggs/hour.

Commodity Egg grader
Product code 104B
Model FXB10-2
Capacity 10,000 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 6
Power 1.27KW
Voltage 220-240V, 50HZ, Single phase /
380-415V, 50HZ, 3-phase
Dimension(L*W*H) 5.94 * 3.3 * 2 M
Net weight 800KG
Gross weight 1130KG
Function accumulator & candler,grading & counting,
manual collection table,optional vacuum
egg lifter and egg printer


ZENYER 104B Egg grader with 605A accumulator

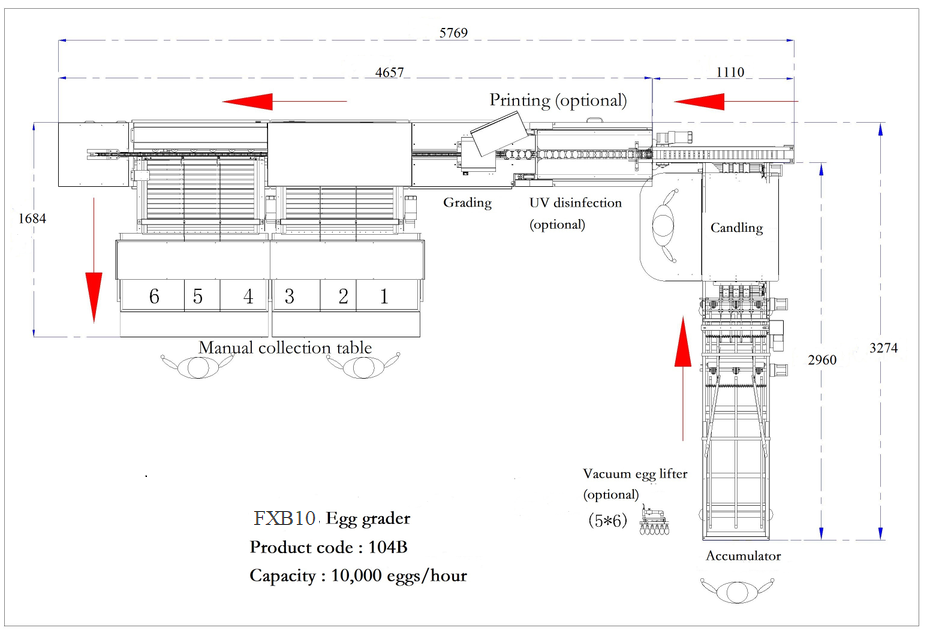

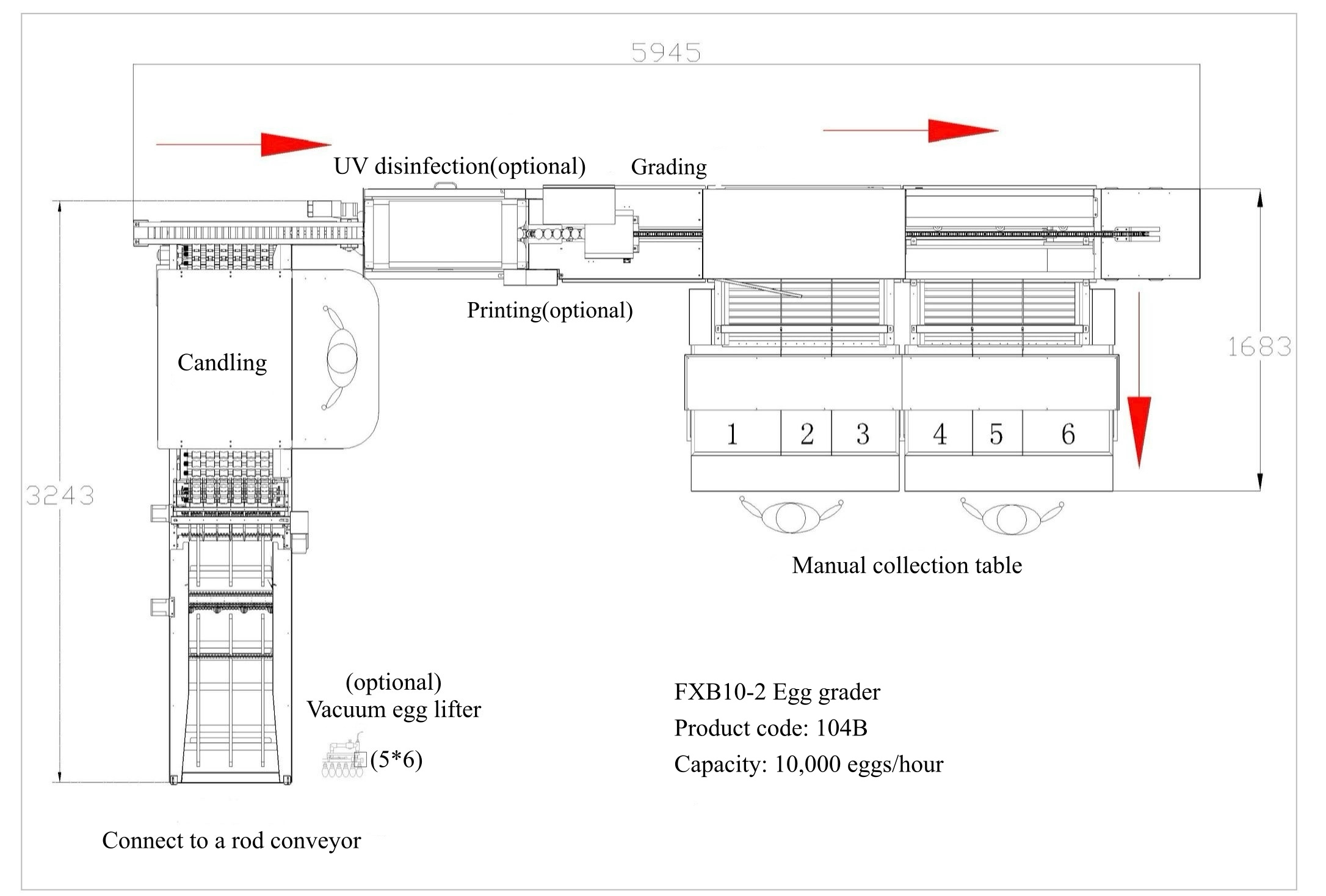

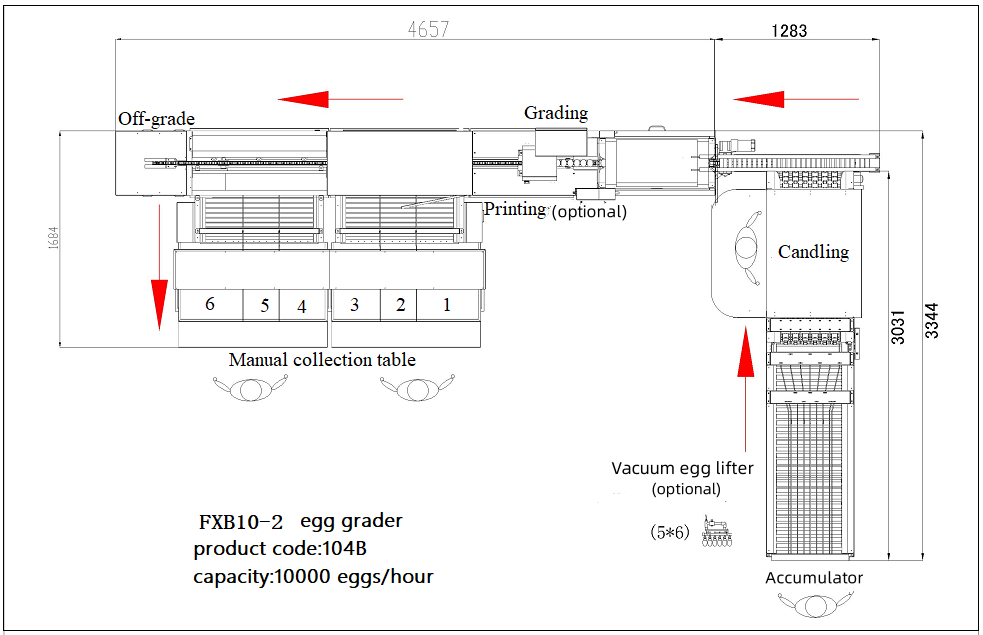

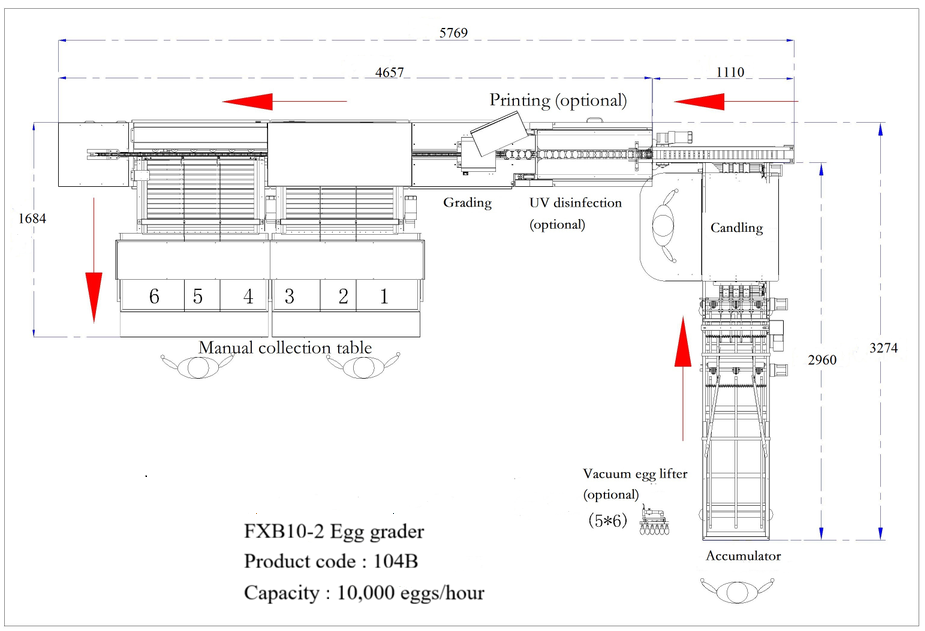

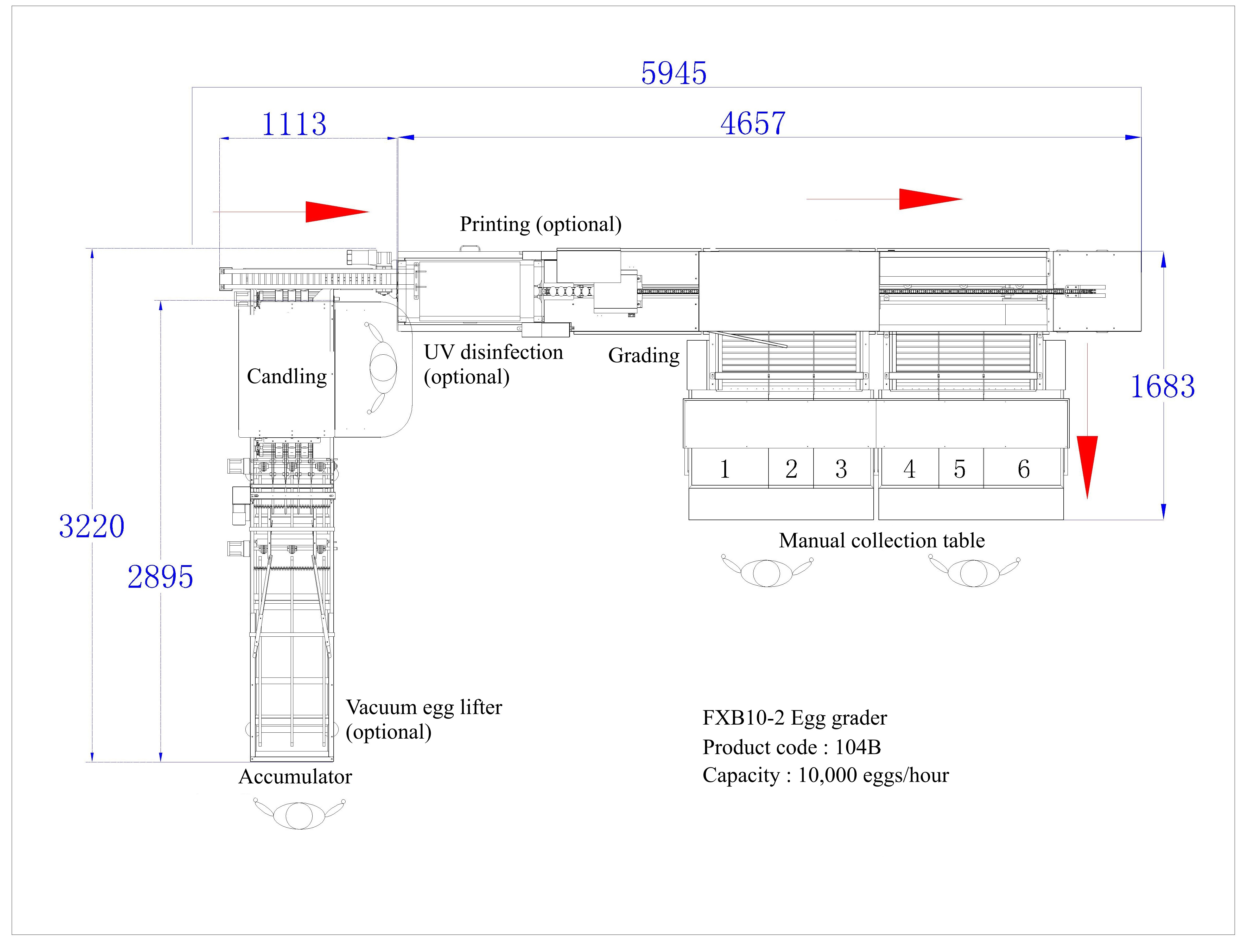

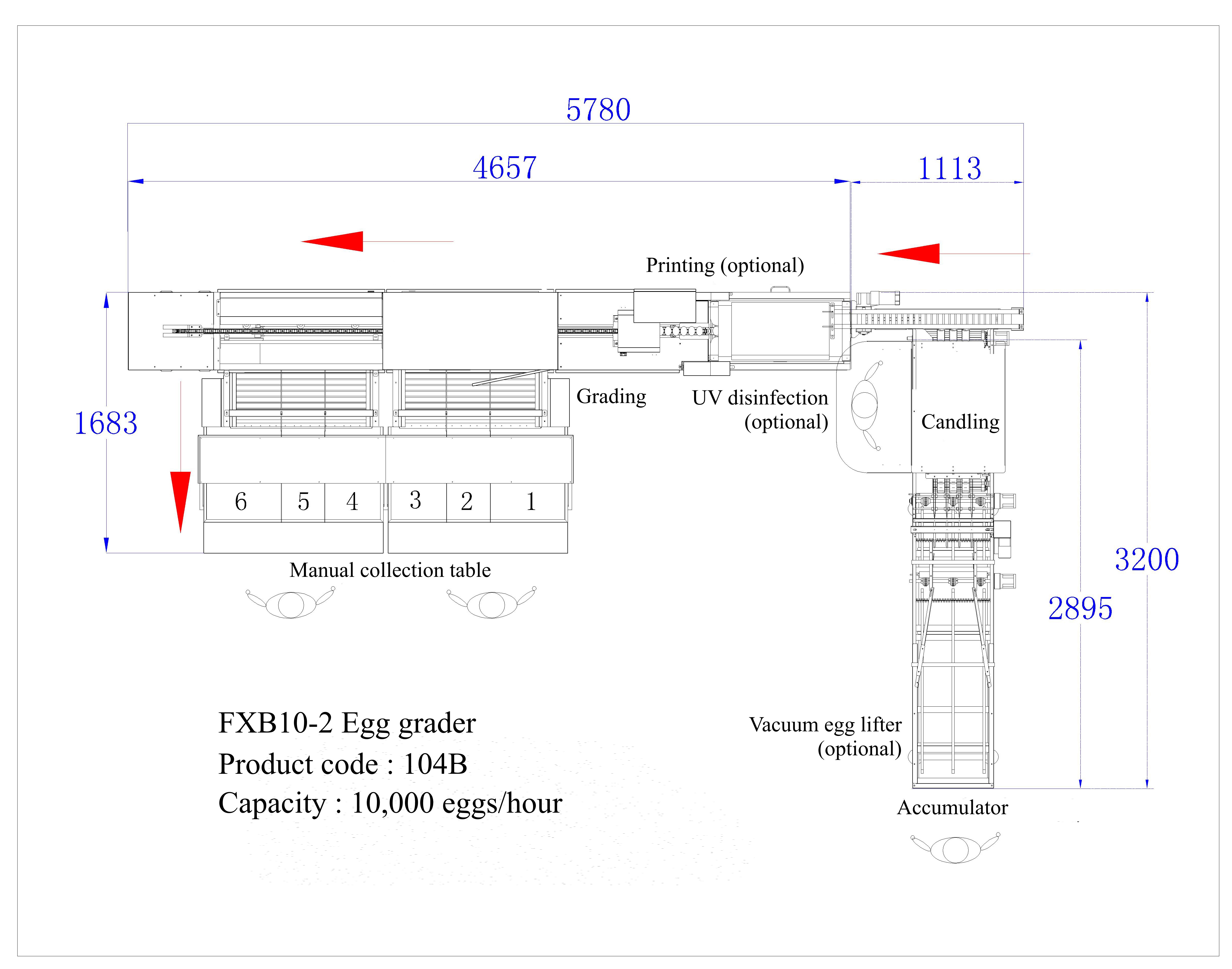

104B egg grader with 605A Accumulator floor plan

Electronic egg weighing system

Electronic egg weighing system

Electronic egg weighing system

Electronic egg weighing system

Colour touch screen & phsical button control panel

ZENYER 605A accumulator includes the Orientator which can direct 6 lines of eggs into 1 line

The 6-row candler with a candling cover and mirror

ZENYER 602 Vacuum egg lifter for optional

Vacuum lifting 30 eggs per time

ZENYER 401H Egg printer matches on the 104B egg grader (for optional)

ZENYER Visual AI detector (optional)

Price for ZENYER 104B egg grader : Only CNY154,700.00
Consist of  :
  1. The 605A Accumulator (candling included)
  • Egg grading & counting

Option:
  • The 410X Visual AI Detector: Only CNY162,500.00

(Pre-order)



FXB10 Egg grader (104B) Brochure
