Name：302AS Egg washing grading line
Product Code：302AS
Capacity：10,000 eggs/hour
Function：Washing & Drying, grading & counting
Details
ZENYER 302AS Egg Washing & Grading Line – Features & Benefits
-
Stainless Steel Construction • Premium Quality
Made of stainless steel for better durability, corrosion resistance and hygiene, ensuring long service life even in demanding egg processing environments.
-
Complete Egg Washing & Grading Solution
ZENYER 302AS egg processing line is comprised of the
605A accumulator, the
202A egg washer main machine, the
104B egg grader main machine with a capacity of 10,000 eggs/hour.
Includes egg accumulator & candling, sanitizer sprayer, washing, drying, grading & counting, manual collection functions,
Optional upgrades include:
602 vacuum egg lifter for easier loading
401H egg printer for traceability and batch coding
UV Sterilization for maximum food safety
-
Efficient & Flexible Operation
The
202A Egg Washer features a
free-standing control panel.
The
104B Egg Grader is equipped with a
color touchscreen control panel for setting grading specifications and monitoring output.
Both are
interlock-controlled for safe and synchronized operation.
-
Enhanced Candling Inspection
The Zenyer 605A accumulator has a candling booth on it, you can check for any cracked, dirty or otherwise unqualified eggs through the LED light by eyes, and manually take them out. There is a also a candling cover and a mirror for better candling results.
-
Excellent cleaning and drying effect
This model of egg washer satisfied the egg cleaning and drying requirements very well.
-
Accurate Grading with Manual Collection
The
104B Egg Grader sorts eggs into
6 sizes with an accuracy of
±1 gram. Graded eggs flow to a
manual collection table, where operators can gather eggs from each channel and pack them into trays or cartons.
-
Remote Monitoring & Diagnostics (Wi-Fi Ready PLC Control System)
Supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet. In the event of software-related issues, our service team can access the system remotely (with customer permission) to quickly troubleshoot and resolve problems, helping minimize downtime and maintain continuous, efficient operation.
|
Commodity |
Egg washing grading line |
|
Product code |
302AS |
|
Model |
ZYL-JS1-D1-C |
|
Capacity |
10,000 eggs/hour |
|
Material |
Stainless steel |
|
Power |
11.48KW |
|
Voltage |
380V, 50HZ, 3-phase |
|
Dimension (L*W*H) |
11.55*3.9 *2.0 M |
|
Net weight |
1550KG |
|
Gross weight |
2240KG |
|
Function |
Accumulator, candling, sanitizer sprayer,
washing,drying, grading &counting,
manual collection table and optional
vacuum egg lifter and egg printer. |
* Power, net weight and gross weight are calculated according to the floor plan below.
ZENYER 302AS Egg washing grading line

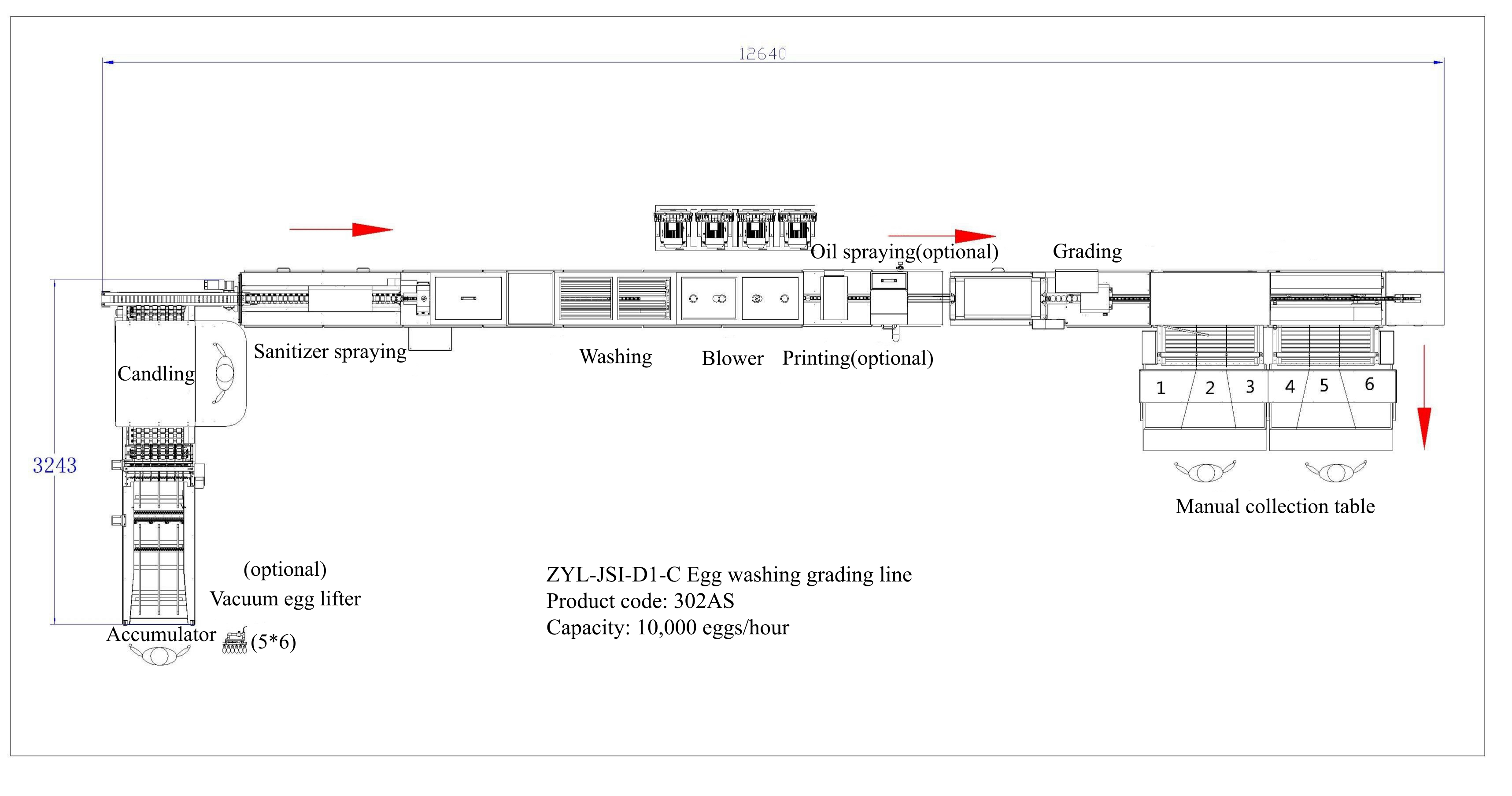

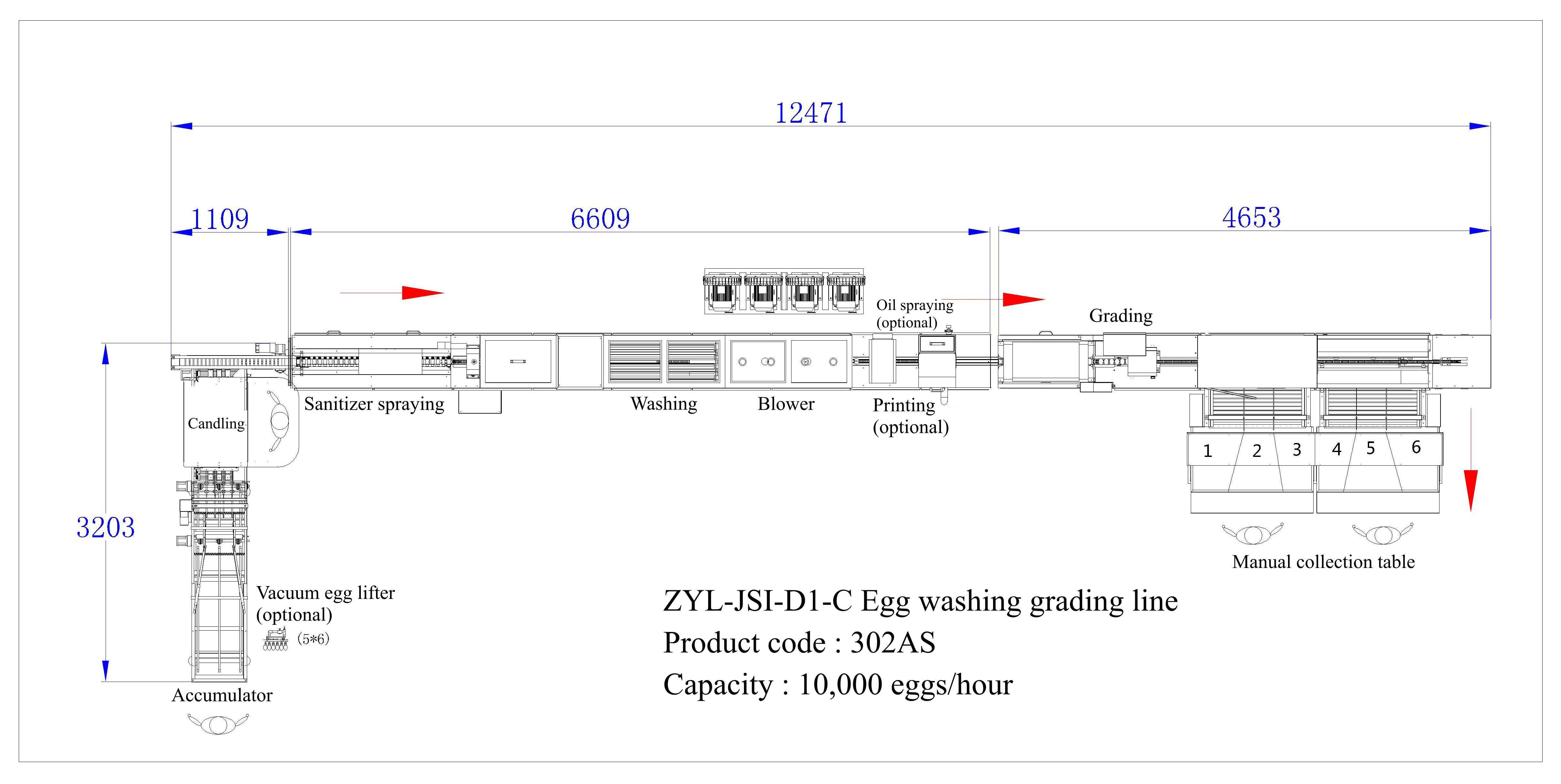

Floor plan
ZENYER 605A Accumulator
Zenyer 202A egg washer (with the 605A accumulator and manual packing lane)

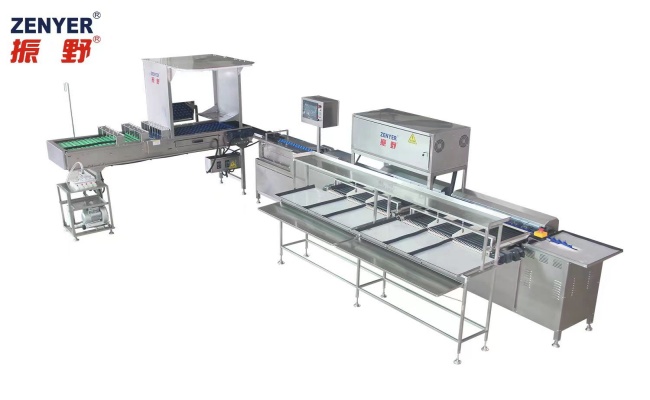

Zenyer 104B egg grader (with the 605A accumulator)
ZENYER 602 Vacuum egg lifter
ZENEYR 401H Egg printer matches on the 104B egg grader (for optional)
ZENYER single row Visual AI detector (optional)
For ZENYER 302AS egg washing grading line standard configuration: Only CNY292,500.00
consist of :
Option:
-
The 410X Visual AI Detector ：CNY163,800.00
(Pre-order)
302AS Egg washing grading line Brochure
