Egg grader

Name:ZYF-J3-L(R) Egg grader (102B)

Product Code:102B

Capacity:5,400 eggs/hour

Function:Grading,LED candling



Details


ZENYER 102B Egg Grader - Reliable Performance, Flexible Configuration

Engineered for superior performance, our stainless steel egg grader delivers precision grading and robust durability in one integrated system. Designed to maximize productivity while ensuring consistent quality, it's the ideal solution for modern egg processing operations.

Features:
  • High-Precision Grading
    Classifies eggs into 5 weight grades with ±1 gram accuracy and a capacity of 5,400 eggs/hour. Ensures consistent, market ready packaging that maximizes product value and meets premium quality standards.

  • Advanced Quality Control (Candling)
    Integrated candling booth with LED lights, a mirror, and a reversible cover to check for cracks, dirt, or internal defects.

  • Optional Accessories
    ----Vacuum egg lifter & Accumulator: use the 602 vacuum lifter to pick up 30 eggs, and the accumulator will automatically divide and feed them onto the machine.
    ----The 403H egg printer : Automatically printes traceability information (Like dates/brand.logo) onto the eggs.

  • Seamless Line integration
    Compatible with ZENYER  201A egg washer, the 604A accumulator and optional the 403H egg printer to form a complete ZENYER 301A egg washing grading line  with 5,000 eggs/hour capacity.

Commodity Egg grader
Product code 102B
Model ZYF-J3-L(R)
Capacity 5,400 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 5
Power 227W,3.6A
Voltage 110V/220V, 50/60HZ, Single phase
Dimension (L*W*H) 1.85*1.6 * 1.8 M
Net weight 190KG
Gross weight 270KG
Function Grading & LED candling


ZENYER 102B Egg grader

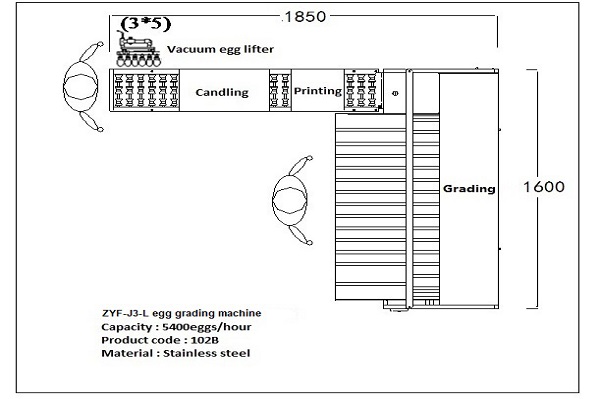

The feeding roller on the LEFT hand side (see above)

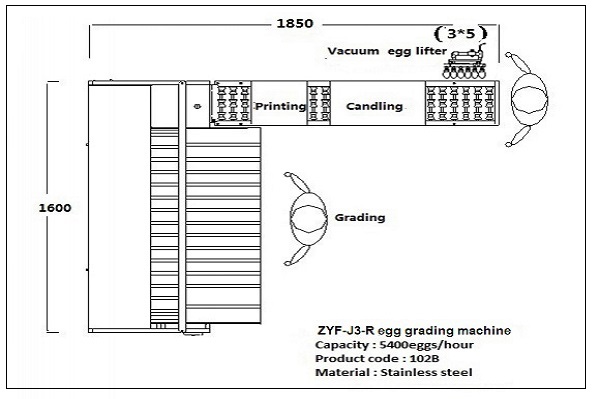

The feeding roller on the RIGHT hand side (see above)

The 3-row feeding roller

The 3-row
 LED candler with a candling cover and mirror

Egg weighing system

Egg grading


The 403H Egg printer matches on 102B egg grader (for optional)


ZYF-JS3-L egg grader (product code: 102BS), consist of the Zenyer  604A accumulator and the 102B egg grader and optional 602 vacuum egg lifter.

( Using the 602 vacuum egg lifter to transfer 30 eggs onto the 604A accumulator at a time,  through the  accumulator, eggs are divided into 3 lines and transferred into the 3-row feeding roller of 102B egg grader automatically )



Price for ZENYER 102B egg grader(LED candler included): Only CNY30,700.00

Option:

(In stock)



ZYF-J3-L(R) Egg grader (102B) Brochure
