Name：302AP Egg washing grading line
Product Code：302AP
Capacity：10,000 eggs/hour
Function：Candling,washing & drying,grading & counting, auto packing
Details
ZENYER 302AP Egg Washing & Grading Line – Features & Benefits
-
Durable Stainless Steel Construction
Made of stainless steel for better durability, corrosion resistance and hygiene, ensuring reliable long-term operation.
-
Fully Integrated Washing & Grading Solution
ZENYER 302AP egg washing grading line is comprised of the
605AS accumulator, 202A egg washer main machine and the
104AP egg grader main machine with a capacity of 10,000 eggs/hour.
-
Comprehensive Processing Functions
Includes egg accumulator & candling, sanitizer sprayer, brush washing and drying, orientation, egg grading & counting, auto-packer and manual packing functions
Optional upgrades include:
602 vacuum egg lifter for improved loading efficiency
401H egg printer for date coding and traceability
UV Disinfection for enhanced food safety
-
Clear & Simple Operation Panel
The 202A egg washer main machine is equipped a free standing control panel, and the 104AP egg grader main machine has a color
touchscreen control panel, they are interlock controlled with each other for safety reasons.
-
Enhanced Candling Inspection
The Zenyer 605AS accumulator has a candling booth, you can check for cracked, dirty or otherwise unqualified eggs through the
lights by sight, and manually take them out, a candling cover and a mirror for better candling results.
-
Excellent cleaning and drying effect
This model of egg washer satisfied the egg cleaning and drying requirements very well.
Equipped with 4
auto-packers and 1 manual packing lane
Adopts two-step drop-set packing for precise egg positioning. Compatible with common packaging formats: 30-egg trays, 10-egg (2×5) cartons and 12-egg (2×6 / 2×2×3) cartons to satisfy varied market requirements.
The manual packing lane can pack up to
2 egg sizes simultaneously,
providing additional flexibility.
An available
Ultra-Violet disinfection system sanitizes eggshells for maximum food security.
-
Remote Monitoring & Diagnostics (Wi-Fi Ready PLC Control System)
Supplied with a Wi-Fi repeater, enabling remote monitoring and diagnostics via the internet. In the event of software-related issues, our service team can access the system remotely (with customer permission) to quickly troubleshoot and resolve problems, helping minimize downtime and maintain continuous, efficient operation.
|
Commodity |
Egg washing grading line |
|
Product code |
302AP |
|
Model |
ZYL-JS1-D1-4ZP |
|
Capacity |
10,000 eggs/hour |
|
Accurary |
±1 g |
|
Material |
Stainless steel |
|
Power |
15.29KW |
|
Voltage |
380V, 50HZ, 3-phase |
|
Dimension (L*W*H) |
15.71*4.43 *2.0 M |
|
Net weight |
2300KG |
|
Gross weight |
3300KG |
|
Function |
Accumulator & candling, sanitizer sprayer,washing,
drying , orientation, grading & counting, auto-packing,
manual packing lane . optional UV disinfection,vacuum
egg lifter and egg printer. |

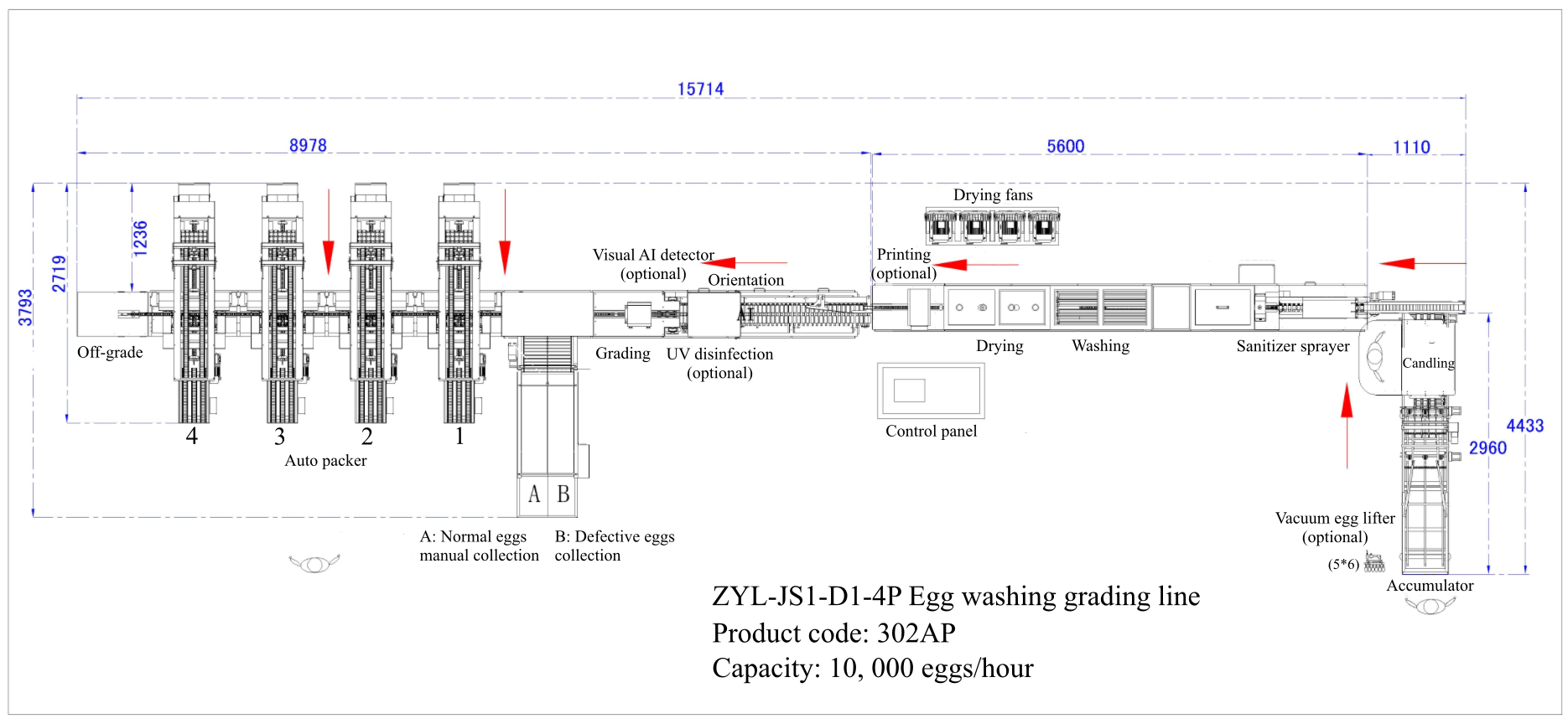

* Power, net weight and gross weight are calculated according to the floor plan below.

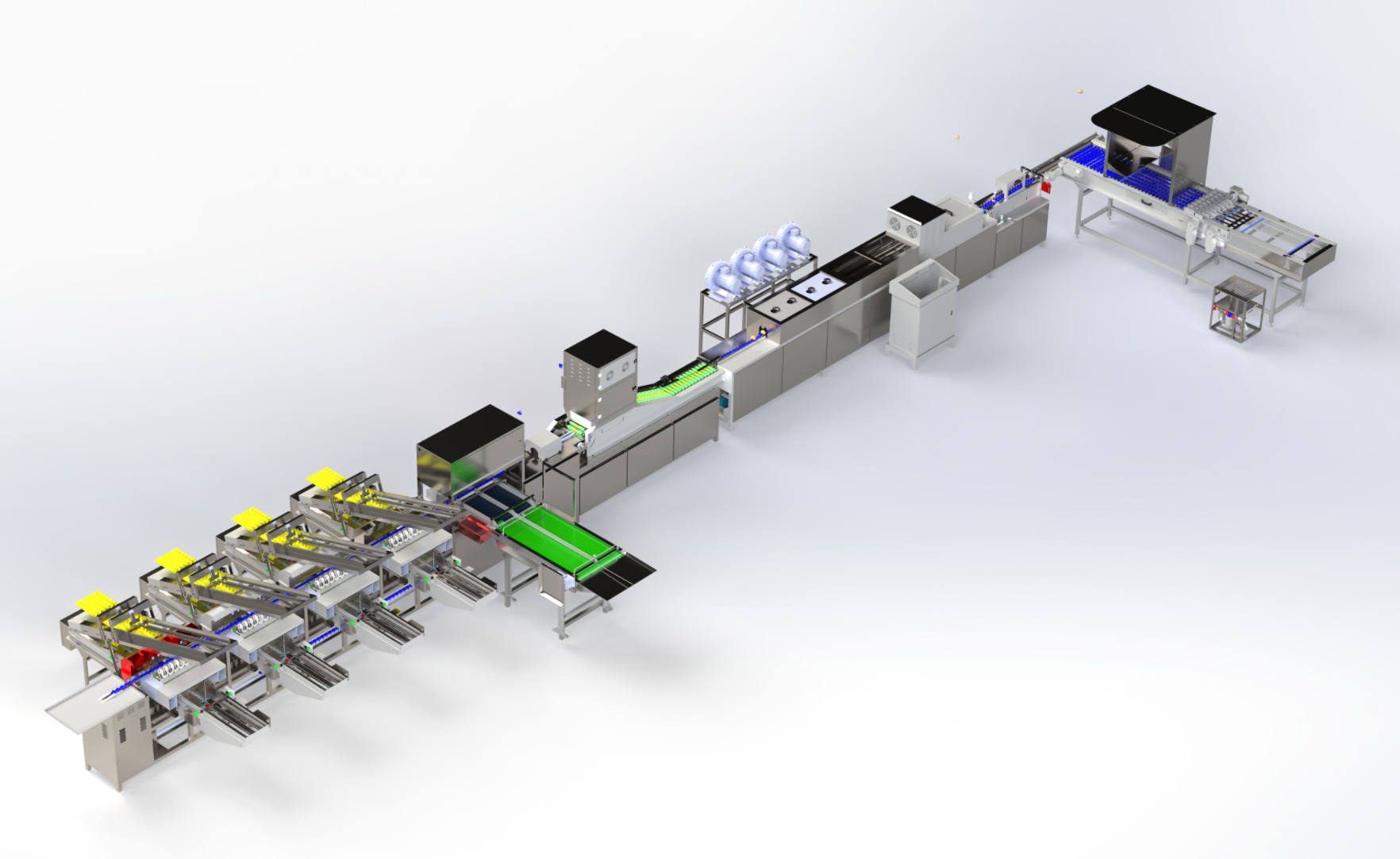

ZENYER 302A Egg washing grading line
Zenyer 202A egg washer (with the 605AS accumulator and manual collection conveyor)
Zenyer 104AP egg grader(with 4 auto packers and 1 manual packing lane)
ZENYER 605AS accumulator includes the Orientator which can direct 3 lines of eggs into 1 line
The 3-row candler with a candling cover and mirror
ZENYER 602 Vacuum egg lifter
ZENEYR 401H Egg printer
Color touch screen & physical button control panel for egg grader
Free standing control panel for egg washer
ZENYER Single row Visual AI detector (optional)
For ZENYER 302AP egg washing grading line standard configuration: Only CNY575,650.00
consist of :
Option:
-
Single row UV disinfection : CNY4,000.00
-
The 410X Visual AI Detector ：CNY163,800.00
(Pre-order)
302AP Egg washing grading line Brochure
