Egg washing grading line

Name:305A Egg washing grading line

Product Code:305A

Capacity:60,000 eggs/hour

Function:washing,drying,grading & counting,auto-packer



Details

ZENYER 305A Egg Washing & Grading Line – Features & Benefits

  • High-Grade Stainless Steel Structure

Made of strong stainless steel for great durability and hygiene, making it ideal for large-scale, continuous egg processing operations.

  • Ultra-High-Capacity Processing

The ZENYER 305A integrates two core machines:
ZENYER 205A Egg Washer
ZENYER 111 Egg Grader
Together, they deliver a fully automated washing and grading solution with an impressive capacity of 60,000 eggs per hour.

  • All-in-One Integrated Functions

Integrates egg accumulating, candling, sanitizer spraying, brush washing & drying, orientation, grading & counting, auto packing and manual packing.

  • Optional features include:

Automatic Egg Loader for maximum loading efficiency
UV Disinfection for enhanced food safety
Egg Printer for date coding and traceability

  • Intelligent & Safe Operation

The 205A egg washer is equipped with a free-standing control panel, and the 111 egg grader features a color touchscreen control panel. Both units are interlock controlled for safe and reliable operation.

  • Efficient & Flexible Egg Loading

Can be connected to a rod conveyor from the chicken shed or the Zenyer 615A automatic egg loader, greatly improving loading efficiency.

  • Excellent Cleaning & Drying Performance

This egg washer fully satisfies all egg cleaning and drying requirements with outstanding results.

  • Versatile Auto-Packing System

Auto-packers support 10, 12, 15, 18, and 30-egg cartons/trays.
Comes with 8 auto-packers (with the option to add more as required).
Each auto-packer handles one egg size, while the manual collection table can pack two to three sizes simultaneously for maximum flexibility.

Commodity Egg washing grading line
Product code 305A
Model ZYL-JS12-2HDS6-8Z
Capacity 60,000 eggs/hour
Material Stainless steel
Power * 55KW
Voltage 380V,50HZ,3-phase
Dimension (L*W*H) 24.12*12.14*2 MM
Net weight * 3070KG
Gross weight * 4490KG
Function Accumulator & candling ,sanitizer sprayer & washing & drying, accumulator & orientation ,  grading & counting, auto-packer, optional printing,auto egg loader
* Power, net weight and gross weight are calculated according to the floor plan below.

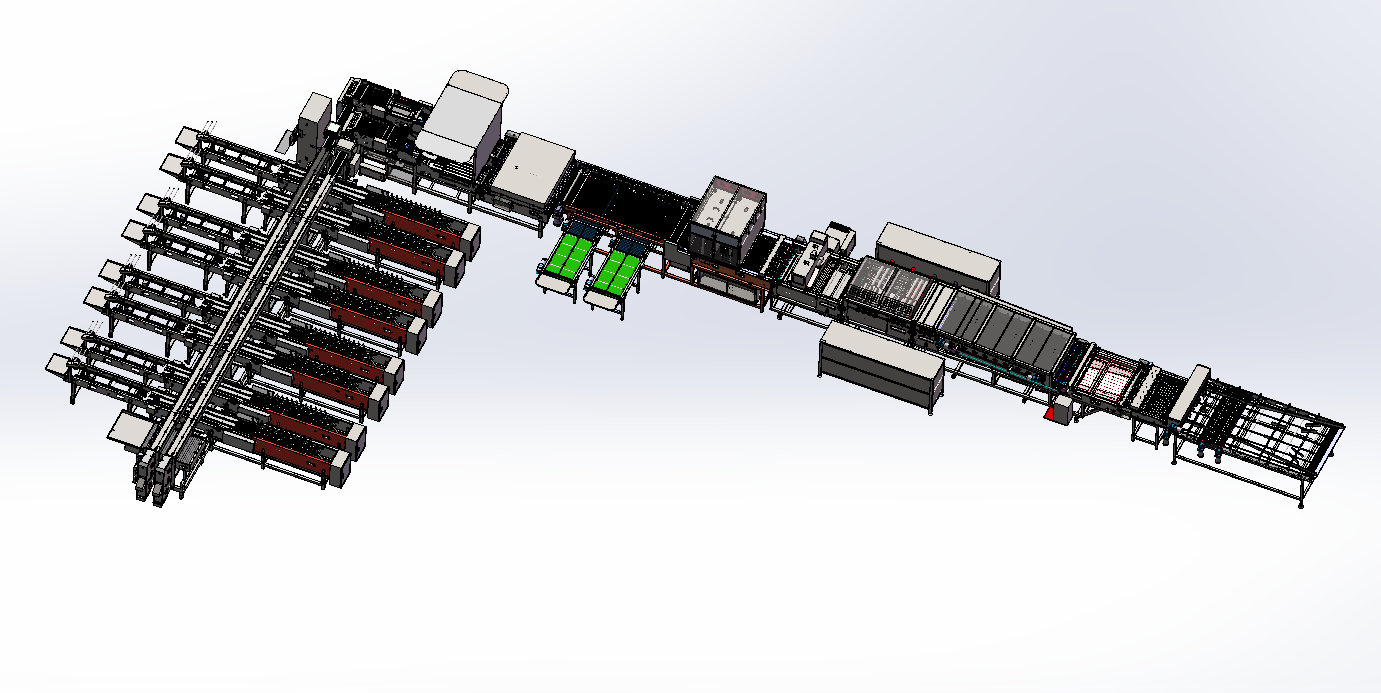

ZENYER 305A egg processing line with Visual AI Detector

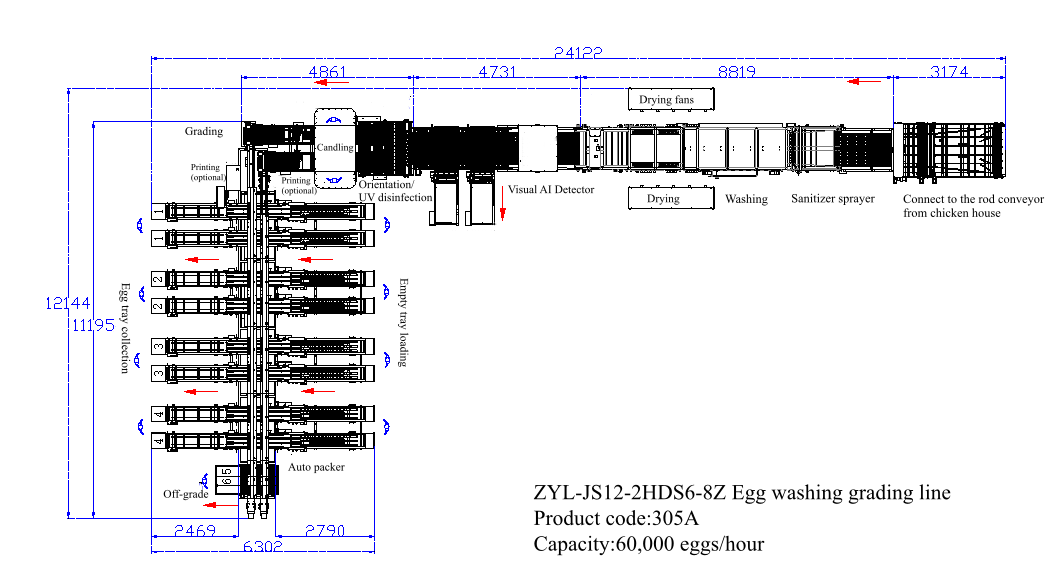

ZENYER 305A egg washing grading line with Visual AI Detector floor plan

 Zenyer 615A automatic egg loader (optional)

Auto empty tray de-nesting (optional)


ZENYER 12-row Visual AI detector (optional)
(Pre-order)


Price for ZENYER 305A Egg washing grading line : Only CNY1,469,400.00

Pre-order



305A Egg washing grading line Brochure
