Name：302A Egg processing line

Product Code：302A

Capacity：10,000eggs/hour

Function：Washing & drying, grading, auto-packer

Details

Features:

• Made of stainless steel for better durability, corrosion resistance and hygiene.

• ZENYER 302A egg processing line is comprised of the 605A accumulator, 202A main machine and the 104A egg grader, and optional the 602 vacuum egg lifter and 401H egg printer.

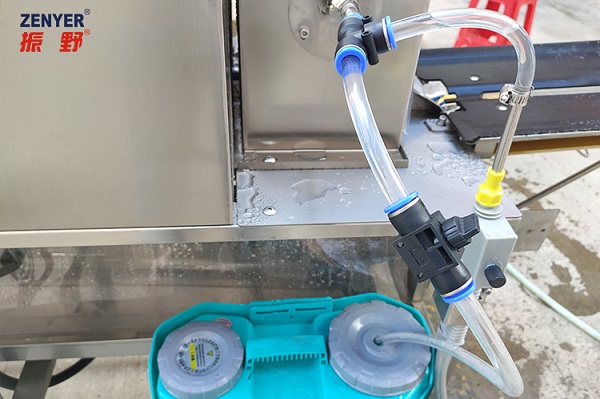

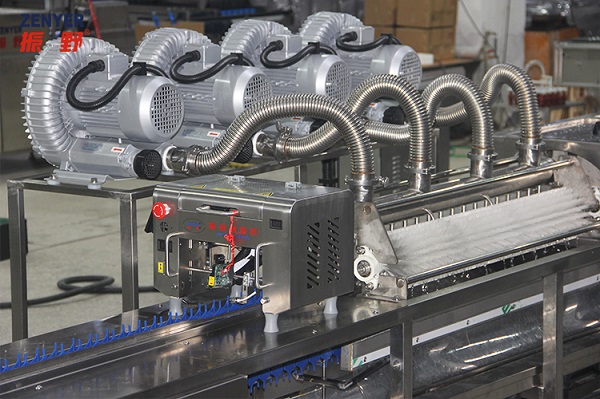

• Includes egg accumulator & candling, auto sanitizer spraying, brush washing and drying, auto head turning, egg grading & counting, auto-packer, manual packing lane and optional vacuum egg lifter and egg printer with a capacity of 10,000 eggs/hour.

• The egg grader is equipped with color touchscreen PLC and can sort eggs up to 7 sizes.

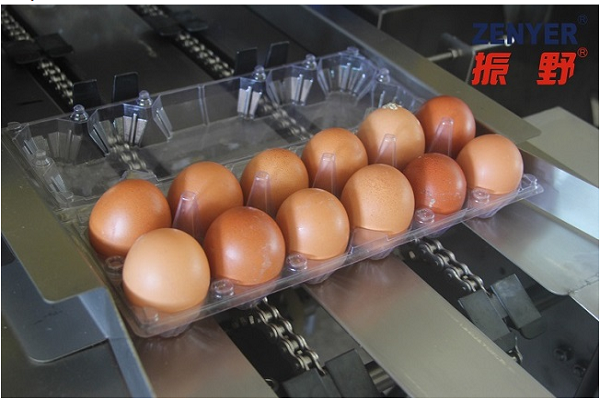

• Auto-packer can pack the eggs into the 10, 12,15,18,30 egg cartons /trays automatically.

• Can be connected to a rod conveyor connecting to a chicken shed.

• Electronic egg weighing and packing system which can set grading sizes, calibrate grading accuracy, accumulate quantities, sound an alarm and automatically diagnose any mafunctions.

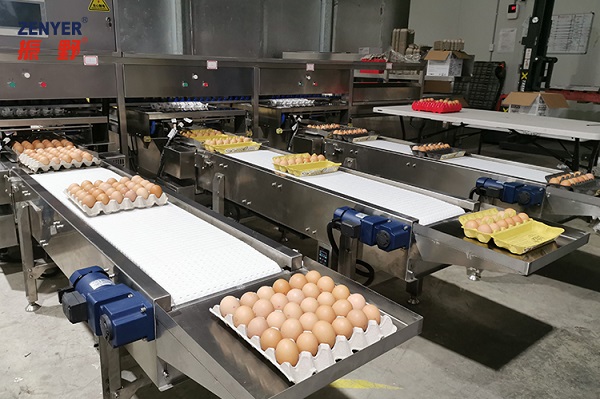

• Auto-packer and manual packing lane can be assigned to any size of eggs, you can choose 1, 2 or 3 auto-packer(s) according to your requirement.

• One auto-packer can only pack one size, and the manual packing lane can pack a maximum of 2 sizes.

Commodity	Egg processing line
Product code	302A
Model	ZYL-JS1-D1-3ZP
Capacity	10,000 eggs/hour
Accurary	±1 g
Material	Stainless steel
Power	15.52KW
Voltage	380V, 50HZ, 3-phase
Dimension (L*W*H)	14.71*5.79 *2.0 M
Net weight	2920KG
Gross weight	4300KG
Function	Accumulator & candling, sanitizer sprayer,washing, drying , head turning, grading & counting, auto-packer, manual packing lane . optional vacuum egg lifter and egg printer.

* Power, net weight and gross weight are calculated according to the floor plan below.

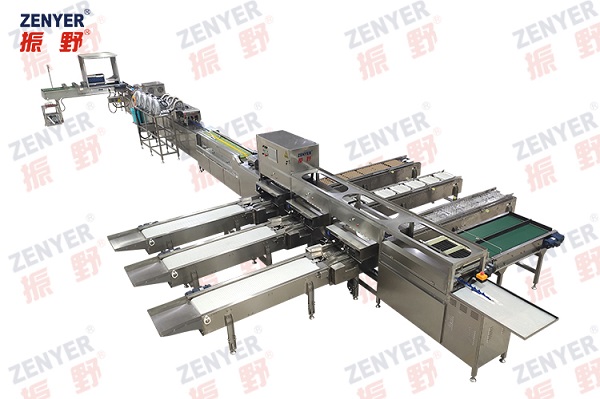

ZENYER 302A Egg processing line

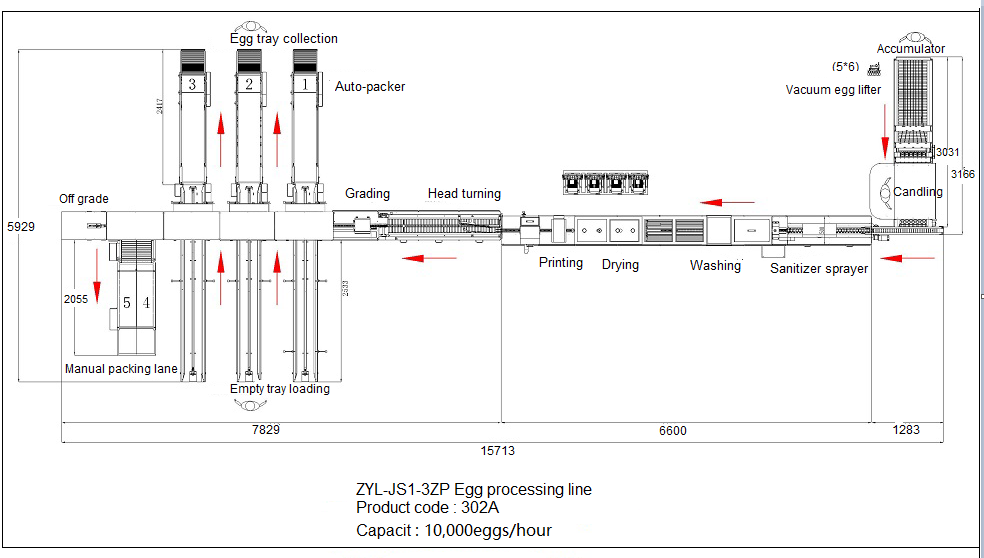

302A Egg processing line floor plan-right side

302A Egg processing line floor plan-left side

ZENYER 605A accumulator

Zenyer 202A egg washer (with the 605A accumulator and manual packing lane)

Zenyer 104A egg grader(with 2 auto packers and 1 manual packing lane)


ZENYER 602 Vacuum egg lifter

ZENEYR 401H Egg printer

Color touch screen & physical button control panel for egg grader

Free standing control panel for egg washer

For ZENYER 302A egg processing line standard configuration: Only CNY527,600.00
consist of :

• The 605A accumulator  ( Candling included)

• The 202A egg washer (Egg washing & drying included)

• The 104A egg grader  (Grading & auto-packer (3 units) & Manual packing lane (1 unit) )

Option:

• The 602 vacumm egg lifter : CNY8,750.00

• The 401H egg printer : CNY22,000.00

(Pre-order)

302A Egg processing line Brochure
