Egg grader

Name：ZYF-JS3-L(R) Egg grader (102BS)

Product Code：102BS

Capacity：5,400 eggs/hour

Function：accumulator, grading & LED candling and optional printer



Details

ZENYER 102BS  Egg Grading & Accumulating Line

The ZENYER 102BS is a pre-assembled and efficient solution, integrating the 102B egg grader with the 604A accumulator. Crafted from high-quality stainless steel, it delivers superior durability and upholds strict hygiene standards for modern egg processing facilities.

Features:

  • High-Precision grading
    Classifies eggs into 5 weight grades with ±1 gram accuracy and a capacity of 5,400 eggs/hour.  Ensuring precise categorization for optimized packaging and market distribution.

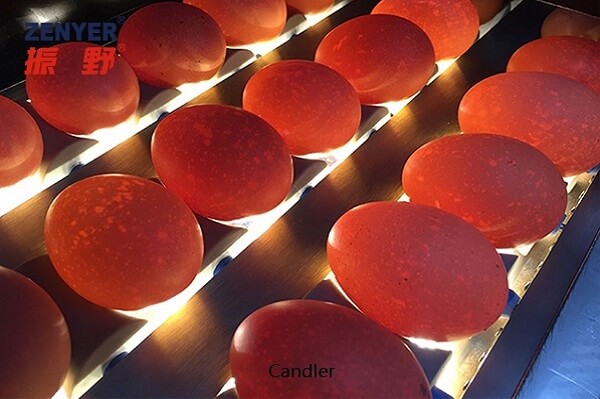

  • Advanced Quality control (Candling)
    An integrated candling booth, featuring bright LED lights, a protective cover, and an inspection mirror, allows operators to clearly identify and manually remove cracked, dirty, or defective eggs, guaranteeing that only top-quality products proceed to grading and packaging.

  • Automated Three-Lane Infeed
    The built-in accumulator automatically receives eggs and evenly distributes them into three lanes, ensuring a smooth and continuous supply to the grader's feeding roller for uninterrupted, high-volume operation.

  • Flexible Layout Options
    Designed to adapt to your layout, the system is available in models with left or right-side infeed. It can be optionally enhanced with the 602 vacuum egg lifter and the 403H egg printer for extended functionality.

  • Seamless System Integration
    The unit is engineered to combine seamlessly with the ZENYER 201A egg washer, forming the complete ZENYER 301A egg washing grading line with a total capacity of 5,000 eggs per hour.

Commodity Egg grader
Product code 102BS
Model ZYF-JS3-L(R)
Capacity 5,400 eggs/hour
Material Stainless steel
Accuracy ±1g
Grade 5
Power 317W
Voltage 110/220V, 50/60HZ, Single phase
Dimension (L*W*H) 2.75 * 1.6 * 1.8 M
Net weight 230KG
Gross weight 340KG
Function accumulator,grading & LED candling
and optional vacuum loading and printer

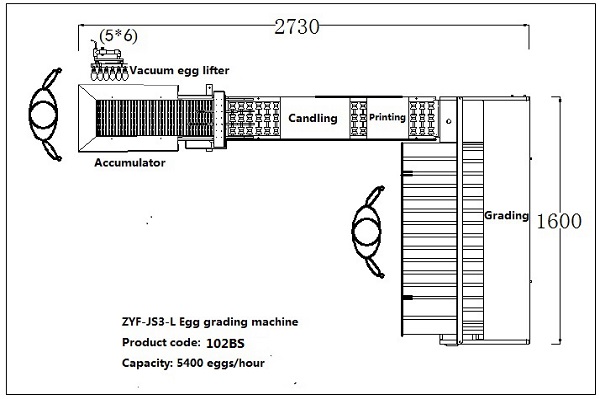

ZENYER 102BS Egg grader

The feeding roller on the LEFT hand side (see above)

The feeding roller on the RIGHT hand side (see above)

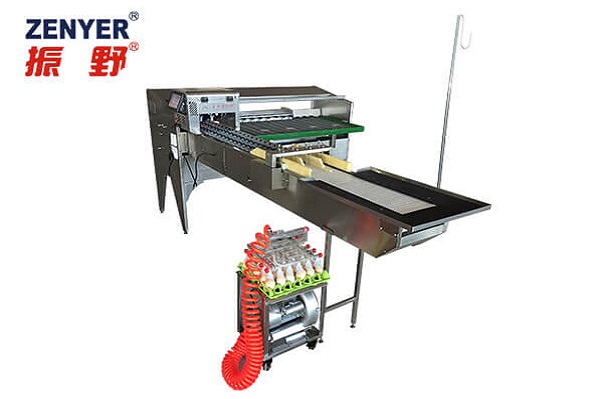

ZENYER 102B Egg grader

ZENYER 604A accumulator

ZENYER 602 vacuum egg lifter for optional

Load 30 eggs per time on the accumulator via vacuum egg lifter

3-row divider

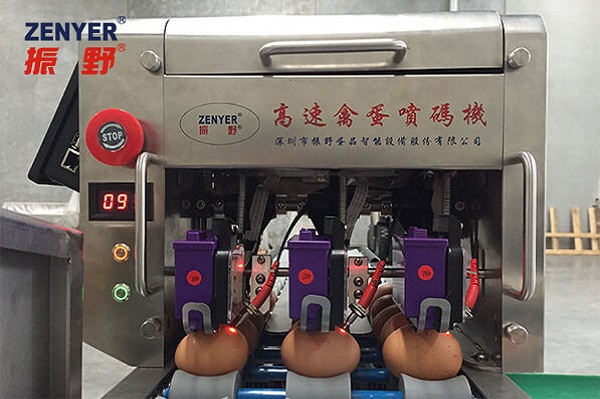

ZENYER 403H Egg printer for optional

Price for ZENYER 102BS egg grader standard configuration: Only CNY41,400.00
Consist of :

Option： (In stock)



ZYF-JS3-L(R) Egg grader (102BS) Brochure
